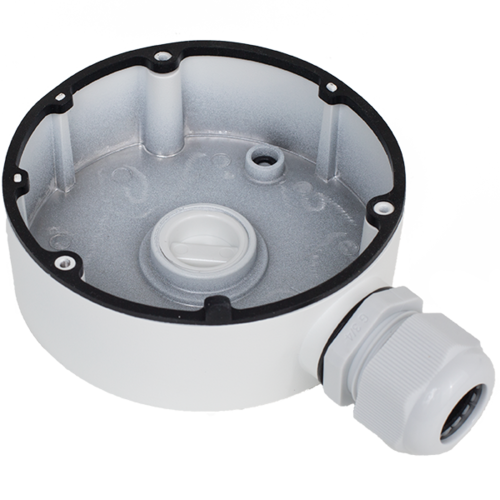

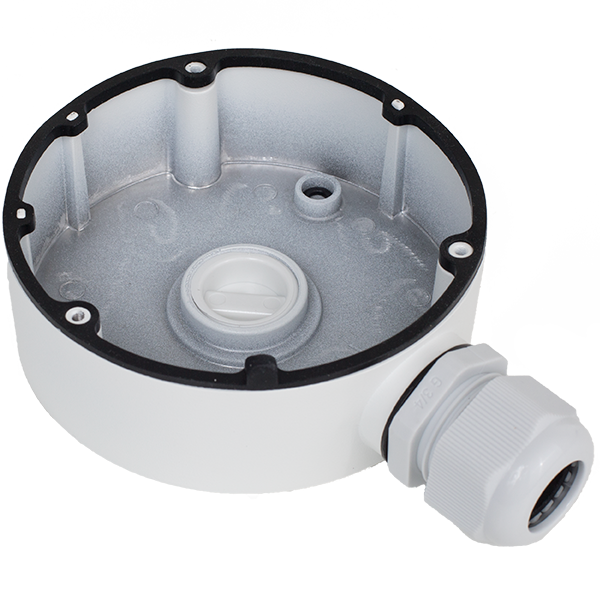

LTS LTB347 Camera Base Extender with Conduit Entry for Dome Cameras

LTS LTB347 Camera Base Extender (Dome) with Conduit Entry

The LTS LTB347 is a purpose-built aluminium alloy base extender designed to pair with compatible LTS Platinum dome cameras. It raises the camera off the mounting surface and provides a dedicated conduit entry point, allowing installers to route power and data cabling neatly behind the wall or ceiling rather than leaving cable runs exposed. This makes it a practical accessory for both new installs and retrofits where a cleaner, more professional finish is required.

Key Features

• Aluminium alloy construction for a rigid, corrosion-resistant base that supports the weight of compatible dome cameras.
• Conduit entry design that allows cabling to be run through the wall or ceiling instead of being exposed on the surface.
• Compatible with LTS CMIP 73xx and CMIP 74xx series IP dome cameras.
• Compatible with LTS CMHD 73xx and CMHD 74xx series TVI dome cameras.
• Overall footprint of approximately 160mm diameter x 55mm height, matched to suit the base of compatible LTS dome housings.
• White finish designed to blend in visually with LTS dome camera bodies and ceiling surfaces.
• Suitable for both indoor and outdoor mounting locations.
• Straightforward wall or ceiling fixing using standard mounting screws.
• Part of the broader LTS Platinum camera bracket range, allowing consistent accessory sourcing across an LTS camera fleet.

Typical Use Cases

The LTB347 is best suited to commercial and residential CCTV installations where a dome camera needs to be mounted directly onto a wall or ceiling but the cabling must be concealed for a tidy, tamper-resistant finish. It is commonly used in retail stores, offices, warehouses, and multi-dwelling residential sites where an existing conduit run needs to terminate cleanly at the camera base, or where installers want to avoid visible cable clutter beneath a dome camera.

What's in the Box

• 1 x LTS LTB347 aluminium alloy base extender
• Mounting screws and fixings
• Basic installation instructions

Frequently Asked Questions

Q: Will the LTB347 fit any LTS dome camera?
A: No. It is designed specifically for compatible LTS CMIP 73xx/74xx IP dome cameras and CMHD 73xx/74xx TVI dome cameras. Check your camera model against the LTS bracket compatibility chart before ordering.

Q: Can the LTB347 be used outdoors?
A: Yes, the aluminium alloy build is suitable for both indoor and outdoor installations when paired with a compatible weather-rated dome camera.

Q: Does the LTB347 include a back box for concealed cabling?
A: It provides a conduit entry point for cable routing through the mounting surface, making it ideal where cabling is already run through a wall or ceiling conduit.

Additional Resources

• LTS Camera Brackets Summary Chart
