LTS LTB301-C Aluminium Wall Mount Bracket with 130mm Head Unit for Dome Cameras

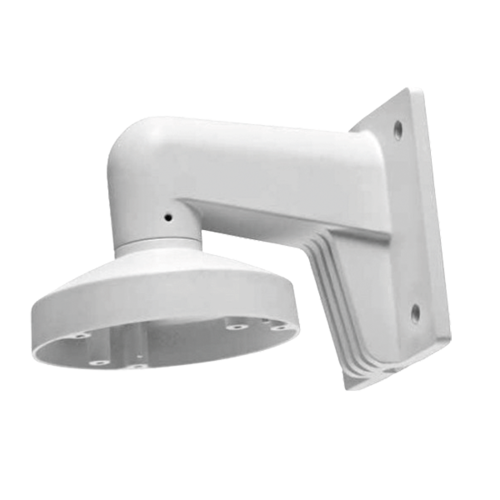

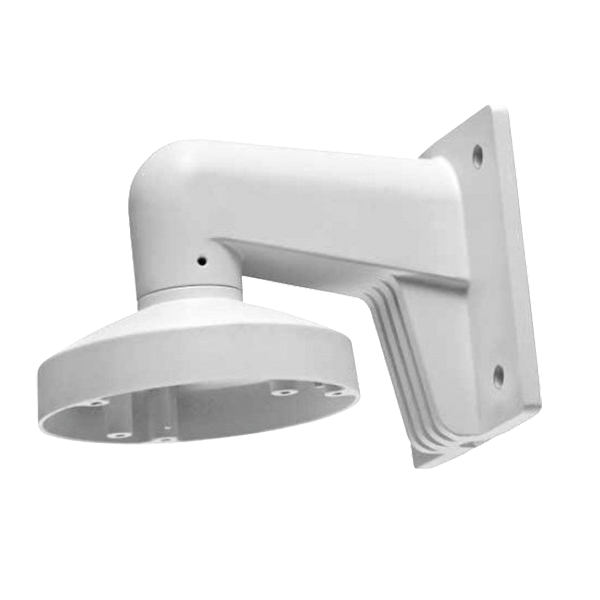

LTS LTB301-C Wall Mount Bracket with 130mm Head Unit

The LTS LTB301-C is a purpose-built aluminium wall mounting bracket designed for dome-style IP and HD-TVI cameras from the LTS Platinum and PRO-X ranges. Featuring a discrete cable entry point and an integrated 130mm head unit, this bracket allows installers to run camera cabling neatly through the wall or conduit, keeping the installation tidy and protected from the elements. It is the current replacement part for the earlier LTB301 bracket, offering the same reliable mounting performance with an updated head unit design.

Key Features

• Durable aluminium alloy construction for long-term outdoor and indoor use
• Discrete cable entry design hides wiring for a clean, professional finish
• Integrated 130mm head unit matches directly to compatible dome camera bases
• Compact footprint with a base diameter of approximately 130mm and 65mm height
• Overall bracket dimensions of approximately 182mm (L) x 130mm (W) x 120mm (H)
• Weather-resistant finish suitable for outdoor wall installations
• Simple screw-mount installation with pre-formed cable channel
• Compatible with a wide range of LTS Platinum IP and TVI dome cameras

Compatible Camera Series

The LTB301-C is designed to suit LTS IP dome cameras in the CMIP10, CMIP30, CMIP33 and CMIP38 series, as well as HD-TVI dome cameras in the CMHT17 series. Always confirm the exact camera model number against the current LTS compatibility chart before ordering, as base dimensions can vary slightly between camera generations.

Typical Use Case

This bracket is ideal for installers upgrading or replacing wall-mounted dome cameras on shopfronts, warehouses, offices and residential exteriors where a discreet cable run is required. Because the cable entry is hidden behind the head unit rather than exposed on the wall surface, the LTB301-C helps reduce tampering risk and improves the overall tidiness of the installation, making it a popular choice for both new builds and camera replacement projects.

What's in the Box

• 1 x LTB301-C wall mount bracket with 130mm head unit
• Mounting screws and wall anchors
• Cable entry cover plate

Frequently Asked Questions

Is the LTB301-C a direct replacement for the LTB301?
Yes, the LTB301-C is the current production bracket that supersedes the discontinued LTB301, retaining the same general mounting footprint while updating the head unit design.

Does this bracket work with any dome camera brand?
It is engineered specifically for LTS dome camera models in the CMIP10/30/33/38 and CMHT17 series; compatibility with third-party cameras is not guaranteed and should be checked against base dimensions.

Can the LTB301-C be used outdoors?
Yes, its aluminium alloy construction and weather-resistant design make it suitable for both indoor and outdoor wall installations.
