LTS LTB388 Universal Vertical Pole Mount for Platinum IP Cameras

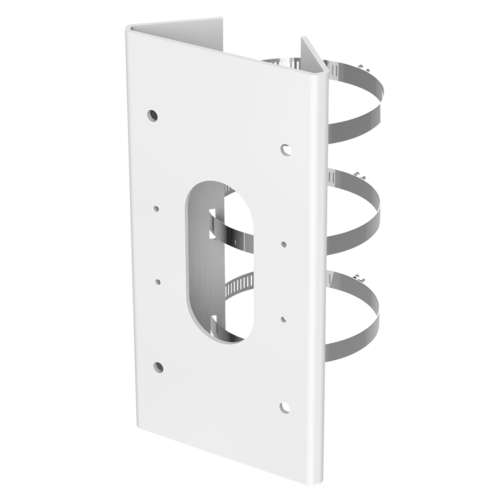

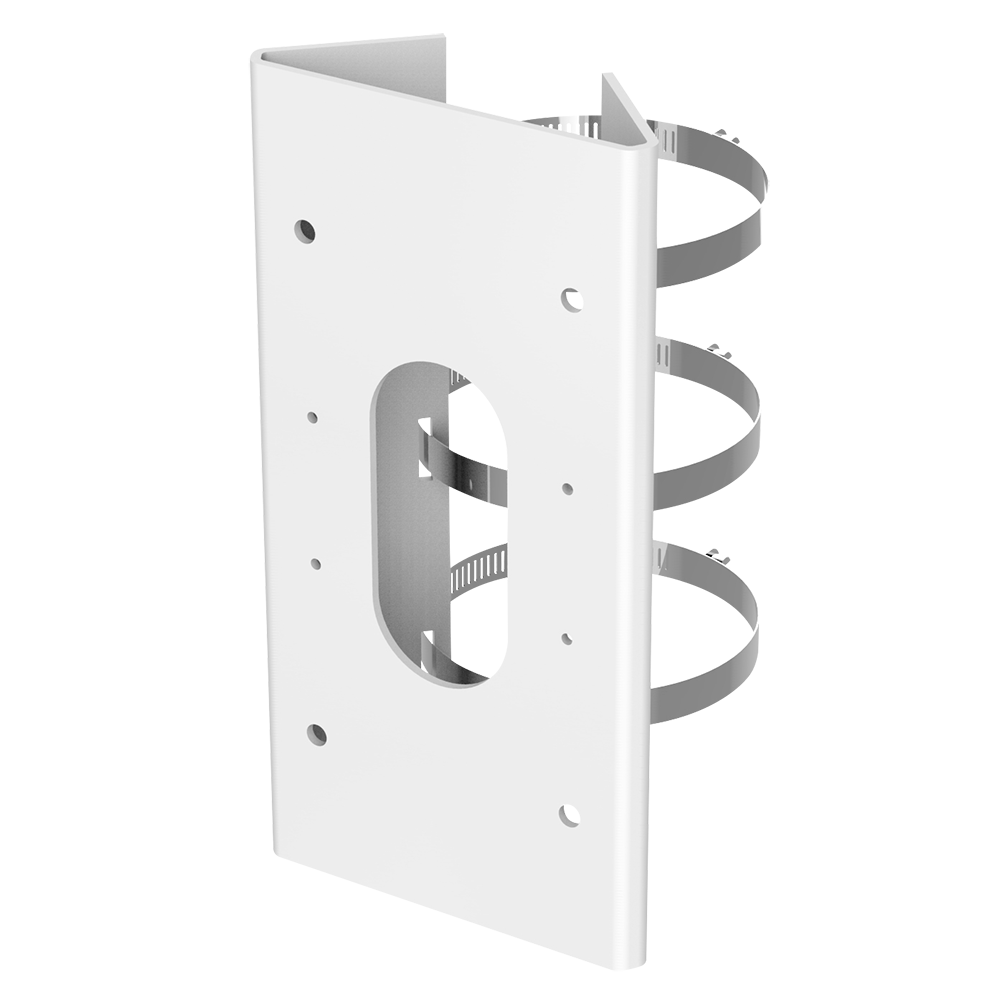

LTS LTB388 Universal Vertical Pole Mount

The LTS LTB388 is a purpose-built vertical pole mounting bracket designed to securely install compatible LTS Platinum IP dome cameras onto round poles. Constructed from durable aluminium alloy, this universal clamp-style mount adapts to a wide range of pole diameters, making it an ideal accessory for car parks, perimeter fencing, street poles, and other outdoor surveillance applications where wall or ceiling mounting isn't practical.

Key Features

• Aluminium alloy construction for long-term corrosion resistance and outdoor durability
• Universal pole clamp design that fits pole diameters from approximately 67mm to 127mm
• Compact footprint measuring 250mm (L) x 127mm (W) x 46mm (D)
• Lightweight yet sturdy, weighing approximately 1.2kg to minimise stress on the mounting pole
• Compatible with LTS Platinum IP dome camera series including CMIP38xx, CMIP78xx, and CMIP98xx models
• White finish designed to blend with common camera housings and outdoor infrastructure
• Simple bracket-and-clamp assembly for straightforward field installation without specialised tools
• Indoor/outdoor rated accessory suited to a variety of installation environments

Reliable Pole Mounting for Platinum Dome Cameras

Installers and integrators use the LTB388 whenever a compatible LTS Platinum dome camera needs to be positioned on a street pole, boundary fence post, or freestanding column rather than a flat wall or ceiling. The clamp mechanism wraps around the pole and locks the camera bracket in place, allowing the dome to be angled for optimal coverage of car parks, loading docks, warehouse yards, and other open-area sites where elevated, unobstructed sightlines are required.

What's in the Box

• LTB388 vertical pole mount bracket assembly
• Pole clamp hardware and mounting screws
• Installation instructions

Frequently Asked Questions

Which cameras is the LTB388 compatible with?
It is designed for LTS Platinum IP dome camera series CMIP38xx, CMIP78xx, and CMIP98xx. Always confirm compatibility against the LTS Camera Bracket Summary Chart before ordering.

What size poles does the LTB388 fit?
The universal clamp accommodates round poles with a diameter of roughly 67mm to 127mm, covering most standard light poles and fence posts.

Is the LTB388 suitable for outdoor use?
Yes, its aluminium alloy construction is designed to withstand outdoor exposure, making it suitable for external pole-mounted camera installations.

Additional Resources

• LTS Camera Brackets Summary Chart
