LTS Platinum Corner Mount Wall Bracket for 4K PTZ Dome Cameras

LTS Platinum Corner Mount Wall Bracket for 4K PTZ Dome Cameras (LTB688)

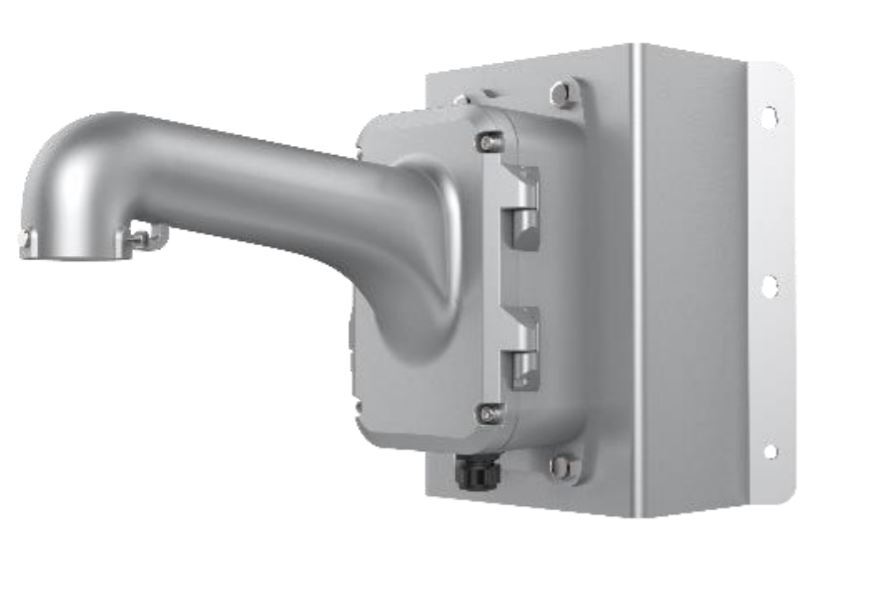

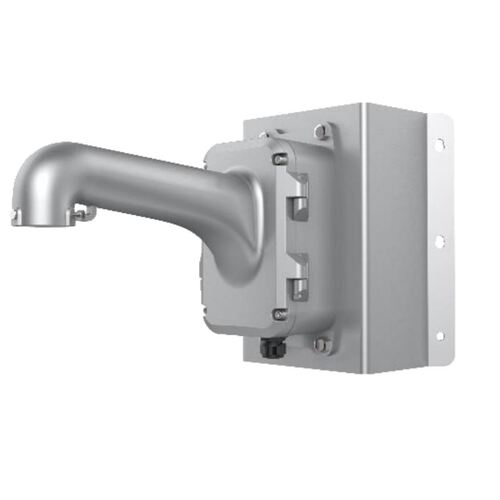

The LTB688 is a purpose-built corner mount solution from the LTS Platinum accessory range, designed to securely position 4K PTZ speed dome cameras such as the LTS Platinum PTZIP688X36 series on the corner of a building or structure. Combining a rigid aluminium bracket arm with an integrated cable management enclosure, it lets installers run and conceal power and network cabling neatly while giving the dome camera an unobstructed, wide field of view across two adjoining walls.

Key Features

• Corner installation design that spans two adjoining exterior walls for improved coverage angles compared to a flat wall mount
• Built-in cable management/junction box to hide and protect cable connections from weather and tampering
• Durable aluminium alloy construction with a weatherproof surface finish suited to outdoor environments
• Compact footprint with total bracket dimensions of approximately 542mm (L) x 200mm (W) x 256mm (H)
• Engineered specifically for LTS Platinum 4K PTZ dome cameras, including the PTZIP688X36 / LTPTZIP688NW-X36 series
• Cross-compatible footprint with common corner junction boxes in the DS-1604ZJ-BOX-CORNER-P style, simplifying replacement or upgrade projects
• Bottom and rear cable outlet options for flexible routing depending on the installation site
• Reinforced mounting points to support the weight and vibration load of a motorised PTZ dome

Typical Applications

This bracket is ideal for installers mounting a 4K PTZ dome camera on the external corner of a warehouse, retail building, car park structure, or perimeter wall where a standard flat wall mount would restrict the camera's pan range. Because it includes cable concealment, it also suits sites where a tidy, tamper-resistant cable entry point is required for compliance or aesthetic reasons.

What's in the Box

• LTB688 corner mount bracket arm
• Integrated cable management/junction enclosure
• Mounting screws and wall anchors
• Installation guide

Note: The PTZ dome camera and any PoE injector or power supply are sold separately.

Frequently Asked Questions

Which cameras does the LTB688 fit?
It is designed for LTS Platinum 4K PTZ dome cameras such as the PTZIP688X36 / LTPTZIP688NW-X36. Always check the current LTS bracket compatibility chart before ordering to confirm fitment with your specific camera model.

Is the PTZ camera included with this bracket?
No. The LTB688 is a mounting accessory only; the PTZ dome camera, PoE injector, and network cabling are purchased separately.

Can this bracket be installed outdoors?
Yes. Its aluminium alloy build and weather-resistant coating make it suitable for both indoor and outdoor corner mounting applications.

Additional Resources

• LTS Camera Brackets Summary Chart
