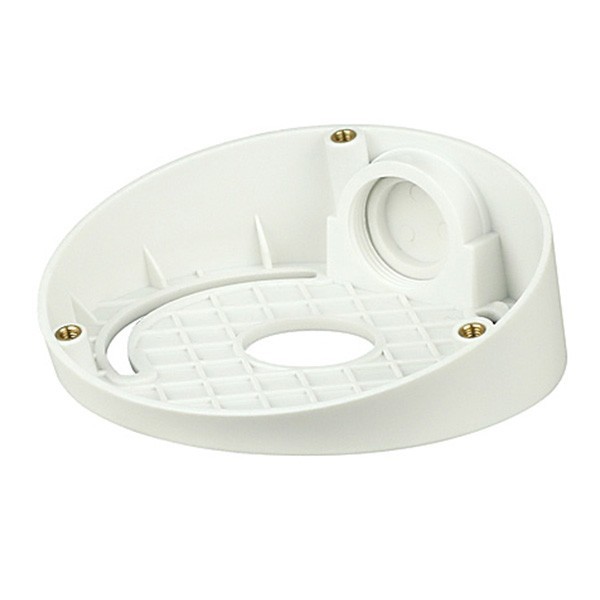

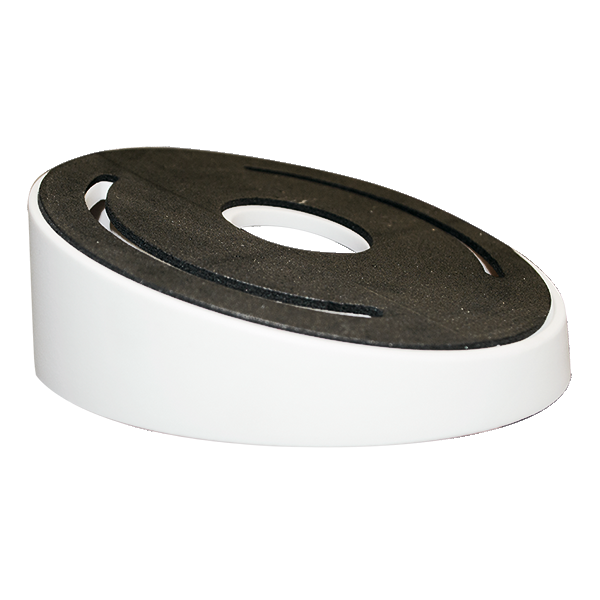

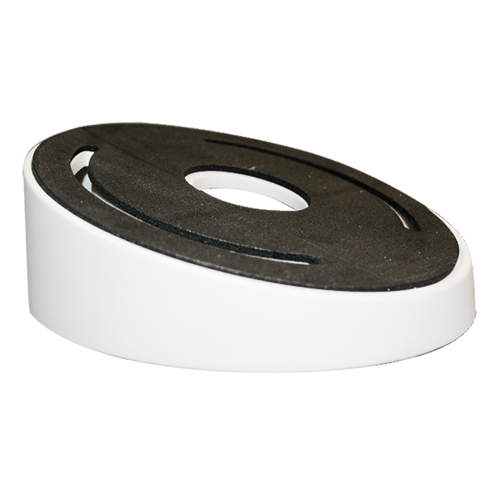

LTS LTB349 Angled Ceiling Mount Bracket for Platinum Mini Dome Cameras

LTS LTB349 Angled Ceiling Mount Bracket

The LTS LTB349 is a purpose-built angled ceiling mount designed to house and support compatible LTS Platinum mini dome cameras on flat or angled ceiling surfaces. Constructed from durable ABS plastic, this low-profile bracket allows installers to achieve a clean, professional-looking camera installation while providing a small amount of downward or angled adjustment to help aim the camera towards the desired field of view. It is a practical accessory for retail stores, offices, warehouses, and residential ceilings where a discreet dome camera housing is required.

Key Features

• Angled ceiling design that positions compatible mini dome cameras at a slight downward angle for improved coverage
• Lightweight ABS plastic construction for easy handling and straightforward installation
• Compact footprint measuring approximately 101mm in diameter by 39mm in height, keeping the housing unobtrusive on the ceiling
• Light overall weight of around 200g, reducing load on ceiling fixings
• Wide camera compatibility across several LTS Platinum mini dome camera series
• Simple screw-mount installation suited to plasterboard, timber, or masonry ceilings with appropriate fixings
• Indoor-oriented design ideal for concealing cabling and connections behind the camera base
• Cost-effective accessory that extends the mounting flexibility of existing Platinum camera stock

Typical Applications

The LTB349 is commonly selected by installers who need to mount a compatible LTS Platinum mini dome camera on a ceiling rather than a wall, such as in corridors, reception areas, and open-plan offices. Because it is designed specifically for the CMIP/CMHD mini dome range, it pairs well with existing LTS Platinum camera installations, allowing integrators to standardise on a single bracket type across multiple sites and reduce spare-parts complexity.

Compatibility

• CMHD7422 series
• CMIP3412xx, CMIP3422xx, CMIP3432xx series
• CMIP7412xx, CMIP7422xx, CMIP7432xx, CMIP7442xx series

What's in the Box

• 1 x LTB349 angled ceiling mount bracket/housing
• Mounting screws and fixing hardware

Frequently Asked Questions

Is the LTB349 compatible with all LTS Platinum dome cameras?
No, it is designed specifically for select CMIP and CMHD mini dome camera series. Always check the camera model number against the compatibility list before ordering.

What is the LTB349 made from?
It is manufactured from ABS plastic, offering a lightweight yet durable housing suitable for standard indoor ceiling installations.

Can this bracket be used outdoors?
It is primarily intended for indoor ceiling applications; for outdoor or exposed locations, consider an LTS bracket rated for outdoor use.

Additional Resources

• LTS Camera Brackets Summary Chart
