LTS 130mm Camera Mounting Base & Plate with EPDM Gaskets (LTB130-H)

LTS 130mm Camera Mounting Base & Plate (LTB130-H)

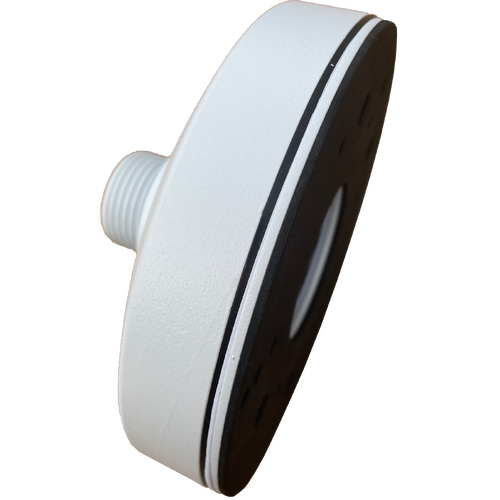

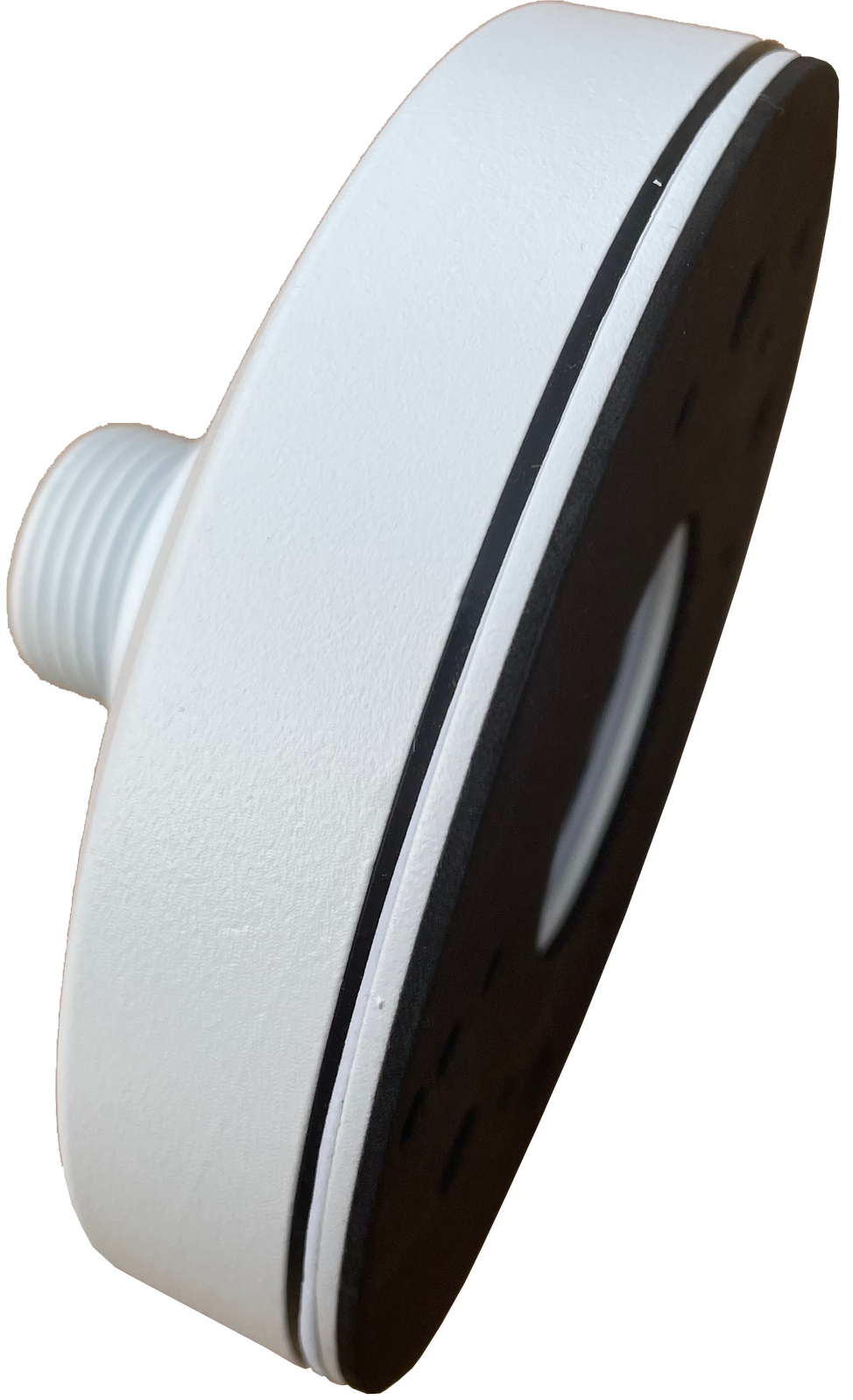

The LTS LTB130-H is a purpose-built 130mm base-plate head unit designed to give turret and dome style IP and TVI cameras a clean, weather-sealed mounting foundation. Supplied with two EPDM rubber gaskets, this base plate creates a secure seal between the camera housing and the mounting surface, helping to keep moisture and dust out of the cable entry point on both indoor and outdoor installations. It is part of the LTS Platinum camera bracket range and is engineered to work seamlessly with a wide selection of LTS turret and dome cameras.

Key Features

• 130mm diameter base plate sized to match the mounting footprint of compatible LTS turret and dome camera housings
• Compact overall profile with a base height of approximately 65mm, keeping the installed camera low-profile against the mounting surface
• Includes two EPDM rubber gaskets for a weatherproof seal between the camera base and the wall or ceiling surface
• Compatible with multiple CMIP series IP camera turret/dome models, including the CMIP 10, CMIP 30, CMIP 33 and CMIP 38 ranges
• Also compatible with CMHT 17 series TVI turret cameras
• Durable metal construction designed to support the weight and vibration loads of outdoor security cameras
• Pre-drilled mounting holes for straightforward installation onto walls, soffits or junction boxes
• Part of the broader LTS Camera Bracket ecosystem, allowing integration with wall brackets, pole mounts and junction boxes for flexible install configurations
• Suits both new camera installations and retrofits where an existing base plate needs replacing

Typical Applications

The LTB130-H base plate is most commonly used by installers fitting LTS Platinum and PRO-X turret or dome cameras to walls, eaves, ceilings and soffits where a clean, sealed base connection is required. It's a practical accessory for retail stores, warehouses, offices, and residential properties running LTS CCTV systems, giving installers a reliable, weatherproof foundation before attaching the camera head unit. Because it standardises the mounting interface across several LTS camera series, it's also a handy stock item for technicians servicing mixed camera fleets or replacing damaged original base plates.

What's in the Box

• 1x LTB130-H 130mm base plate/head unit
• 2x EPDM rubber sealing gaskets
• Mounting screws (where supplied with camera-specific kit)

Frequently Asked Questions

Which cameras is the LTB130-H compatible with?
It is designed to fit LTS CMIP 10, 30, 33 and 38 series IP turret/dome cameras, as well as CMHT 17 series TVI turret cameras that share the 130mm base footprint.

Does the LTB130-H include weatherproofing?
Yes, it ships with two EPDM rubber gaskets that help seal the base plate against moisture and dust ingress at the mounting point.

Can this base plate be combined with other LTS brackets?
Yes, the LTB130-H head unit is designed to work with the broader LTS Camera Bracket range, including wall brackets and pole mounts, for more flexible mounting configurations.

Additional Resources

• LTS Camera Brackets Summary Chart
