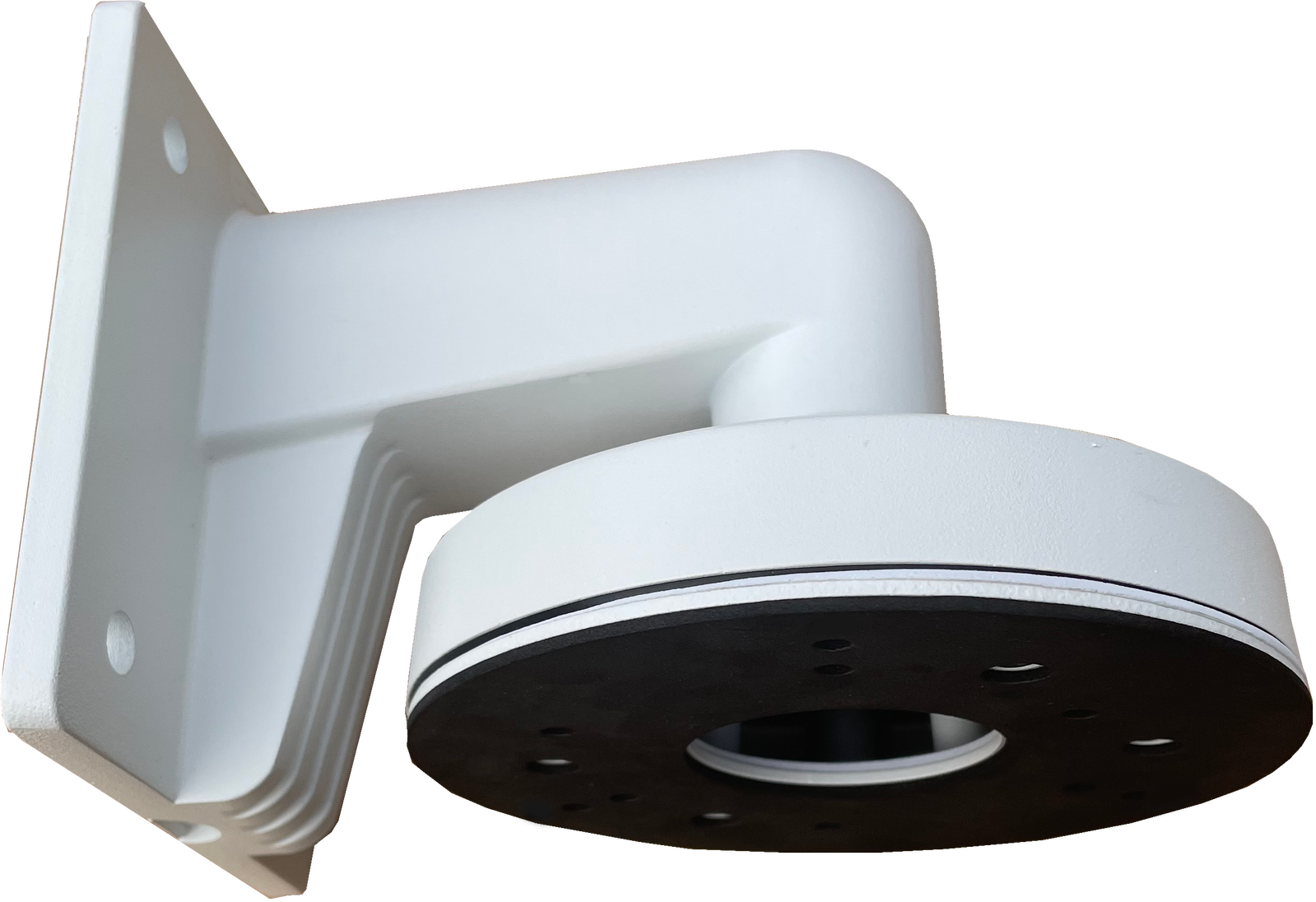

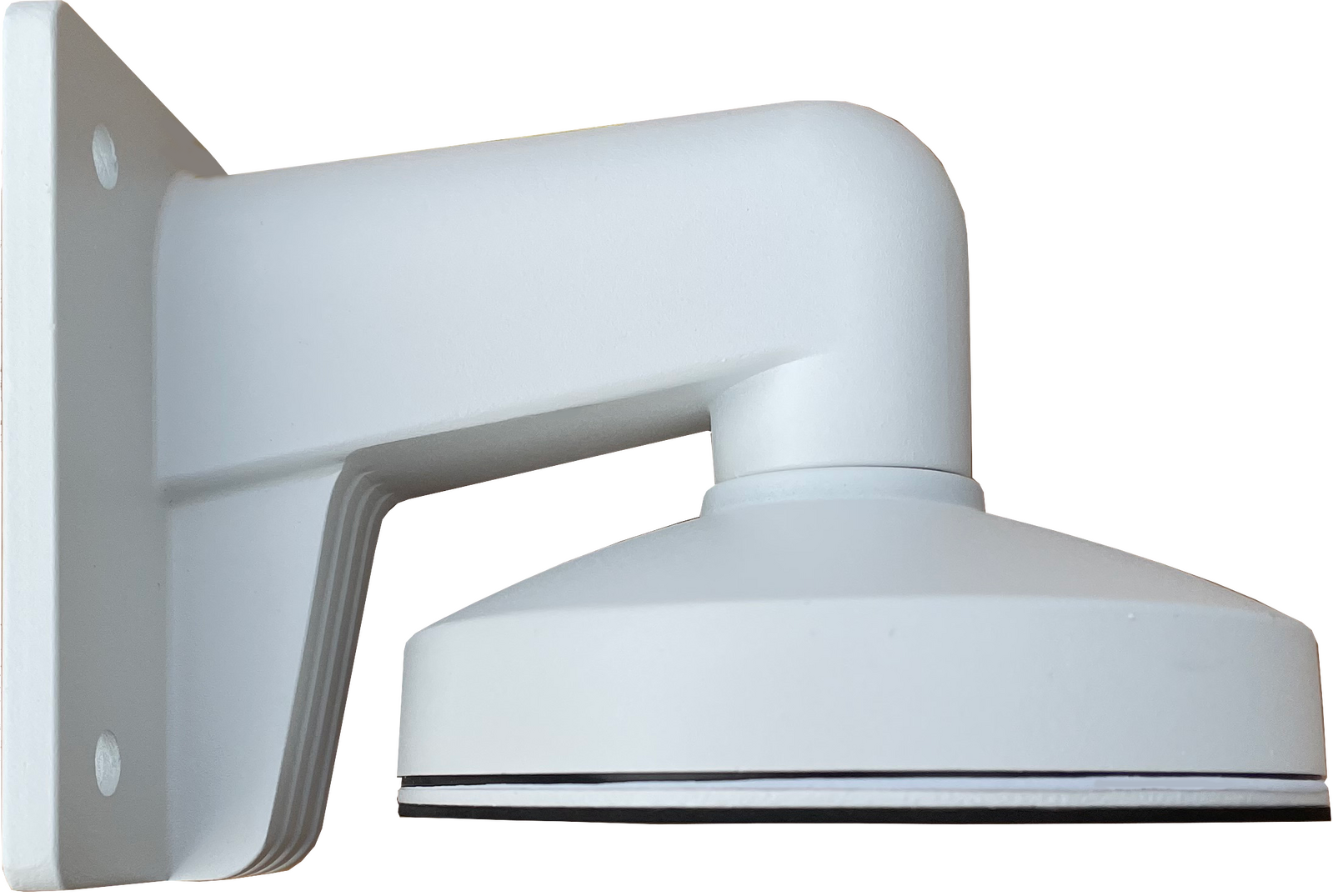

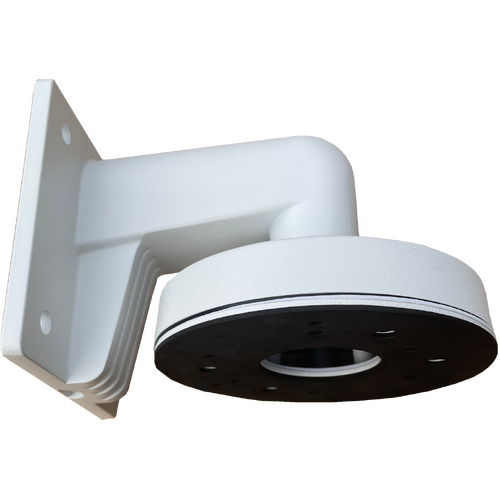

LTS LTB301-C Wall Mount Camera Bracket with 130mm Head Unit

LTS LTB301-C Wall Mount Camera Bracket with 130mm Head Unit

The LTS LTB301-C is a purpose-built wall mounting bracket designed to give installers a clean, professional finish when fitting compatible dome and turret cameras from the LTS Platinum range. The bracket integrates a discreet cable entry point and a 130mm head unit, allowing cabling to be routed internally rather than left exposed on the wall surface. This keeps the installation tidy, reduces the risk of tampering with cabling, and suits both commercial and residential CCTV projects where presentation matters.

Key Features

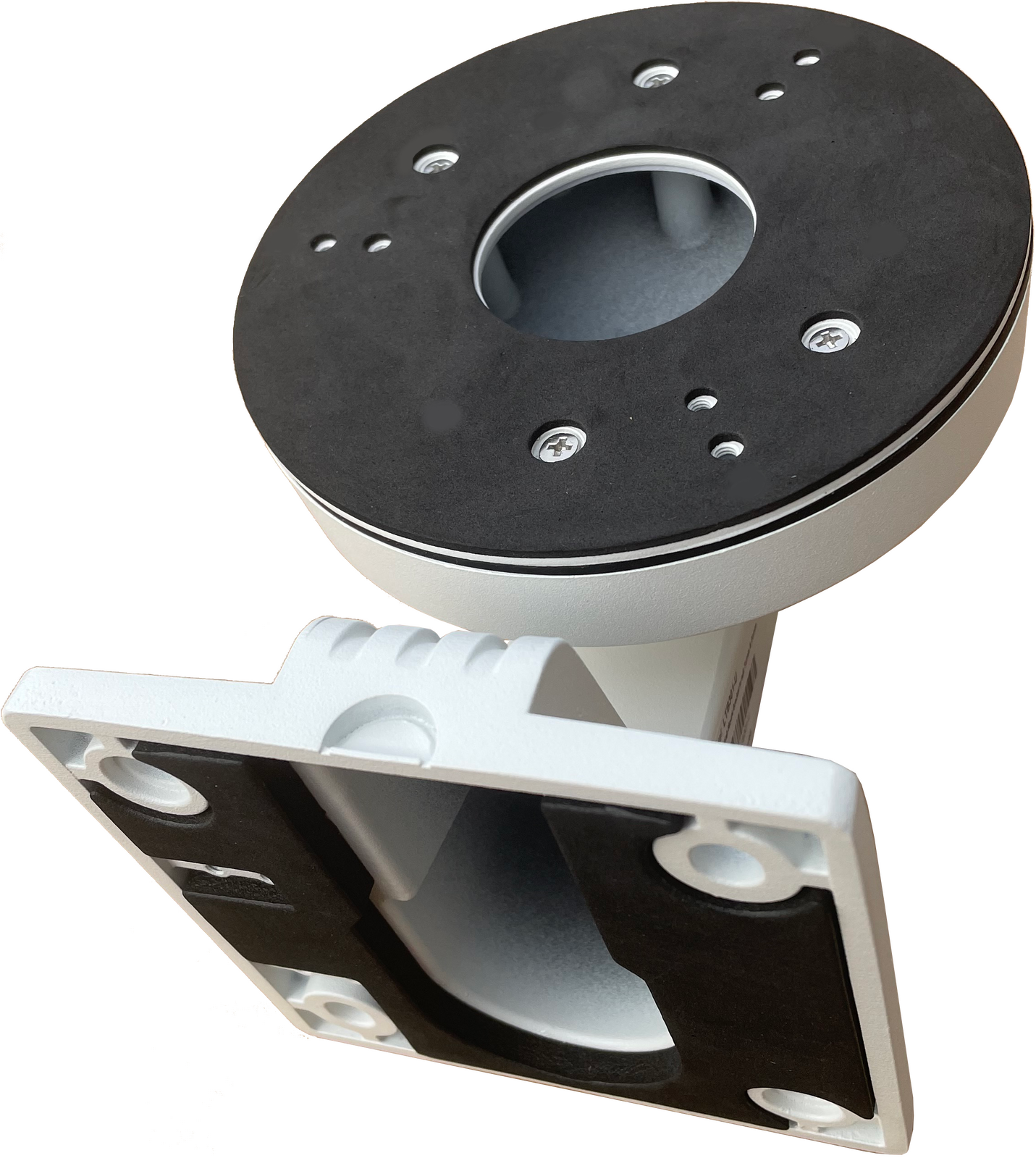

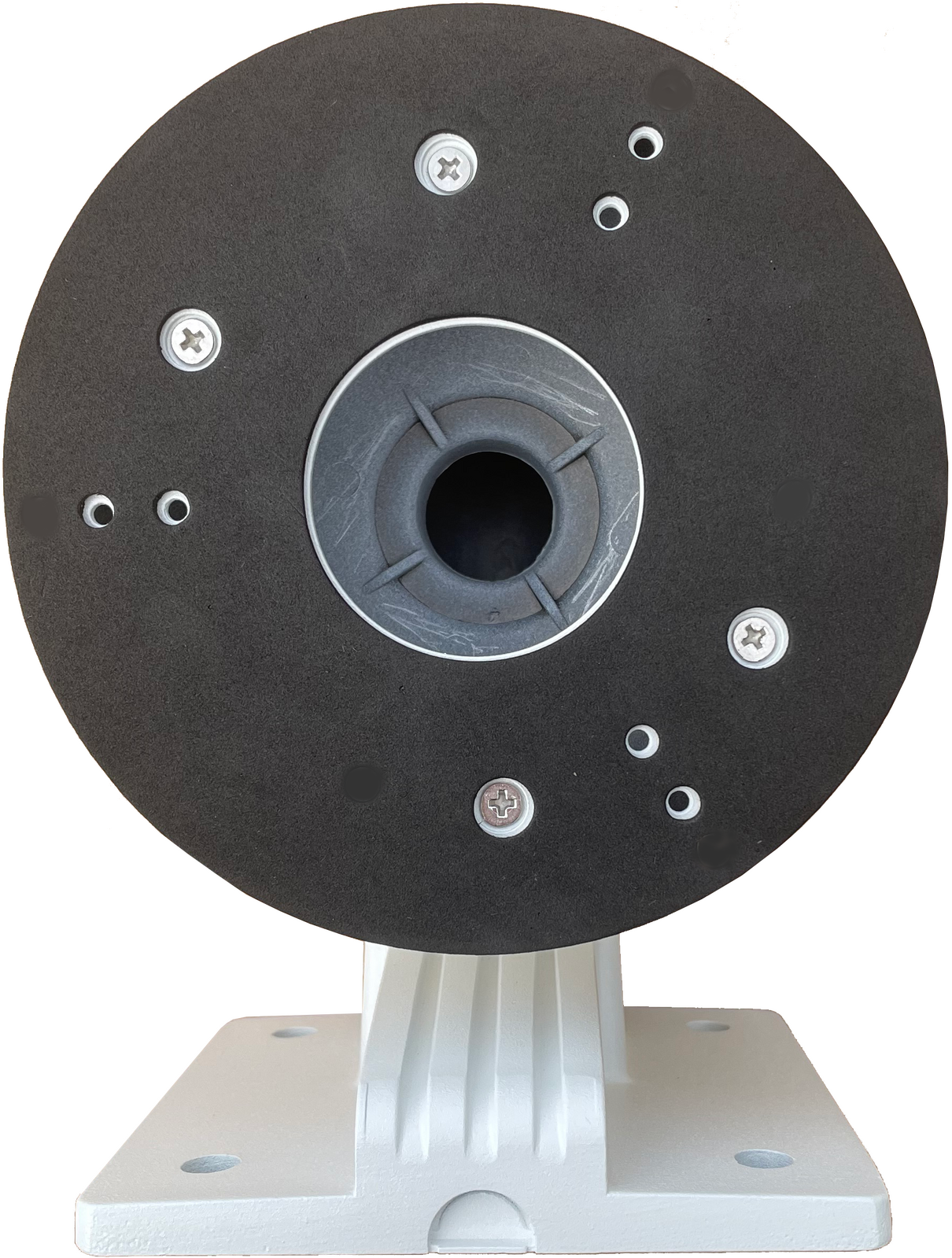

• Discreet cable management: Built-in cable entry point conceals wiring for a neat, professional finish.
• 130mm head unit included: Provides the correct camera-facing interface without needing a separate adapter.
• Wide camera compatibility: Designed to suit multiple LTS IP and HD-TVI camera series.
• Compact footprint: Base dimensions of approximately 130mm (ø) x 65mm(H) suit a range of mounting surfaces.
• Solid overall build: Total assembled dimensions of roughly 182mm(L) x 130mm(W) x 120mm(H) for a stable, secure camera platform.
• Simple wall installation: Straightforward fixing points allow quick mounting to standard wall surfaces.
• Part of a coordinated bracket family: Pairs with matching LTS back-boxes and accessories for a complete mounting solution.
• Durable construction: Built to withstand everyday outdoor and indoor security installation conditions.

Compatible Cameras

The LTB301-C is engineered to suit a range of LTS Platinum IP dome/turret cameras, including models in the CMIP 10, CMIP 30, CMIP 33 and CMIP 38 series, as well as HD-TVI models in the CMHT 17 series. Always cross-check the exact camera model number against the current LTS camera bracket compatibility chart before ordering, as camera housing shapes can vary between generations.

Typical Use Cases

This bracket suits installers upgrading or replacing dome-style security cameras on external walls, eaves, or building facades where a tidy, low-profile finish is required. It is well suited to retail premises, offices, warehouses, and residential properties that use LTS Platinum-series cameras and want cabling hidden from view for both aesthetics and tamper resistance. Because it accommodates several camera series, it also works well for site-wide standardisation, letting installers stock one bracket type across multiple camera models.

What's in the Box

• 1 x LTB301-C wall mount bracket assembly
• 1 x 130mm camera head unit
• Mounting screws and fixing hardware
• Installation instructions

Frequently Asked Questions

Q: Does the LTB301-C include the back-box?
A: No, the back-box is sold separately as a matching accessory; the LTB301-C is the wall bracket and 130mm head unit only.

Q: Can I use this bracket with any LTS camera?
A: It is designed for specific CMIP 10/30/33/38 and CMHT 17 series cameras, so it's important to confirm your exact camera model against the current LTS bracket compatibility chart first.

Q: Is this bracket suitable for outdoor use?
A: Yes, it is designed for use with outdoor-rated dome and turret cameras as part of a standard external CCTV installation.

Additional Resources

• LTS Camera Brackets Summary Chart
