LTS LTB301-CU Universal Wall Mount Bracket for Platinum Dome & Turret Cameras

LTS LTB301-CU Universal Wall Mount Bracket

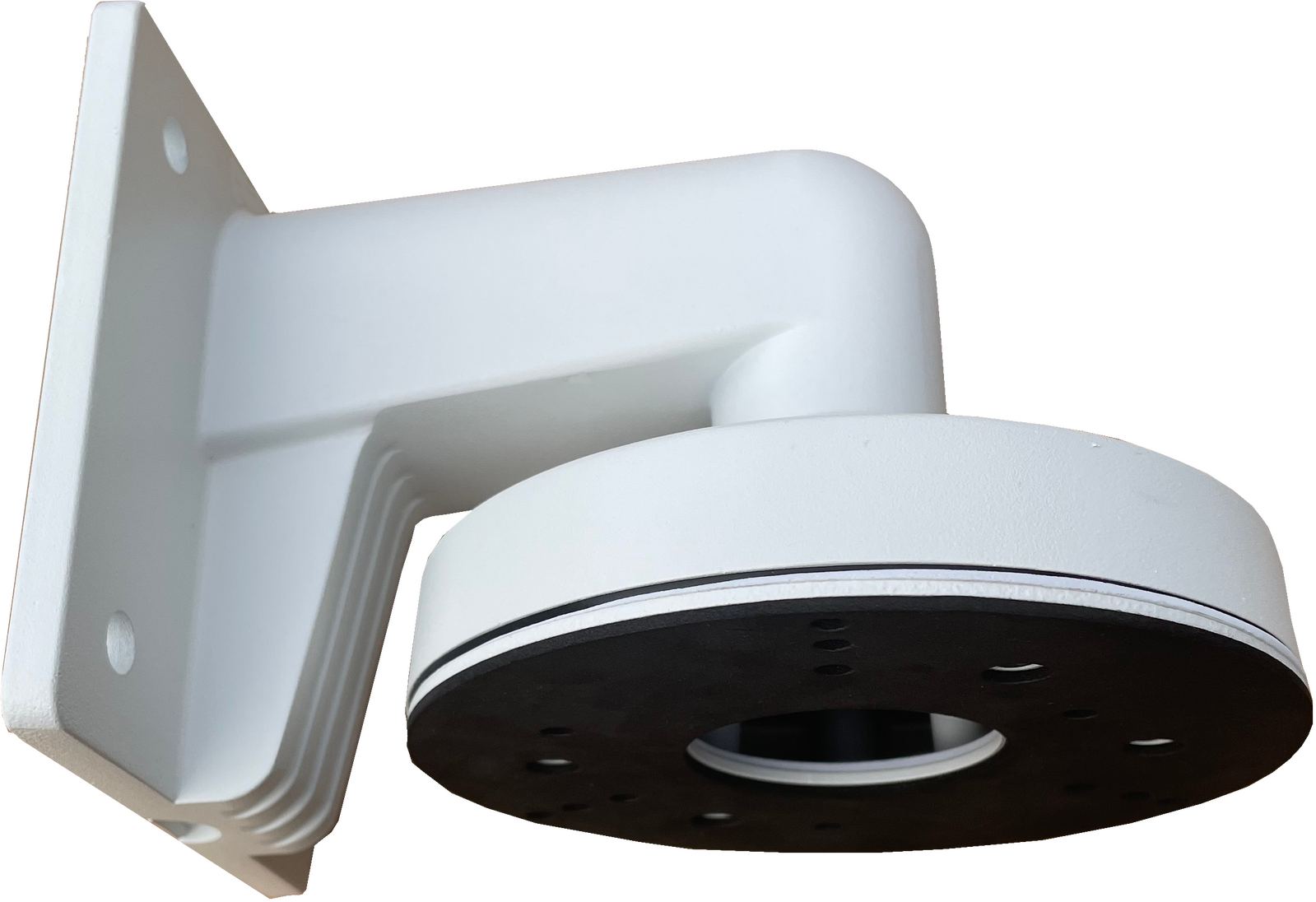

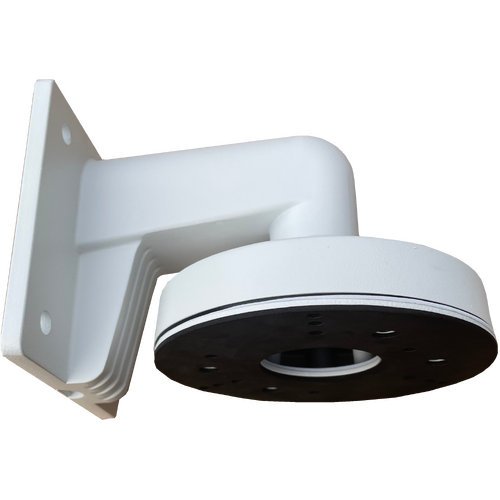

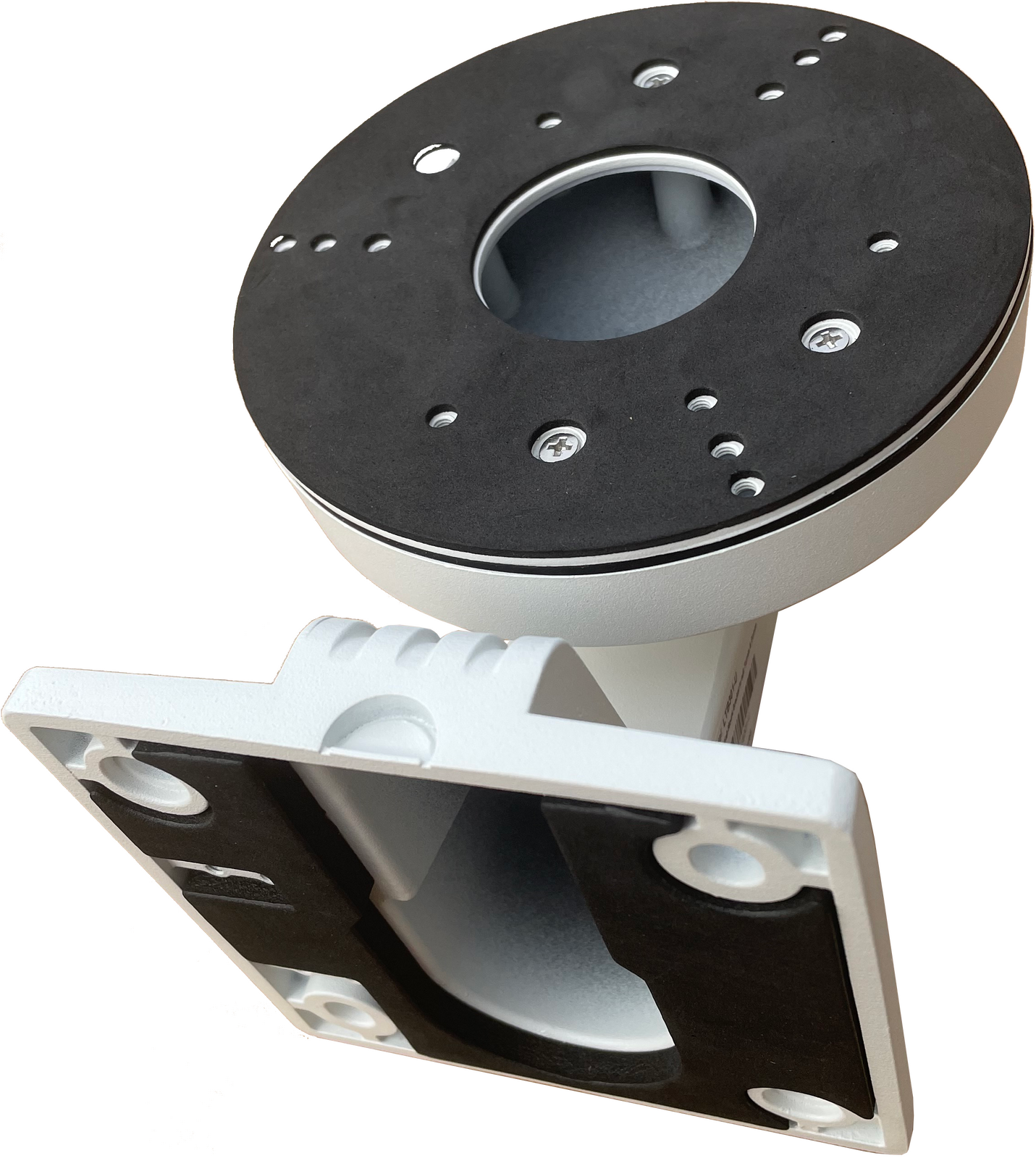

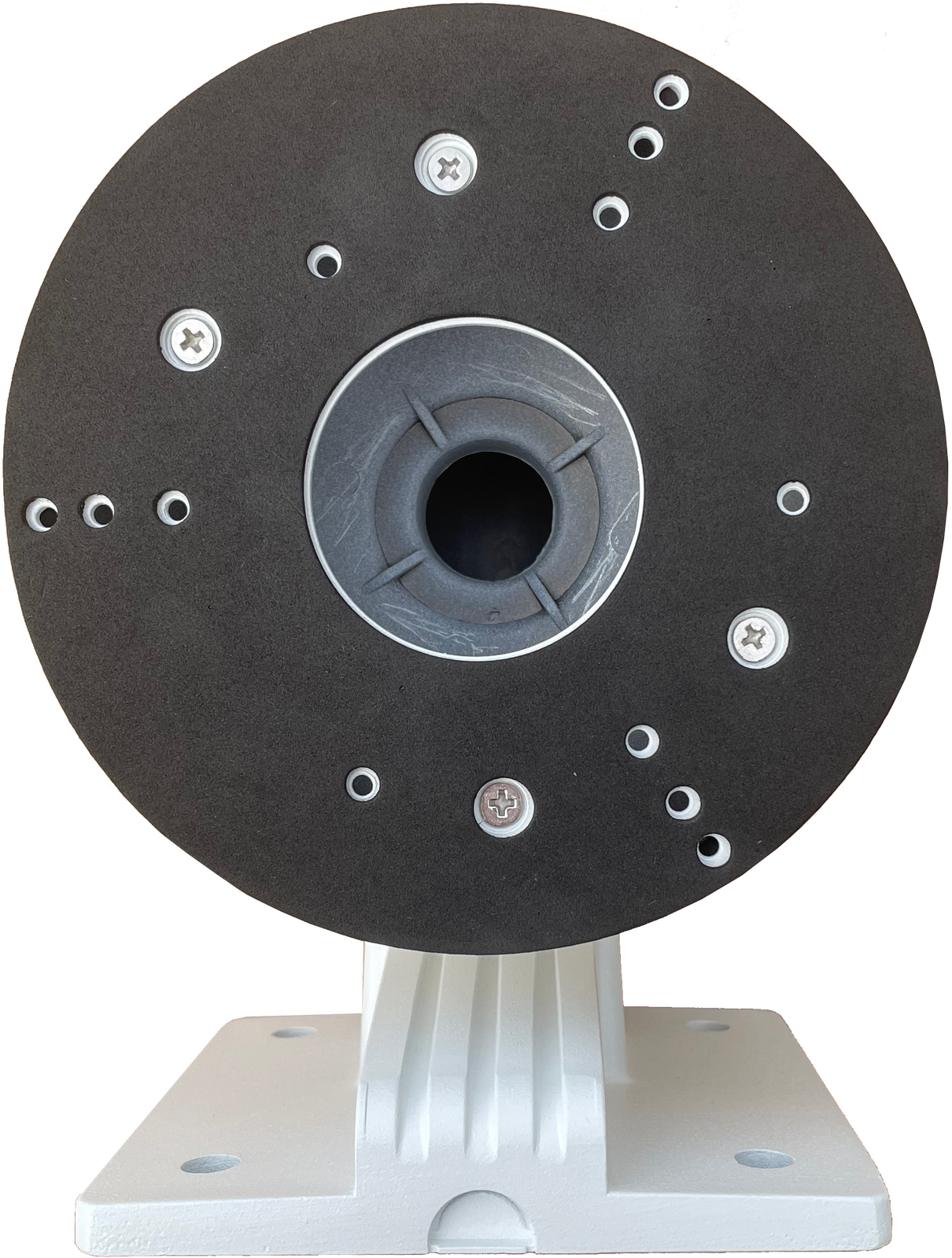

The LTS LTB301-CU is a heavy-duty aluminium wall mount bracket engineered for LTS Platinum series dome and turret cameras. Featuring a discrete cable entry point, it allows installers to route power and data cabling neatly behind the mount for a clean, professional-looking installation. This model is the current replacement for the earlier LTB301-U bracket, offering the same reliable mounting performance with a universal base designed to suit both 130mm and 140mm camera mounting plates.

Key Features

• Universal base design compatible with both 130mm and 140mm camera mounting footprints
• Discrete cable entry for hidden wiring and a tidy finish once installed
• Constructed from durable aluminium alloy for long-term outdoor durability
• Total bracket dimensions of approximately 182mm (L) x 140mm (W) x 120mm (H)
• Base dimensions of approximately 140mm diameter x 70mm (H)
• Compatible with LTS Platinum IP dome cameras including the CMIP10, CMIP30, CMIP32, CMIP33, CMIP3C, CMIP3D and CMIP3T series
• Compatible with LTS Platinum HD-TVI cameras including the CMHT17, CMHT18 and CMHT19 series
• Suitable for both indoor and outdoor wall-mounted installations
• Pairs with the optional LTB-110-BB back-box for surface-mount installs where in-wall cable access is not available

Ideal for Commercial and Residential Camera Installations

This bracket is well suited to installers and integrators fitting out retail stores, offices, warehouses and residential properties with LTS Platinum dome or turret cameras. Its discrete cable routing keeps external wiring out of sight and protected from the elements, while the universal 130-140mm base means a single bracket SKU covers a wide range of compatible camera models, simplifying stock management for trade installers.

What's in the Box

• LTB301-CU wall mount bracket assembly
• Camera mounting adapter plate
• Mounting screws and wall anchors
• Installation instructions

Frequently Asked Questions

Is the LTB301-CU a direct replacement for the LTB301-U?
Yes. The LTB301-CU is the current production model that supersedes the discontinued LTB301-U, using the same universal mounting footprint.

Which cameras does this bracket support?
It supports a wide range of LTS Platinum IP dome cameras (CMIP10/30/32/33/3C/3D/3T series) and HD-TVI cameras (CMHT17/18/19 series) that use a 130mm or 140mm base.

Do I need a separate back-box for outdoor cable protection?
If you require a sealed cable management enclosure behind the bracket, the LTB-110-BB back-box is available as a compatible accessory.
