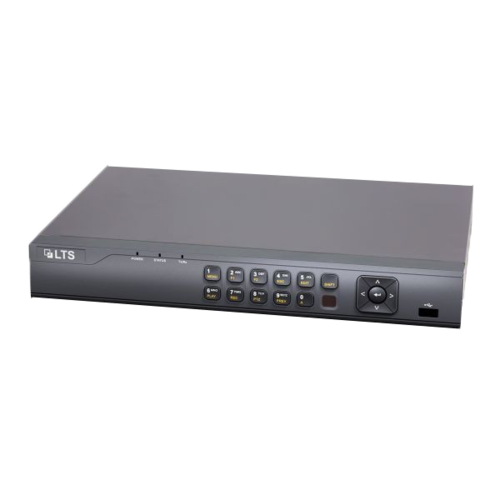

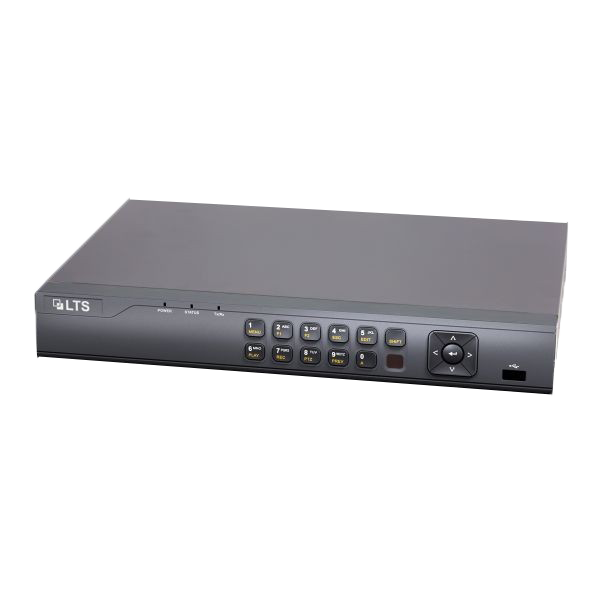

LTS Platinum LTN8704Q-P4N 4-Channel PoE NVR with 2TB HDD

LTS Platinum LTN8704Q-P4N 4-Channel PoE NVR with 2TB HDD

The LTS Platinum LTN8704Q-P4N is a compact, professional-grade 4-channel network video recorder designed for small business and residential IP camera installations. This bundle ships with a 2TB hard drive already installed, so it is ready to record straight out of the box. Built around 4 independent built-in PoE ports, it lets installers connect compatible IP cameras with a single cable for both power and data, removing the need for a separate PoE switch or injector. The unit supports H.265+/H.265/H.264+/H.264 video compression, giving strong image quality while keeping storage and bandwidth requirements manageable.

Key Features

• 4-channel IP video input with up to 40Mbps incoming bandwidth for real-time multi-camera recording
• 4 built-in PoE ports (802.3af/at) for simple, single-cable camera installation
• Decoding capacity of up to 1 channel at 8MP or 5 channels at 1080p
• Simultaneous 4K HDMI and 1080p VGA video outputs for flexible monitor connections
• H.265+/H.265/H.264+/H.264 video formats to reduce storage consumption without sacrificing clarity
• 1x SATA hard drive bay supporting drives up to 8TB, with a 2TB HDD pre-installed
• 2x USB 2.0 ports for local backup and mouse connection
• 1x RJ45 10/100/1000M network port plus LTS-Connect and DDNS support for remote viewing
• 1-channel RCA audio in/out for basic audio recording alongside video

Ideal Applications

This NVR suits homes, retail stores, offices, and small perimeter setups that need reliable 24/7 recording without complex infrastructure. Because power and network data travel over the same PoE cable to each camera, installation is faster and tidier than traditional DVR-based systems, and the pre-loaded 2TB drive gives users weeks of footage depending on resolution and frame rate settings before storage management is needed. It pairs naturally with LTS Platinum IP cameras for a matched, single-brand surveillance system.

What's in the Box

• 1x LTS Platinum LTN8704Q-P4N 4-channel PoE NVR
• 1x 2TB SATA hard disk drive (pre-installed)
• 1x Power adapter
• 1x Mouse for local navigation
• Mounting screws and quick start documentation

Frequently Asked Questions

How many cameras can this NVR support?
It supports up to 4 IP cameras, connected directly via the built-in PoE ports for combined power and data over a single cable.

Can I upgrade the hard drive later?
Yes. The single SATA bay accepts drives up to 8TB, so the pre-installed 2TB drive can be swapped for larger capacity as recording needs grow.

Does it support remote viewing on a phone or app?
Yes, the NVR includes LTS-Connect and DDNS support, allowing remote live view and playback once the unit is configured on a network.
