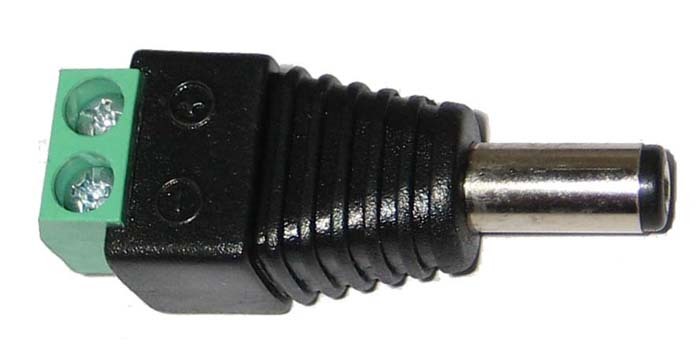

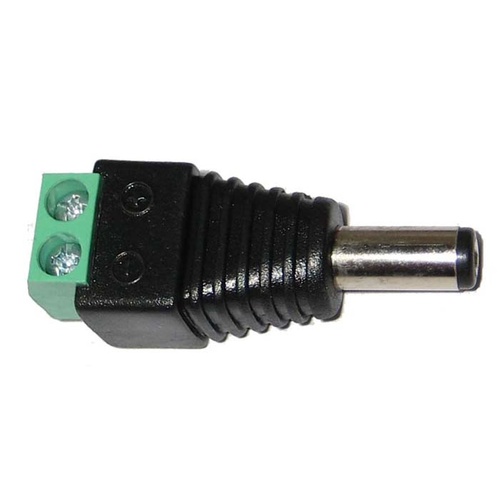

LTS 2.1mm Male DC Jack Screw Terminal Block Connector

LTS 2.1mm Male DC Jack Screw Terminal Block Connector

The LTS 2.1mm Male DC Jack Screw Terminal Block Connector is a compact power connector designed to terminate bare power cable to a standard 2.1mm male DC barrel plug without soldering. It is a staple accessory for CCTV, DVR, NVR and general 12V/24V low-voltage installations, letting installers quickly build or repair power leads for cameras, monitors and other security equipment on site.

Key Features

• Standard 2.1mm male DC barrel plug compatible with the vast majority of CCTV cameras, DVRs, NVRs and power supplies using this common connector size.
• Screw-down terminal block allows bare or tinned wire to be clamped in securely without a soldering iron.
• Solder-free installation saves time on site and reduces the tools needed for cable termination or repair work.
• Polarity-marked terminals help installers correctly match positive and negative conductors to avoid reversed-polarity damage.
• Durable moulded housing protects the internal contacts and wire connection point from knocks and strain during installation.
• Compact, lightweight design fits easily inside enclosures, junction boxes and behind mounted cameras.
• Reusable and field-serviceable — the terminal can be unscrewed and re-wired if a cable needs to be replaced or extended.
• Pairs with the matching LTS female DC jack terminal block for building complete extension or splitter leads.

Typical Applications

This connector is commonly used by security installers and technicians who need to extend, repair or custom-build DC power cables for HD-TVI, IP and analogue camera systems, as well as DVR/NVR power supplies. Rather than replacing an entire power cable when a connector fails, installers can simply screw the existing wire into this terminal block and restore a reliable 2.1mm male DC connection in minutes. It is equally useful when running new cable runs to power splitters, PTZ cameras or auxiliary devices that require a standard male DC jack termination.

What's in the Box

• 1 x LTS 2.1mm Male DC Jack Screw Terminal Block Connector

Frequently Asked Questions

Does this connector require soldering?
No. The wire is secured using a screw-down terminal, so no soldering is required for a solid connection.

Is this compatible with standard CCTV power supplies?
Yes. It uses the common 2.1mm barrel size found on the majority of CCTV cameras, DVRs and NVR power supplies used in Australian installations.

Can I use this with the matching female version?
Yes. Pair it with the LTS 2.1mm female DC jack screw terminal block to create a complete two-piece extension or splice connection.
