LTS 2.1mm Female DC Jack to Screw Terminal Block Adapter

LTS 2.1mm Female DC Jack to Screw Terminal Block Adapter

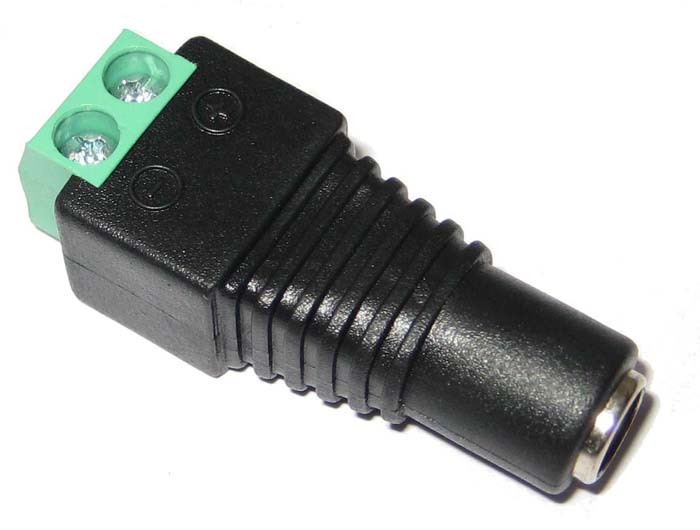

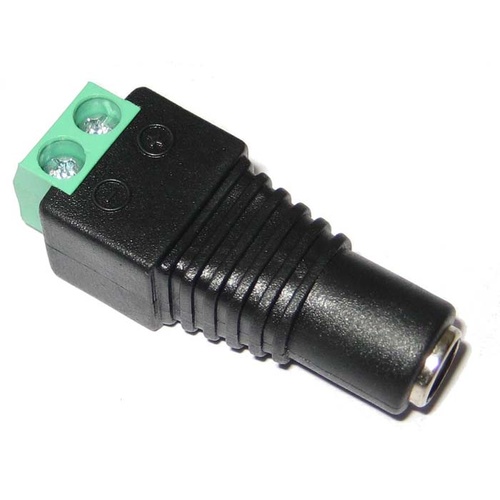

This LTS 2.1mm female DC jack adapter lets installers terminate bare two-conductor wire directly to a standard DC barrel connector, making it easy to build custom power leads for cameras, DVRs, NVRs and other 12V DC security equipment without soldering or crimping. It is a simple, low-cost accessory that belongs in every CCTV installer's toolkit for on-site power cable repairs and custom runs.

Key Features

• Standard 2.1mm x 5.5mm barrel size compatible with the vast majority of 12V DC security camera and power supply plugs
• Solderless screw terminal design allows bare or stripped wire ends to be secured with a small screwdriver, no crimping tools required
• Clearly marked polarity with positive (+) and negative (-) terminal identification to prevent wiring mistakes
• Centre-positive configuration matching the wiring convention used by most CCTV cameras and DVR/NVR power supplies
• Durable moulded housing protects the internal contacts and screw terminals from knocks during installation
• Compact, lightweight form factor that is easy to fit inside junction boxes, camera housings or cable runs
• Female jack orientation designed to accept a standard male DC barrel plug from a power supply or extension cable
• Versatile use beyond CCTV, suitable for any low-voltage DC device using the same 2.1mm connector size

Typical Use Cases

This adapter is most commonly used when a CCTV camera's power pigtail has been damaged, cut too short, or needs to be extended without splicing into the original supply wiring, which can void a manufacturer's warranty. It is also handy when running new siamese or bulk 18AWG cable to a camera location and a proper DC jack termination is needed at the power supply end, or when building custom test leads for bench work with LTS Platinum, PRO-X or NDAA-compliant cameras, DVRs and NVRs.

What's in the Box

• 1 x LTS 2.1mm Female DC Jack Screw Terminal Block Adapter

Frequently Asked Questions

Is this adapter compatible with LTS Platinum and PRO-X cameras? Yes, it uses the standard 2.1mm centre-positive barrel connector used across most LTS camera and DVR/NVR power inputs.

Do I need any tools to install it? Only a small screwdriver is required to tighten the screw terminals onto your bare wire ends.

Can it be used outdoors? The connector itself is not weatherproof, so for outdoor installations it should be protected with electrical tape, heat shrink, or housed inside a weatherproof enclosure or junction box.
