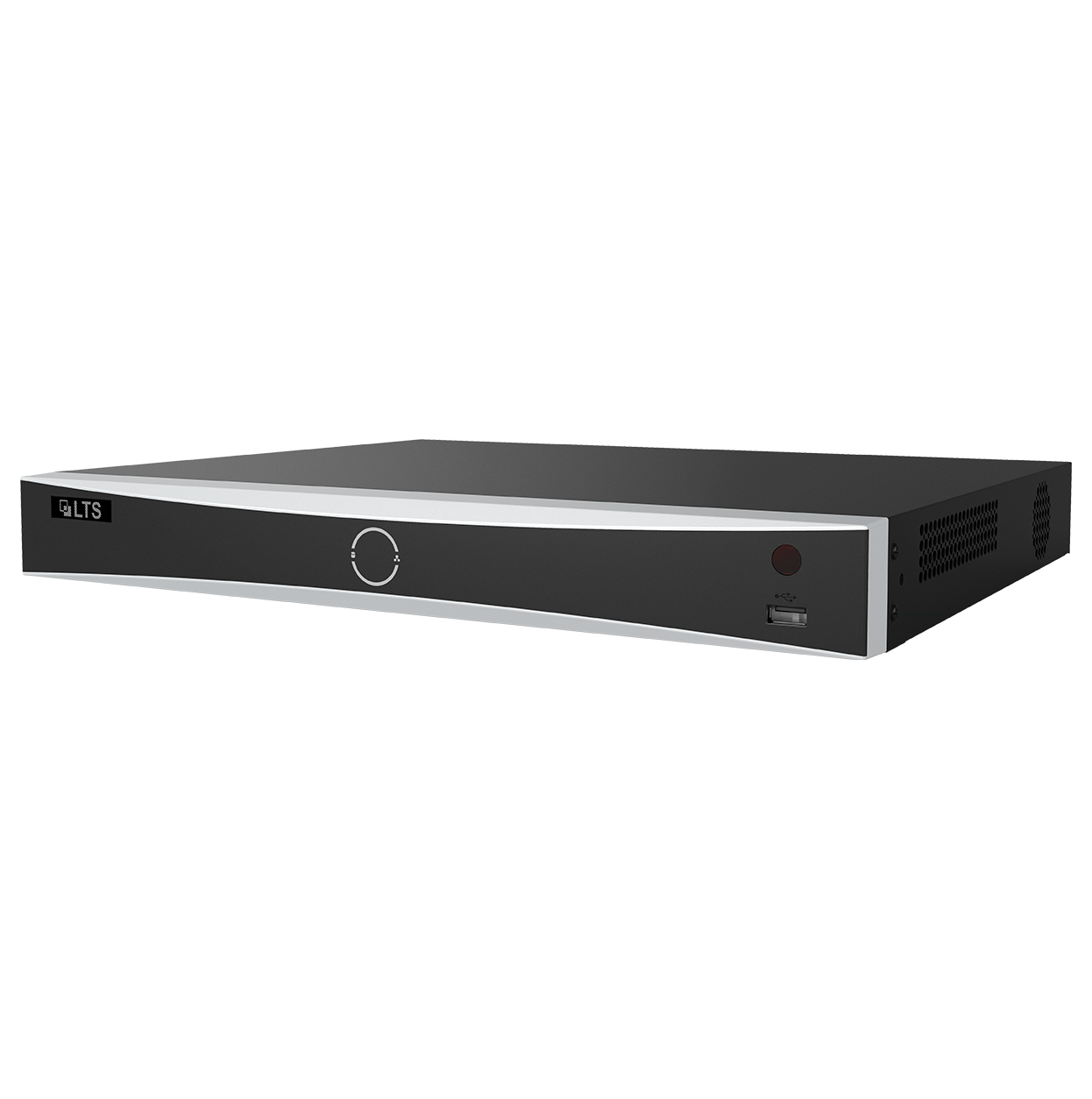

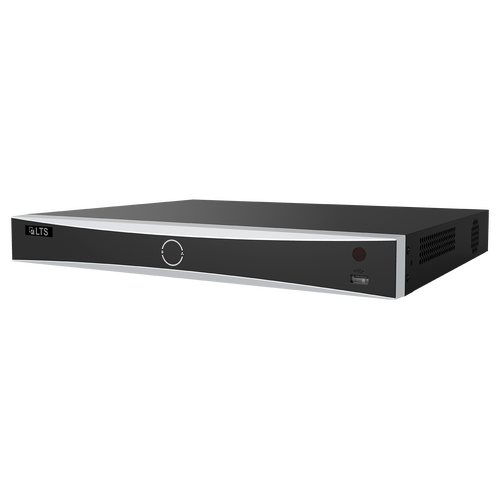

LTS Platinum LTN8716D-P16N 16-Channel 4K PoE NVR with 4TB HDD

LTS Platinum LTN8716D-P16N 16-Channel PoE NVR with 4TB HDD

The LTS Platinum LTN8716D-P16N is a professional-grade 16-channel network video recorder built for IP camera systems that need reliable recording, smart analytics, and simple installation. This unit ships pre-loaded with a 4TB hard drive so it's ready to record straight out of the box, and it includes 16 built-in PoE ports, letting you power and connect compatible IP cameras with a single Ethernet cable each, no separate switch or injector required.

Key Features

• Supports up to 16 IP camera inputs with true plug-and-play PoE connectivity across all 16 ports
• Compatible with H.265+, H.265, H.264+ and H.264 compression for efficient storage use
• Flexible decoding capacity of up to 2 channels at 12MP, 3 at 8MP, 6 at 4MP, or 12 at 1080p
• Handles up to 160 Mbps incoming bandwidth for smooth multi-camera recording at high resolution
• Built-in MD 2.0 / VCA analytics for smarter human and vehicle motion detection, reducing false alerts
• Independent HDMI (up to 4K) and VGA outputs for flexible monitor setups
• Pre-installed 4TB HDD plus a second SATA bay for future storage expansion
• Smart search and smart playback tools to quickly locate relevant footage across recorded video
• 1 USB 2.0 and 1 USB 3.0 port for backup, firmware updates, or mouse control

Ideal for Growing Security Installations

This NVR suits homes, retail stores, warehouses, and small-to-mid-sized commercial sites that want to centralise up to 16 cameras on one recorder without extra networking hardware. The built-in PoE ports simplify cabling, while the human/vehicle detection analytics help installers cut down on nuisance alerts from weather, animals, or moving foliage. With a 4TB drive already fitted, it's a practical choice for sites that need dependable 24/7 recording without an immediate need to source and configure separate storage.

What's in the Box

• LTS Platinum LTN8716D-P16N NVR unit with 4TB HDD pre-installed
• Power adapter and cable
• Mounting screws and hardware
• Quick start guide

Frequently Asked Questions

Q: How many cameras can this NVR support?
A: It supports up to 16 IP cameras, each powered directly through its built-in PoE ports.

Q: Can I add more storage later?
A: Yes, the unit has two SATA interfaces in total, so a second hard drive can be added alongside the pre-installed 4TB unit.

Q: Does it work with non-LTS cameras?
A: While designed for smooth plug-and-play use with LTS IP cameras, it also supports many third-party ONVIF-compatible network cameras.
