LTS Platinum LTN8616-P16N 16-Channel 8K NVR with 16 PoE Ports & 6TB HDD

LTS Platinum LTN8616-P16N 16-Channel 8K NVR with 6TB HDD

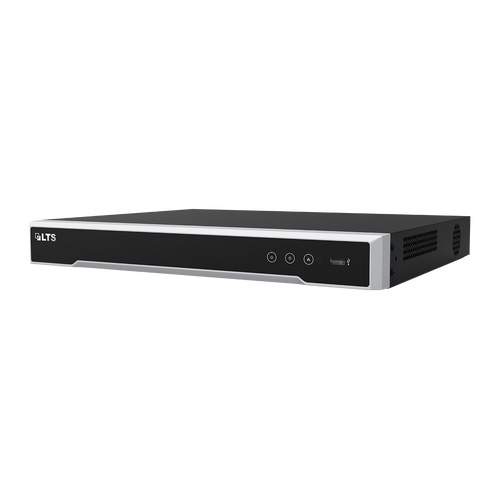

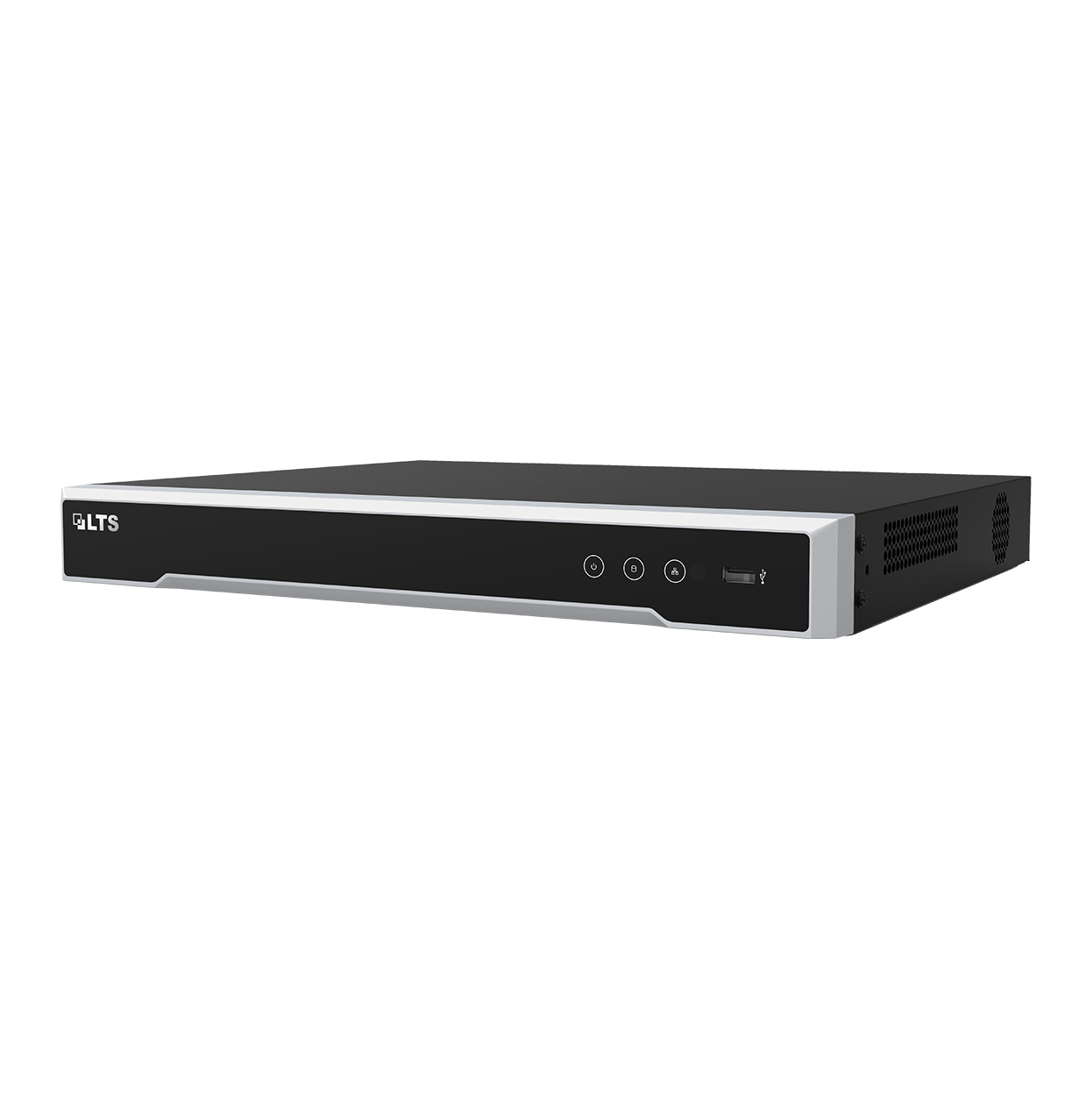

The LTS Platinum LTN8616-P16N is a 16-channel network video recorder from the LTS 86-Series, built for professional-grade IP surveillance deployments. This variant ships with a 6TB hard drive pre-installed, so it is ready to record straight out of the box without the need to source and format a separate drive. With 16 built-in PoE ports, a 256Mbps incoming bandwidth ceiling, and support for recording resolutions up to 32MP, it is designed to handle demanding multi-camera sites where image clarity and reliable long-term storage both matter.

Key Features

• 16 built-in PoE ports for plug-and-play power and data to compatible IP cameras over a single cable run.
• Up to 256Mbps incoming bandwidth, allowing simultaneous high-resolution streams from up to 16 cameras.
• Recording resolution up to 32MP per channel for detailed evidentiary footage.
• Ultra HD HDMI output up to 8K, plus independent VGA and CVBS outputs for flexible monitor setups.
• H.265+, H.265, H.264+ and H.264 compression, cutting storage requirements by as much as 75% compared with standard codecs.
• Dual SATA bays supporting HDDs up to 14TB each, with a 6TB drive already fitted for immediate deployment.
• Advanced video analytics (VCA) including motion detection, line crossing, intrusion detection, heat mapping and license plate recognition on supported cameras.
• Secure TLS-encrypted streaming and double verification for footage playback and export.
• POS data overlay and POS-triggered recording/alarms for retail and point-of-sale integration.

Built for Demanding Surveillance Environments

This NVR suits retail stores, warehouses, offices, hospitality venues and residential estates that need centralised, high-resolution recording across a large number of IP cameras. The 16 PoE ports simplify installation by removing the need for a separate PoE switch, while the pre-loaded 6TB drive and efficient H.265+ compression help extend recording history before storage needs to be expanded. Support for 16-channel synchronous playback and remote access makes it practical for both on-site monitoring and off-site management by security teams or business owners.

What's in the Box

• LTN8616-P16N 16-channel NVR unit with 6TB HDD pre-installed
• Power adapter and power cord
• Mouse for local navigation
• Mounting screws and hardware
• Quick start guide

Frequently Asked Questions

Does this NVR come with the hard drive already installed?
Yes, this SKU includes a 6TB surveillance-grade hard drive pre-installed and ready to record on arrival.

How many cameras can be connected?
Up to 16 IP cameras can be connected, either directly via the built-in PoE ports or over the network for non-PoE devices within the bandwidth limit.

Can the storage be expanded later?
Yes, the unit has two SATA bays in total, each supporting drives up to 14TB, so a second drive can be added for additional capacity.
