LTS Platinum LTB722 Aluminium Junction Box - 155mm Base Camera Mount

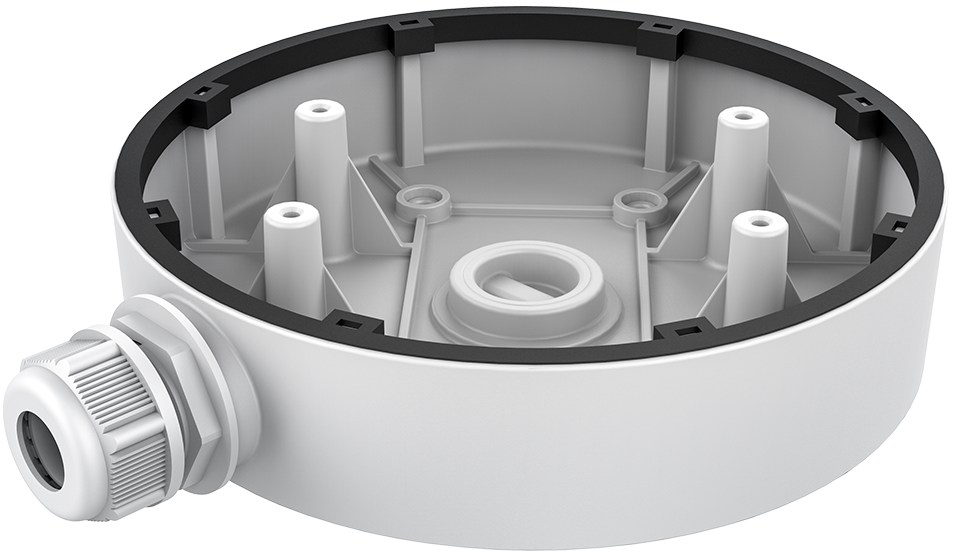

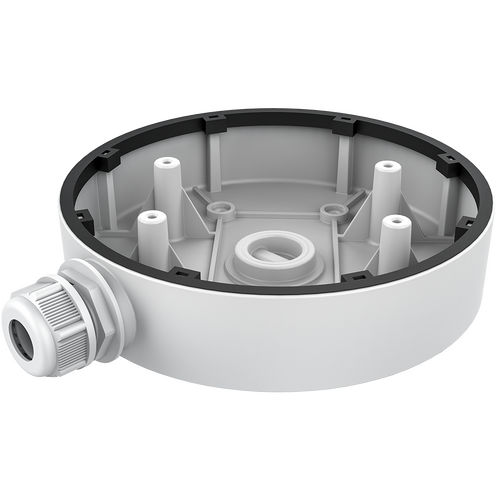

LTS Platinum LTB722 Junction Box (155mm Base)

The LTS Platinum LTB722 is a purpose-built junction box designed to simplify cable management and provide a clean, secure mounting surface for compatible LTS Platinum IP dome and turret cameras. Constructed from aluminium alloy with a durable spray-finished coating, this 155mm diameter base acts as a conduit entry point, allowing installers to route power and network cabling neatly behind the camera rather than through exposed external cable runs. It is engineered to suit both indoor and outdoor installations, making it a practical accessory for retail fit-outs, warehouses, offices, and residential surveillance setups.

Key Features

• Compact 155mm base with a low-profile 36mm height, matching the mounting footprint of compatible LTS Platinum IP camera series
• Aluminium alloy construction with a protective surface spray treatment for long-term corrosion resistance
• Weatherproof rubber gasket included to seal cable entry points against moisture in outdoor applications
• Multiple cable outlet points for flexible conduit or direct cable routing behind the camera housing
• Rated for indoor and outdoor use, suitable for a wide range of installation environments
• Solid load-bearing design, supporting the weight of the attached camera body securely
• Neutral white finish that blends with most ceiling and wall surfaces
• Compatible with select LTS Platinum IP camera series, including CMIP72xx and CMIP3C8P range cameras

Typical Applications

The LTB722 is intended for installers upgrading or replacing existing surface-mounted junction points on compatible LTS Platinum camera deployments. Because it provides a dedicated conduit entry and internal cavity for cable slack, it is especially useful where cabling must be concealed for a tidy, professional finish, such as in retail storefronts, corporate offices, and multi-camera commercial installations where aesthetics and cable protection both matter.

What's in the Box

• LTB722 junction box base (155mm diameter)
• Weatherproof rubber cable seal
• Mounting screws and fixings

Frequently Asked Questions

Q: Which cameras is the LTB722 compatible with?
A: It is designed as a base extender with conduit entry for select LTS Platinum IP camera series, including CMIP72xx and CMIP3C8P models. Always confirm mounting hole compatibility with your specific camera model before ordering.

Q: Can the LTB722 be used outdoors?
A: Yes, it includes a weatherproof rubber seal at the cable entry point, making it suitable for outdoor as well as indoor installations.

Q: Does the LTB722 include the camera or bracket arm?
A: No, the LTB722 is a junction box base only. It is used in combination with a compatible LTS Platinum camera and, where required, additional bracket arms or extenders from the LTS bracket range.
