LTS 3.5" Backlit Display Module for IP/2-Wire Video Intercom (LTH-M201-DIS)

LTS 3.5" IP/2-Wire Intercom Display Module

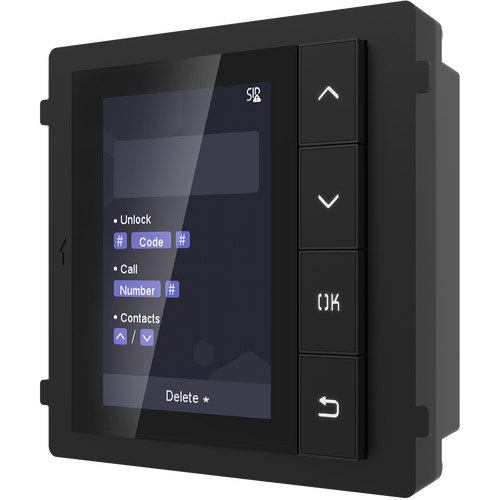

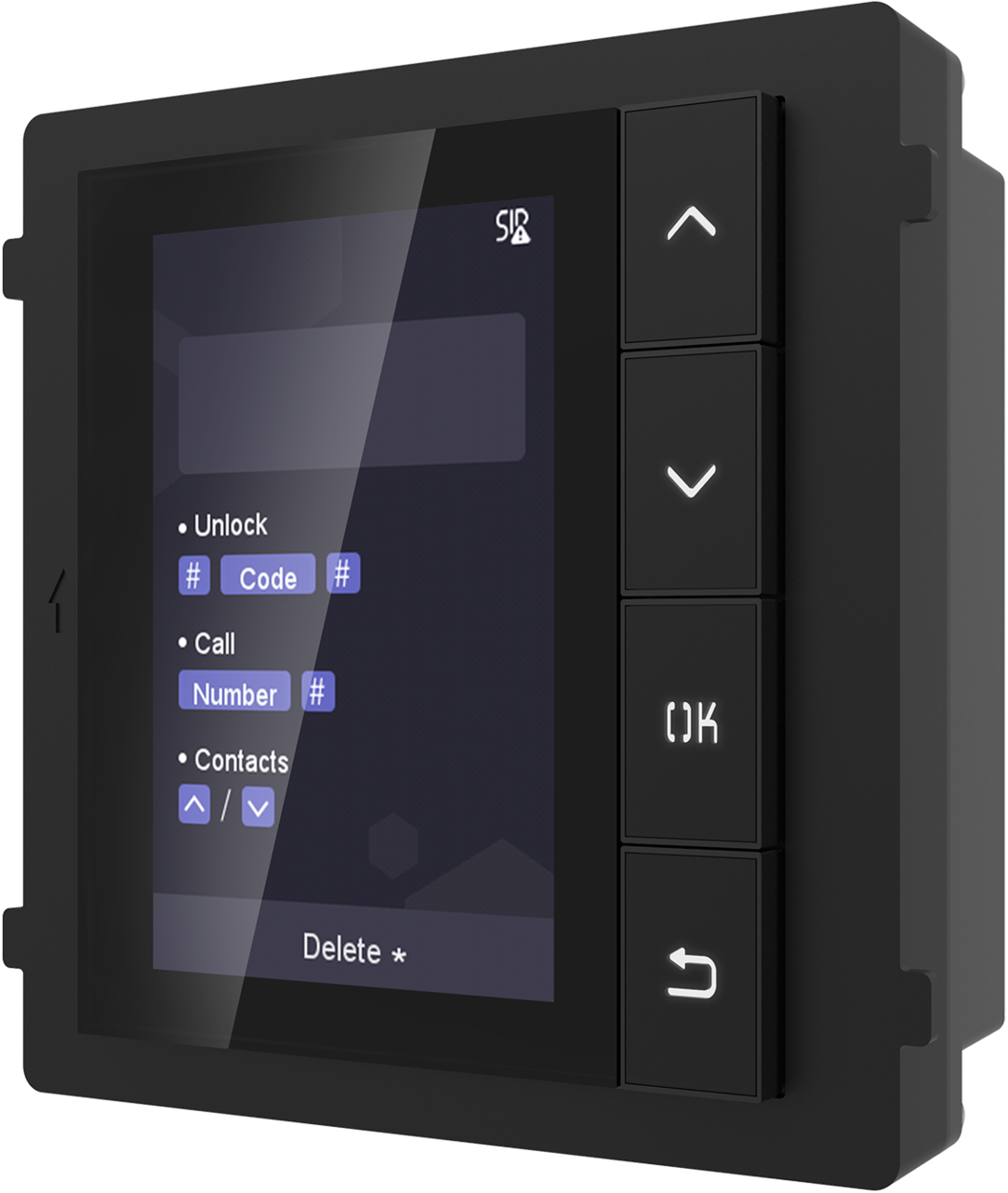

The LTS LTH-M201-DIS is a modular add-on screen designed to expand the functionality of LTS's IP and 2-Wire video door station systems. Instead of a simple call button, this module gives visitors a 3.5" backlit LCD screen with four physical push-buttons, allowing them to scroll through a directory and select the exact resident, office, or unit they wish to reach. It is built to snap into the same modular door-station frame as the LTS camera module, keypad module, and card reader module, making it ideal for apartment blocks, office buildings, and multi-tenant properties where a single button per resident isn't practical.

Key Features

• 3.5-inch backlit LCD screen for clear directory viewing in low light or at night
• Four physical push-buttons used to scroll, select, and confirm a directory entry
• Supports up to 500 stored contacts, suitable for large residential or commercial buildings
• IP65-rated housing for reliable outdoor, weatherproof operation
• Powered directly through the LTH-M201-C main camera module at DC 12V, no separate power supply required
• Compatible with both IP-based and 2-Wire LTS intercom door station platforms
• Designed to integrate seamlessly into LTS's modular door station frames alongside camera, keypad, and access-control modules
• Simplifies visitor navigation in multi-unit buildings compared to fixed name-tag buttons

Built for Multi-Tenant Access Control

This display module is best suited to apartment complexes, gated communities, office towers, and any site where more residents or tenants need to be reached than a fixed set of call buttons can support. By pairing the LTH-M201-DIS with an LTS IP or 2-Wire camera module and a compatible mounting frame, installers can build a single, unified entry panel that lets visitors browse a directory and place a call directly to the correct indoor station, streamlining access for larger buildings without needing multiple separate intercom panels.

What's in the Box

• LTH-M201-DIS Display Module
• Mounting hardware for installation into a compatible LTS modular door station frame
• Quick installation guide

Frequently Asked Questions

Does this module work on its own?
No. The LTH-M201-DIS is a sub-module that must be installed alongside an LTS camera module (such as the LTH-M201-C or LTH-M201-C-2) and a compatible frame, since it draws its power and system connection through the main module.

Can it be used outdoors?
Yes. The module carries an IP65 ingress protection rating, making it suitable for exposed entry points and building exteriors.

Is it compatible with both IP and 2-Wire intercom systems?
Yes. The LTH-M201-DIS is designed to work across LTS's IP and 2-Wire modular door station ranges, provided it is paired with the appropriate main module and frame for that system type.
