LTS LTH-M201-2F 2-Module Flush Mount Frame for IP/2-Wire Video Intercom

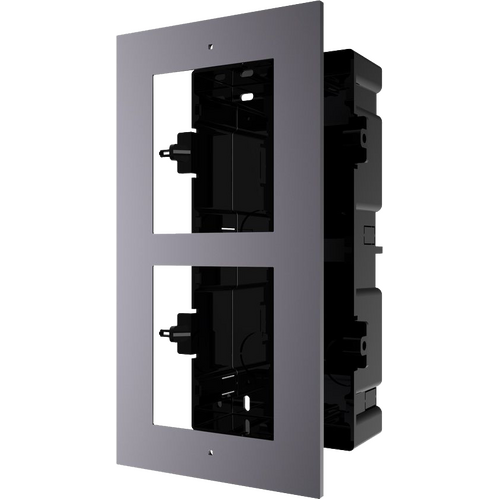

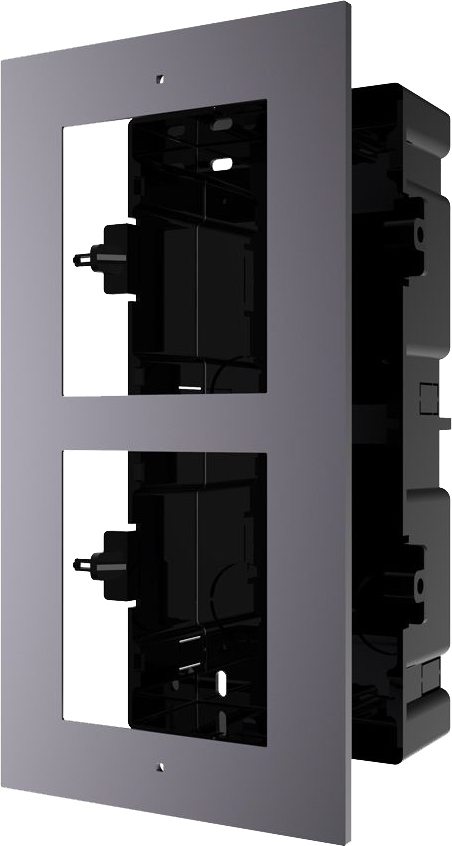

LTS LTH-M201-2F 2-Module Flush Mount Intercom Frame

The LTS LTH-M201-2F is a recessed installation frame designed for the modular LTS M201 video intercom door station range, compatible with both IP and 2-Wire intercom systems. Built to house two individual intercom modules side by side, this flush-mount frame allows installers to create a clean, integrated door entry panel that sits neatly within the wall rather than protruding from its surface. It is a core accessory for anyone building a customised multi-module entrance station using LTS Platinum or PRO-X intercom camera, keypad, or display modules.

Key Features

• Two-Module Capacity: Accommodates two LTS M201-series intercom modules (such as camera, keypad, or display units) in a single unified housing.
• Flush / Recessed Mounting: Designed to be embedded into the wall cavity for a seamless, professional finish rather than sitting on the surface.
• Aviation-Grade Aluminium Construction: The cover and frame are built from aircraft-grade aluminium for durability, corrosion resistance, and long-term outdoor performance.
• Complete Mounting Kit: Supplied as a full kit including the back box, mounting frame, cover plate, screws, and internal connecting lines.
• System Versatility: Works across both IP-based and 2-Wire LTS intercom platforms, giving installers flexibility depending on the site's cabling infrastructure.
• Modular Expansion: Part of a broader family of 1, 2, and 3-module frames, allowing scalable door station configurations for different site requirements.
• Weather-Resistant Housing: Suited to entrance point installation where the housing needs to withstand outdoor exposure.
• Simple Installation: Designed for straightforward mounting into a standard wall cavity, reducing on-site fabrication time for installers.

Typical Applications

This frame is intended for integrators and installers setting up an LTS video intercom entrance station where more than one module is required, such as pairing a camera/call module with a keypad, or a camera module with an information display. It is commonly used in multi-dwelling units, offices, gated communities, and commercial entry points where a tidy, flush-mounted door station is preferred over a surface-mounted alternative. Because it supports both IP and 2-Wire module types, it is a practical stocking item for distributors and trade installers servicing mixed intercom deployments.

What's in the Box

• Recessed back box
• Aluminium mounting frame
• Aluminium cover plate
• Mounting screws
• Internal connecting lines/cabling

Frequently Asked Questions

Q: Can this frame be used with both IP and 2-Wire LTS intercom modules?
A: Yes, the LTH-M201-2F is compatible with the modular M201 series used across LTS's IP and 2-Wire intercom ranges, provided the modules match the M201 mounting format.

Q: Does this frame come with the intercom modules included?
A: No, this is a mounting frame and back box kit only. Camera, keypad, or display modules are sold separately and slot into the frame.

Q: Is this suitable for outdoor installation?
A: Yes, it is designed for entrance door station use and constructed from aviation-grade aluminium for durability in typical outdoor entry conditions.

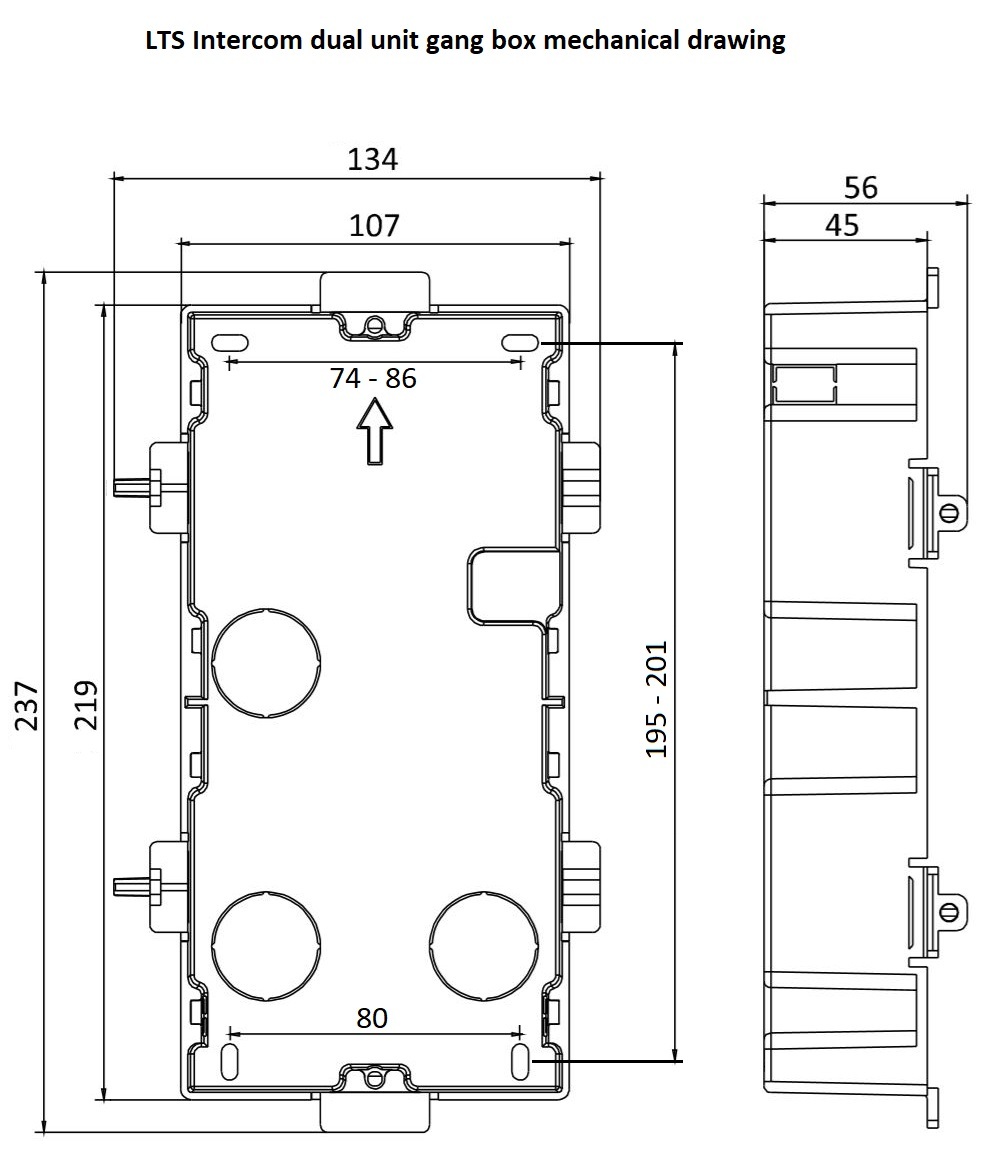

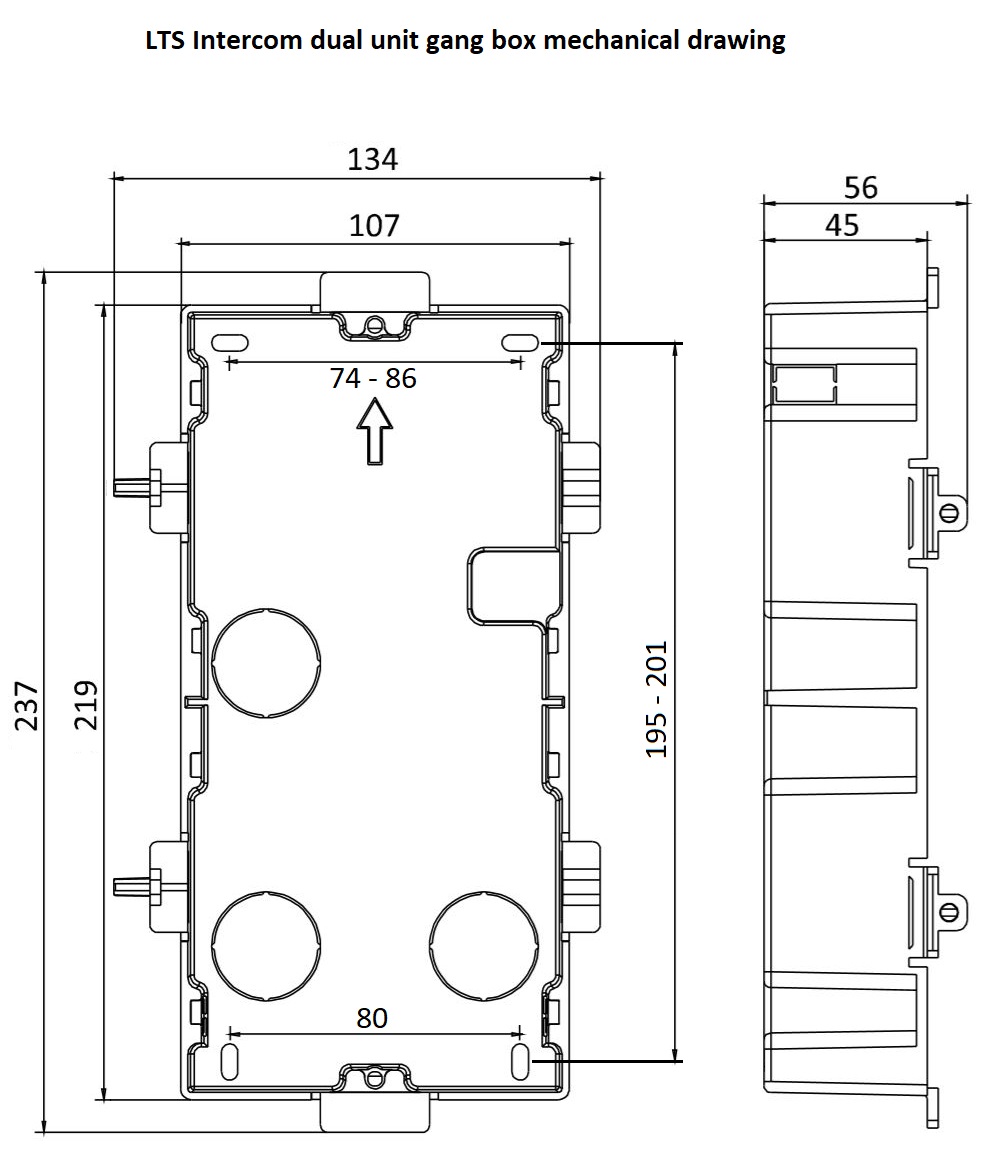

Product Images & Diagrams
