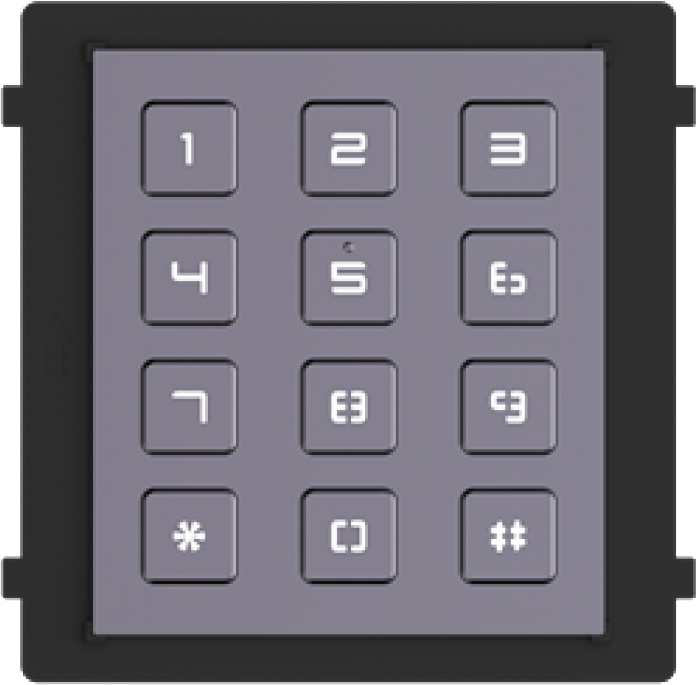

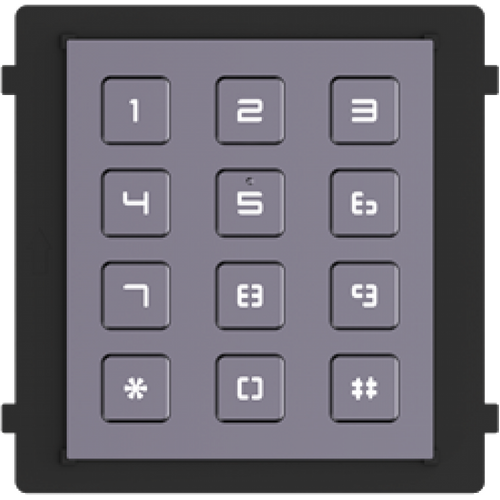

LTS 12-Button Backlit Keypad Module for IP/2-Wire Video Intercom

LTS 12-Button Keypad Module for Video Intercom Systems

The LTS LTH-M201-KP is a modular keypad accessory designed to extend the functionality of LTS IP and 2-Wire video intercom outdoor stations. Built to snap into the same rugged housing frame as other LTS M201-series modules, it adds resident room-number dialing and key-code door release to any compatible LTS intercom installation, making it ideal for apartment blocks, gated communities, offices, and multi-tenant buildings where quick, code-based entry is required alongside video calling.

Key Features

• 12-button backlit keypad for easy dialing of resident room numbers, even in low light
• Key-code door access allowing entry via a programmable password instead of only a card or app
• Supports up to three unlock codes per connected main module for flexible access management
• IP65-rated weatherproof housing suited to outdoor entrance panels
• IK7 vandal-resistant construction for durability in high-traffic or public-facing locations
• Flush or surface mounting options to suit different door frames and wall types
• Modular design that powers directly through the LTH-M201-C (IP) or LTH-M201-C-2 (2-Wire) camera modules, with no separate power supply needed
• Compact footprint of roughly 98.5 x 100 x 34.2 mm to fit standard LTS multi-module frames
• Compatible with LTS NVRs and the LTS Connect mobile app as part of a complete video intercom ecosystem

Where It Fits in an LTS Intercom Setup

This keypad module is not a standalone device; it is designed to be paired with an LTS M201-series camera/main module (either IP or 2-Wire variant) and an LTS indoor station or the LTS Connect app. Installers commonly add this module to residential entry panels, staff entrances, or gated pedestrian access points where a simple numeric code is preferred for visitors or staff who don't carry an access card. Because it shares power and communication with the main camera module, setup is straightforward for anyone already running an LTS video intercom system.

What's in the Box

• LTH-M201-KP keypad module
• Mounting screws and bracket hardware
• Quick start guide

Frequently Asked Questions

Does this module work on its own?
No. It must be connected to and powered by an LTS LTH-M201-C (IP) or LTH-M201-C-2 (2-Wire) camera/main module, which supplies the required 12V DC power.

Can I use it for both apartment calling and door release?
Yes. The keypad supports dialing a resident's room number as well as entering a key-code to release the door strike, with support for multiple stored unlock codes.

Is it suitable for outdoor installation?
Yes. It carries an IP65 weatherproof rating and IK7 impact resistance, making it suitable for exposed outdoor entry points.
