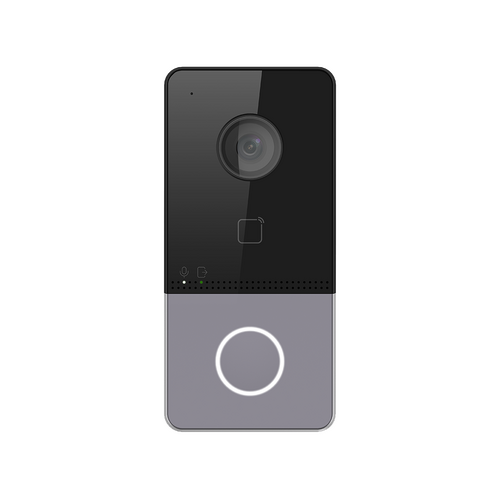

LTS LTH-303M-WIFI 2MP WiFi Video Intercom Door Station with MIFARE Card Reader

LTS LTH-303M-WIFI 2MP WiFi Video Intercom Door Station

The LTS LTH-303M-WIFI is a modern outdoor video door station built for villas, small offices, and controlled entry points that need reliable video calling, two-way audio, and integrated card access in a single weatherproof unit. Designed to suit both wired and wireless installs, it combines a sharp 2MP camera with True WDR, a built-in MIFARE card reader, and flexible WiFi, PoE, or 12V DC power options, making it a practical upgrade for anyone replacing an older analogue intercom or basic doorbell.

Key Features

• 2MP HD Camera with True WDR for clear, balanced video even in mixed indoor/outdoor lighting
• Wide 131° field of view using H.264 compression for efficient, high-quality video streaming
• Built-in infrared (IR) supplement for usable night-time footage at the front door or gate
• WiFi 2.4GHz connectivity for simple setup without running new cabling, plus support for wired 10/100 Ethernet
• Flexible power options including standard PoE or 12V DC, giving installers freedom depending on the site

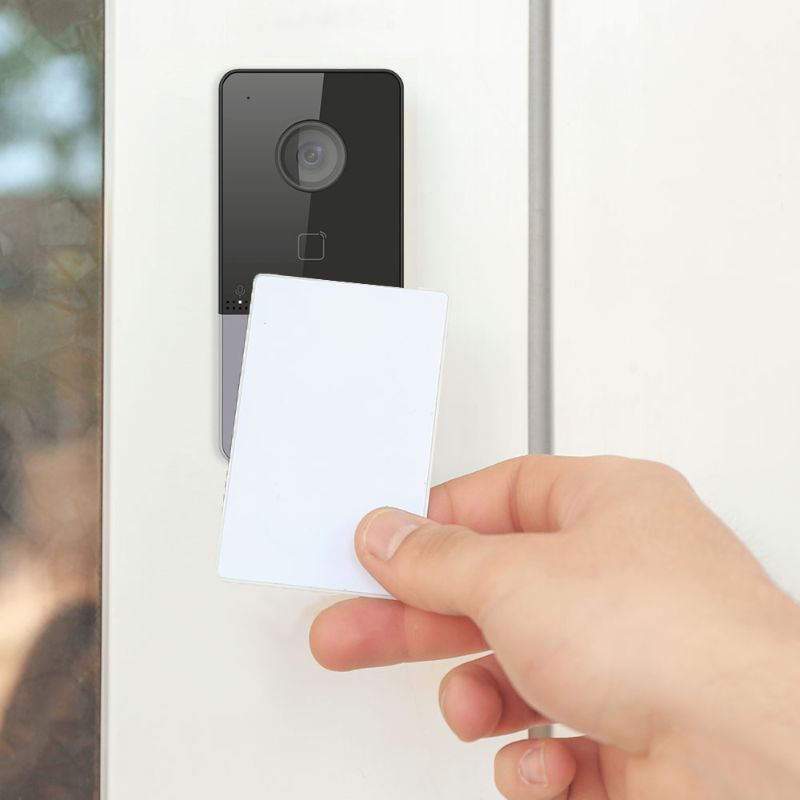

• Internal MIFARE card reader providing 1-channel indoor station access control alongside video calling

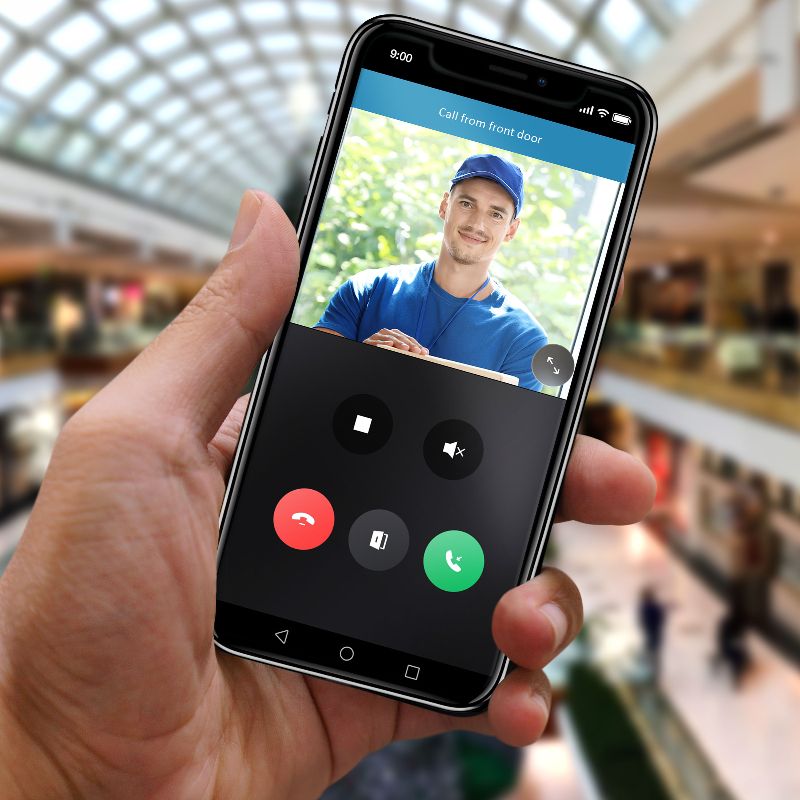

• Programmable calling button and remote web-based configuration for easy setup and management
• Noise suppression and echo cancellation with a built-in microphone and speaker for clear two-way conversations
• IP65-rated weatherproof housing in a slim, modern design with integrated status indicators

Ideal for Homes, Villas, and Small Business Entrances

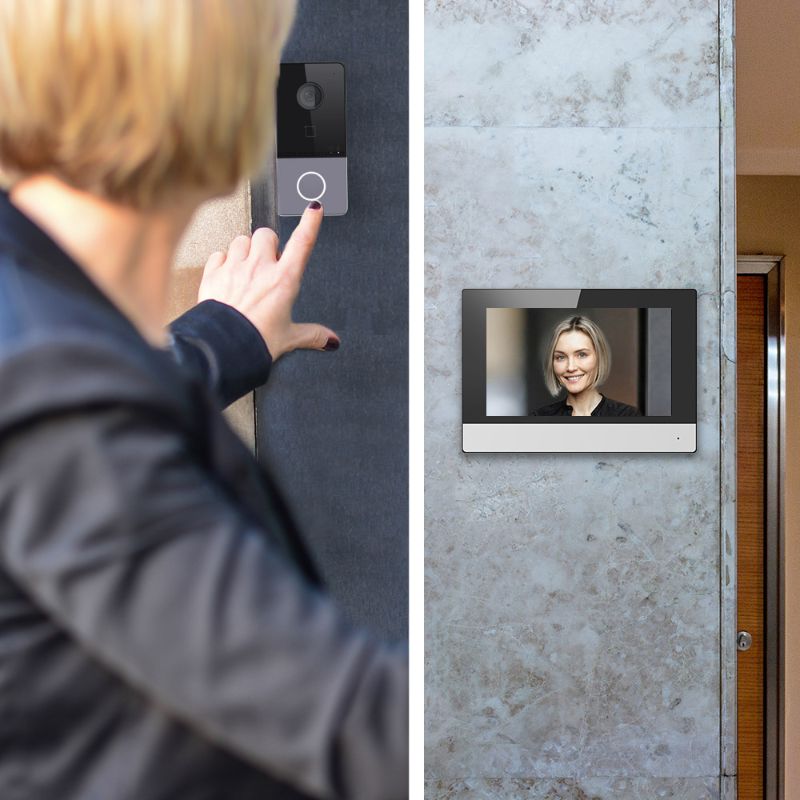

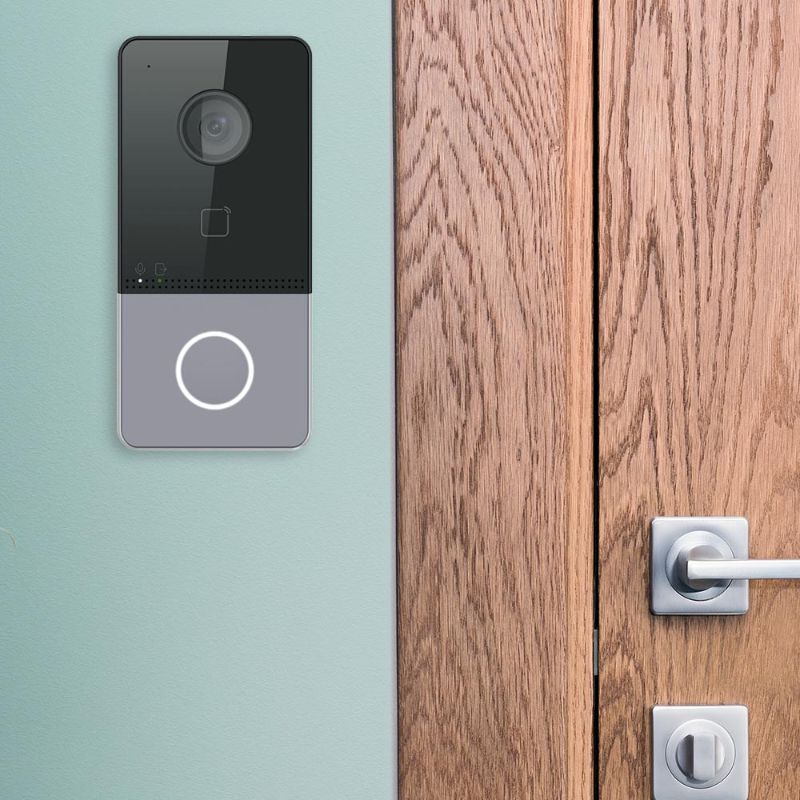

The LTH-303M-WIFI suits residential front doors, villa gates, small office entrances, and side or staff access points where a simple but capable video door station is needed. Because it supports both WiFi and PoE, it works well in retrofit situations where running new cable is impractical, as well as new builds where a wired PoE link is preferred for a more stable connection. The built-in MIFARE reader lets residents or staff tap a card for entry, while the calling button and two-way audio allow visitors to be seen and spoken with before the door is unlocked remotely.

What's in the Box

• LTH-303M-WIFI video intercom door station
• Mounting bracket and screws/fixings
• Quick start guide
• Note: the electric door lock is powered separately and is not included

Frequently Asked Questions

Does the LTH-303M-WIFI need an electric lock to work?
The door station can operate for video calling, audio, and card-based access on its own, but if you want it to trigger a physical door release, a compatible electric lock must be wired and powered separately.

Can I use WiFi instead of running a network cable?
Yes. The unit supports 2.4GHz WiFi for connectivity, so it can be installed without pulling new Ethernet cable, though a wired PoE connection is also supported for a more stable link.

Is this door station suitable for outdoor use?
Yes, it carries an IP65 weatherproof rating and includes infrared support, making it suitable for exposed outdoor entrances and gates in most climates.

Product Images & Diagrams

Additional Resources

• Quick Guide:
