LTS Platinum 7" IP PoE Video Intercom Indoor Monitor - Black/Silver

LTS Platinum 7" IP-PoE Video Intercom Indoor Monitor (Black/Silver)

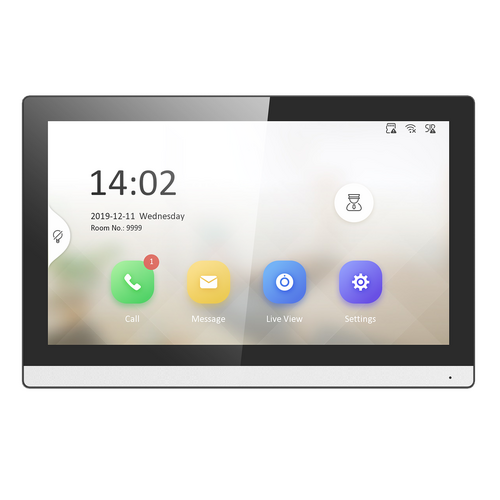

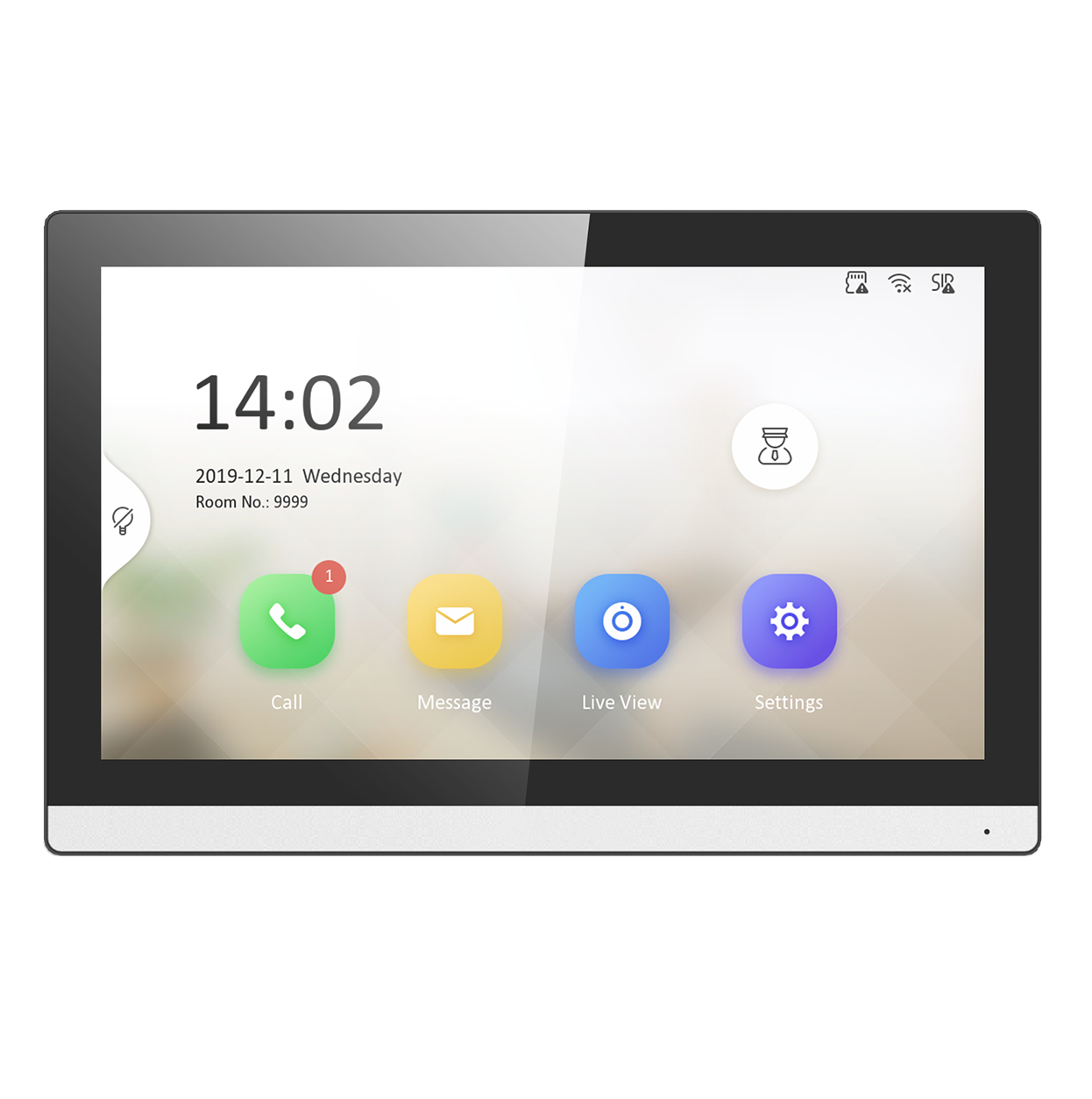

The LTS LTH-D311GY-WIFI is a network-based indoor monitor built for the LTS Platinum video intercom ecosystem. Running on an embedded Linux platform, this 7-inch touchscreen station lets residents and staff see, hear and communicate with visitors at the door, manage linked IP cameras, and release door locks remotely, all from a single wall-mounted panel. Powered by standard PoE or a 12V DC supply, it installs cleanly into new or existing structured cabling and can also connect over 2.4GHz Wi-Fi where running a network cable isn't practical.

Key Features

• 7-inch touchscreen display with 1024 x 600 resolution for crisp video calling and menu navigation
• Embedded Linux operating system for stable, responsive performance
• Hands-free built-in microphone and speaker for two-way audio without picking up a handset
• Dual connectivity via Ethernet (Standard PoE, 802.3af, 8W) or 802.11b/g/n Wi-Fi
• Local storage via Micro SD/TF card slot supporting up to 128GB for missed-call snapshots and messages
• 8-channel alarm inputs for integrating door contacts, PIRs or other zone sensors
• Remote monitoring and unlocking of linked door stations and IP cameras via client software or a mobile app
• Wide operating temperature range of -10°C to 50°C, suiting most indoor Australian installation environments
• Compact, slimline design measuring 175 x 113.5 x 21mm in a Black/Silver trim finish

Typical Applications

This monitor suits residential entries, apartment lobbies, offices, and gated properties where an IP-based video intercom system is preferred over legacy analogue intercoms. Because it can pull PoE from a single network cable, it's well suited to new builds and renovations wired for structured cabling, while the Wi-Fi option gives installers flexibility in retrofit projects. It pairs naturally with LTS Platinum IP door stations and can also pull live feeds from compatible LTS NVRs and IP cameras, making it a practical hub for small-to-medium security setups.

What's in the Box

• LTH-D311GY-WIFI 7" IP Indoor Monitor
• Wall mounting bracket and fixing hardware
• Power/network terminal connectors
• Quick installation guide

Frequently Asked Questions

Does this monitor need a separate power supply?
No, in most installs it draws power directly from a PoE-enabled switch or injector (802.3af). A 12V DC power input is also available as an alternative.

Can I use this monitor without running network cable?
Yes, the LTH-D311GY-WIFI supports 802.11b/g/n Wi-Fi connectivity as an alternative to a wired Ethernet connection.

Will it work with my existing LTS door station?
It's designed to pair with LTS Platinum IP door/outdoor stations and can also view linked IP cameras; check compatibility with your specific door station model before purchasing.
