LTS LTH-M201-C IP-PoE Intercom Camera Module with Fisheye Lens

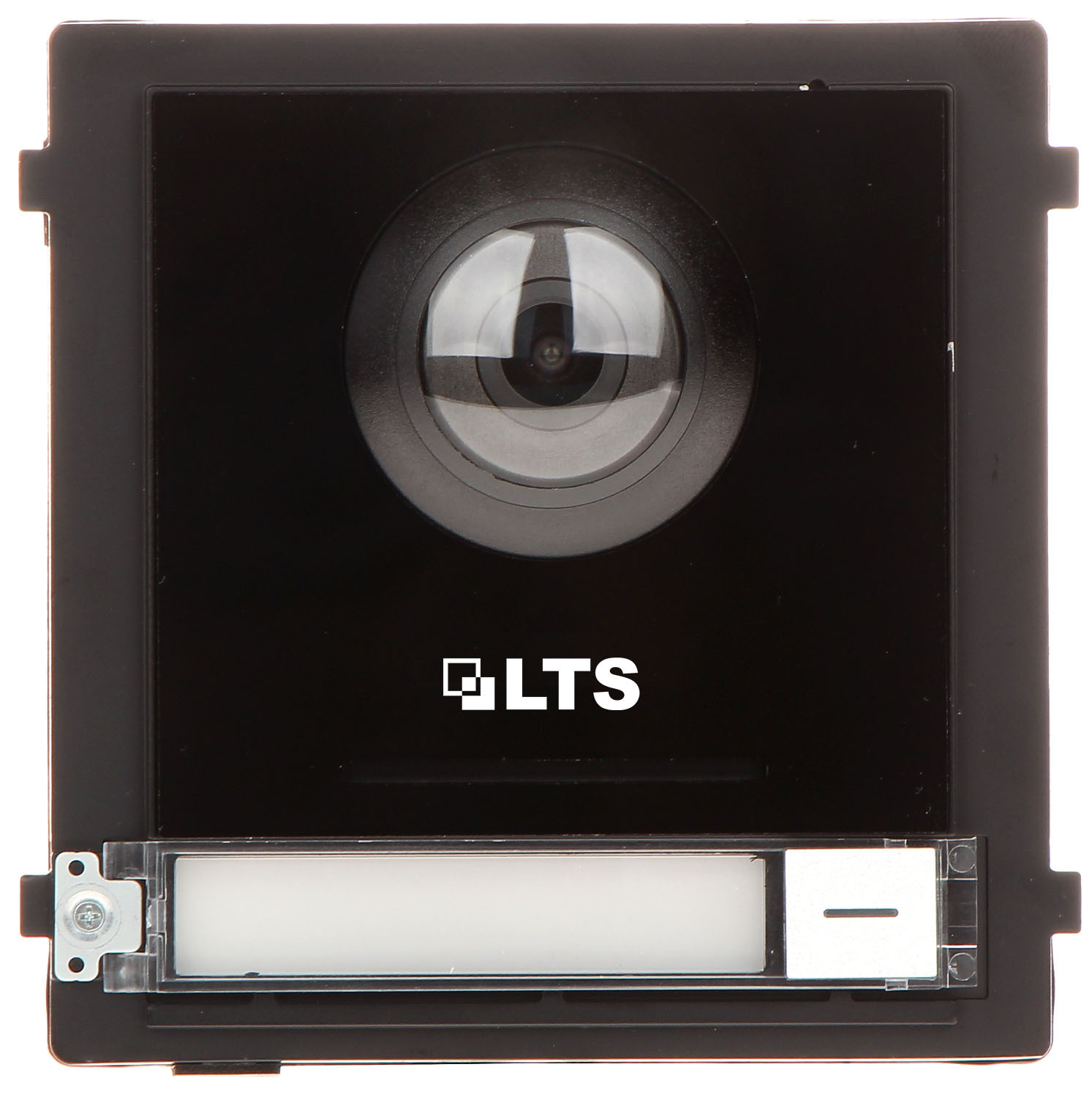

LTS LTH-M201-C IP-PoE Intercom Camera Module

The LTS LTH-M201-C is a PoE-powered outdoor camera module designed for LTS modular video intercom door stations. Built around a 2.0-megapixel fisheye sensor, it combines video, two-way audio and access-control triggering in a single weatherproof unit, making it a core building block for apartment blocks, offices, gated communities and other multi-tenant entry systems that run on an LTS NVR platform.

Key Features

• 2.0MP resolution at 1920x1080 for clear, detailed footage of visitors at the door
• 180° fisheye lens providing a wide field of view to capture the full doorway area
• Auto day/night switching with built-in IR illumination for reliable low-light performance
• H.264 compression for efficient, bandwidth-friendly video streaming
• BLC, DNR and WDR image processing for balanced exposure in high-contrast entryways
• Built-in omnidirectional microphone and loudspeaker with echo cancellation for natural two-way conversation
• Tamper alarm to flag unauthorised removal or interference with the unit
• IP65-rated housing rated for outdoor use across a wide -40°C to 60°C operating range
• Powered via 802.3af PoE or 12VDC, simplifying cabling to a single network run

Built for Modular Access Control

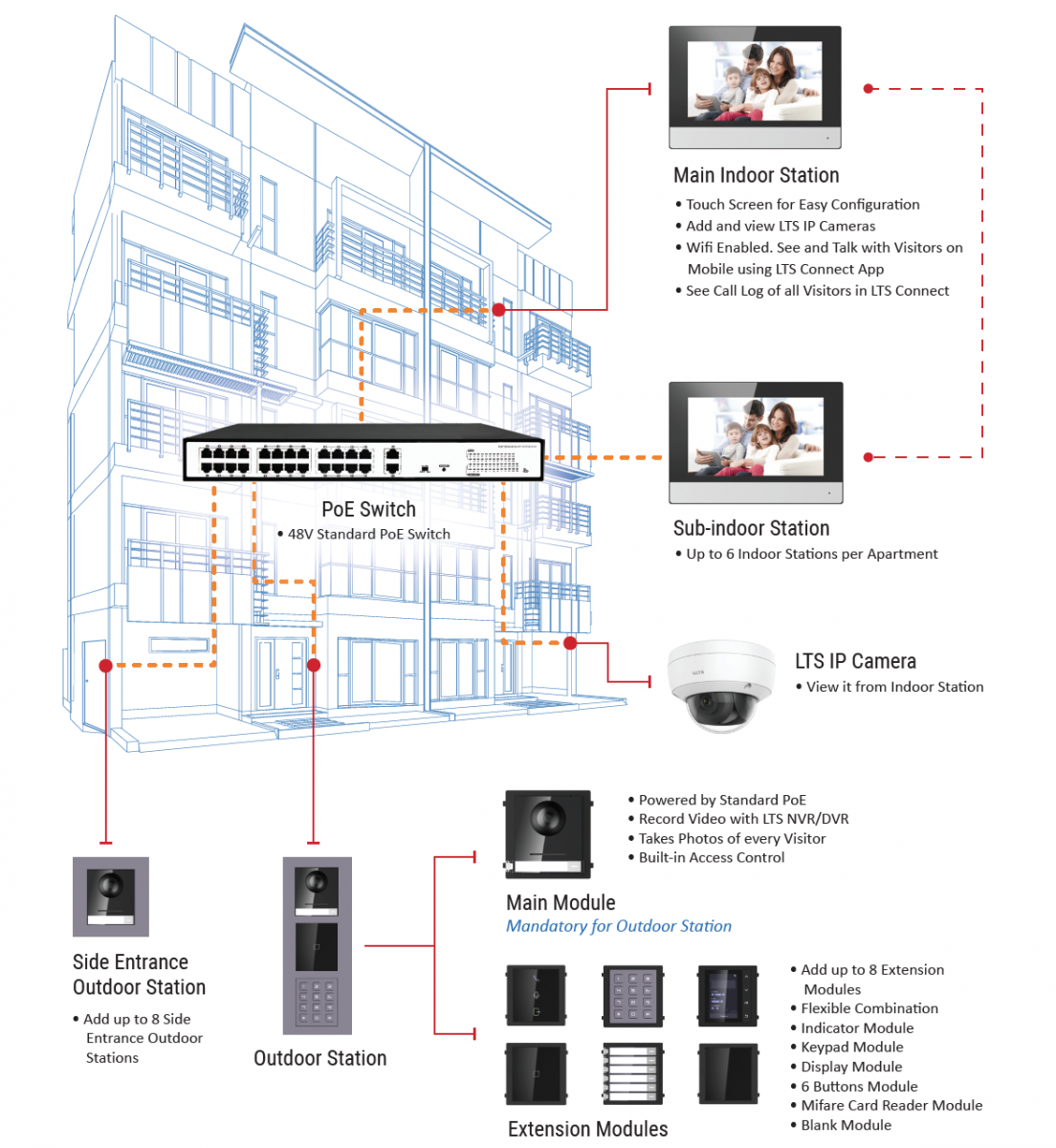

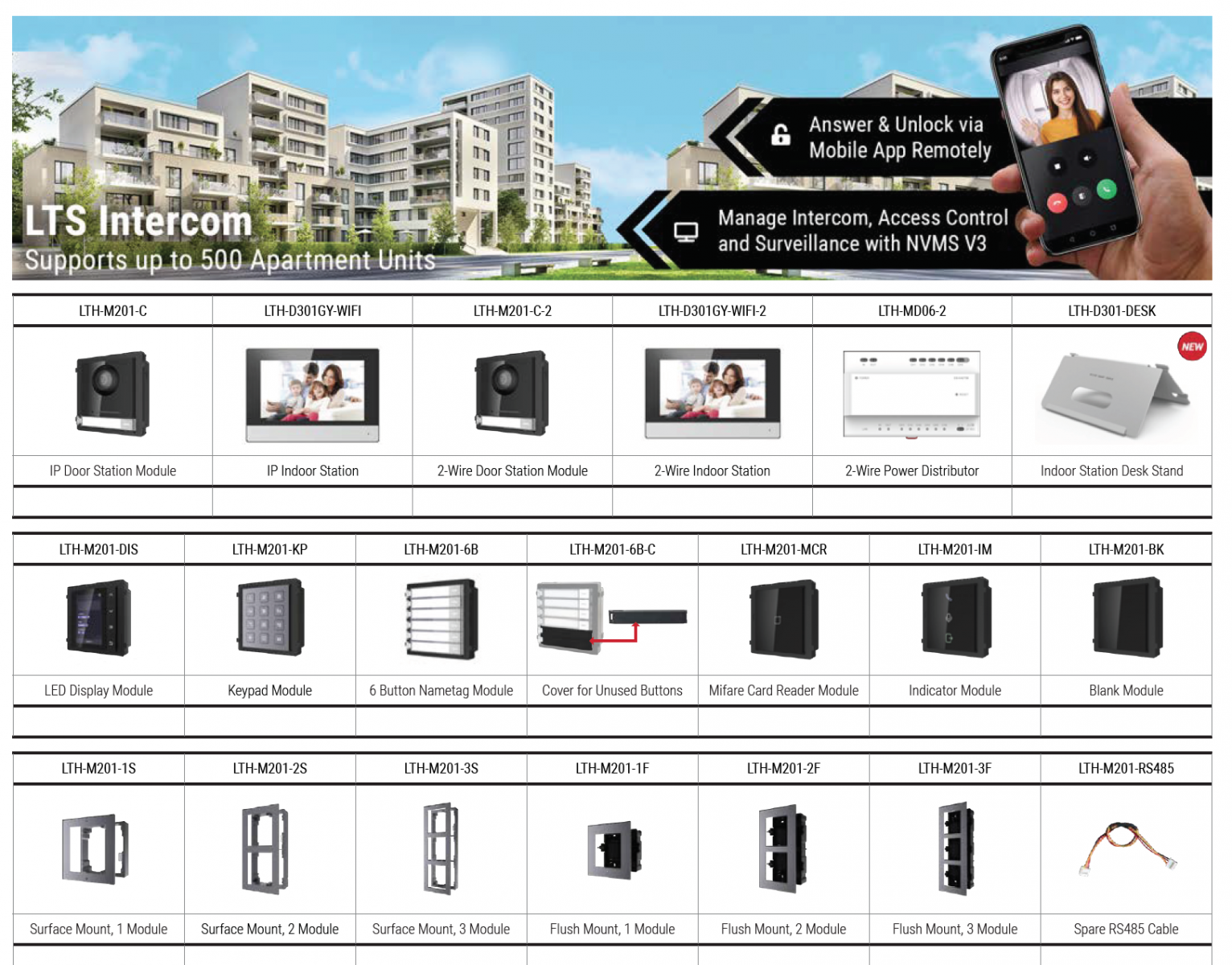

As part of the LTS modular intercom range, the LTH-M201-C is intended to slot into a multi-module door station frame alongside optional accessories such as keypad, card reader or nametag button modules, supporting configurations for buildings with multiple tenants or entry points. Because it integrates directly with compatible LTS NVRs, installers can centralise visitor call handling, video verification and door release within an existing LTS surveillance system rather than running a separate intercom platform. This makes it well suited to residential complexes, commercial entries, and any site where video-verified door access needs to sit alongside existing CCTV infrastructure.

What's in the Box

• LTH-M201-C IP-PoE Intercom Camera Module
• Mounting bracket and fixing screws

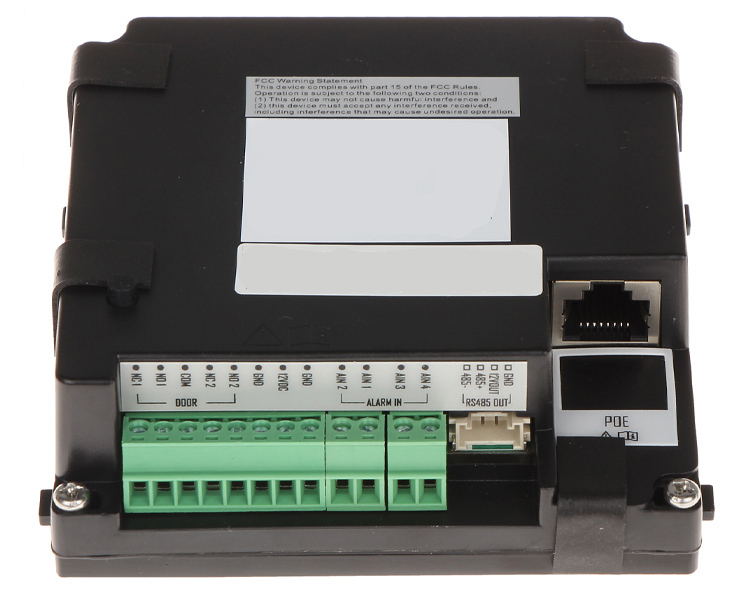

• Terminal connectors for wiring
• Quick installation guide

Frequently Asked Questions

Does the LTH-M201-C need a separate power supply?
No. It can be powered over a single Ethernet cable using 802.3af PoE, or via a 12VDC supply where PoE isn't available.

Can this module control a door lock directly?
The module's output is intended for triggering compatible relay or lock control hardware; a separate power source is required for the lock itself, and third-party devices should not be powered from the module's output.

Is the LTH-M201-C weatherproof for outdoor entrances?
Yes, it carries an IP65 ingress protection rating and an extended operating temperature range, making it suitable for exposed outdoor door stations.

Product Images & Diagrams

Additional Resources

• Quick Guide Download
• Terminal Diagram - New
• Lock Diagram
