LTS Platinum LTB361 Extension Pole for Pendant Mount Camera Brackets

LTS Platinum LTB361 Extension Pole for Pendant Mount Camera Brackets

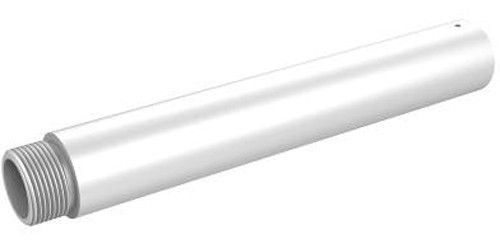

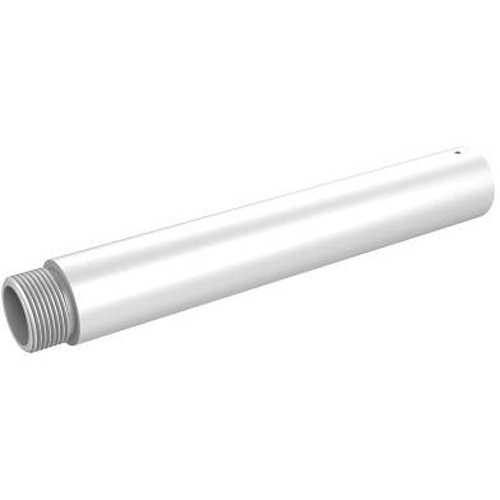

The LTS Platinum LTB361 is a purpose-built aluminium extension pole designed to increase the ceiling drop length of compatible LTS pendant mount brackets. It is engineered to connect with the LTB371 pendant mount (used for Matrix IR dome cameras) and the LTB759 pendant mount (used for outdoor fisheye and multi-lens cameras), allowing installers to position a dome or fisheye camera further away from the ceiling surface. This is especially useful in installations with high ceilings, false ceiling voids, or where additional clearance is needed to achieve the correct camera height and field of view.

Key Features

• Durable aluminium alloy construction for long-term indoor or outdoor durability
• Extends the drop height of compatible LTS pendant mount brackets by approximately 545mm
• 130mm outer diameter matches the profile of LTB371 and LTB759 pendant mounts for a clean, seamless join
• Designed to suit LTS Platinum Matrix IR dome cameras and outdoor fisheye/multi-lens camera series
• Internal cable pass-through keeps power and data cabling protected and hidden from view
• Threaded/coupling connection allows secure attachment between the camera pendant mount and the ceiling or mounting surface
• Simple bolt-together installation compatible with standard LTS bracket hardware
• Neutral finish blends with typical commercial ceiling and soffit installations

Where It's Used

The LTB361 extension pole is typically specified by installers working on commercial and industrial CCTV projects where the standard pendant mount drop is too short to clear obstructions such as ductwork, signage, false ceiling cavities, or where a lower camera position is required for optimal coverage. It is commonly paired with LTS Platinum dome and fisheye cameras in retail stores, warehouses, car parks, and office foyers where a discreet, professional-looking ceiling-mounted camera setup is preferred over wall mounting.

What's in the Box

• 1 x LTB361 aluminium extension pole
• Mounting hardware/coupling fittings for connection to compatible pendant mounts
• Installation instructions

Frequently Asked Questions

• Which brackets is the LTB361 compatible with? It is designed to work with the LTB371 pendant mount for Matrix IR dome cameras and the LTB759 pendant mount for outdoor fisheye and multi-lens cameras.
• Does the LTB361 include a camera bracket? No, this is an extension pole only. A compatible pendant mount bracket (such as LTB371 or LTB759) and the camera itself are required separately.
• Can this be used outdoors? Yes, the aluminium construction is suitable for both indoor and outdoor commercial CCTV installations when paired with a weather-rated camera and mount.
