Ajax ManualCallPoint Blue Wireless Resettable Emergency Button

Ajax ManualCallPoint Blue Wireless Resettable Emergency Button

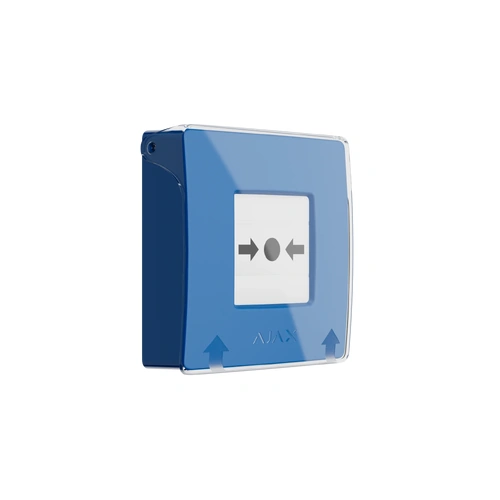

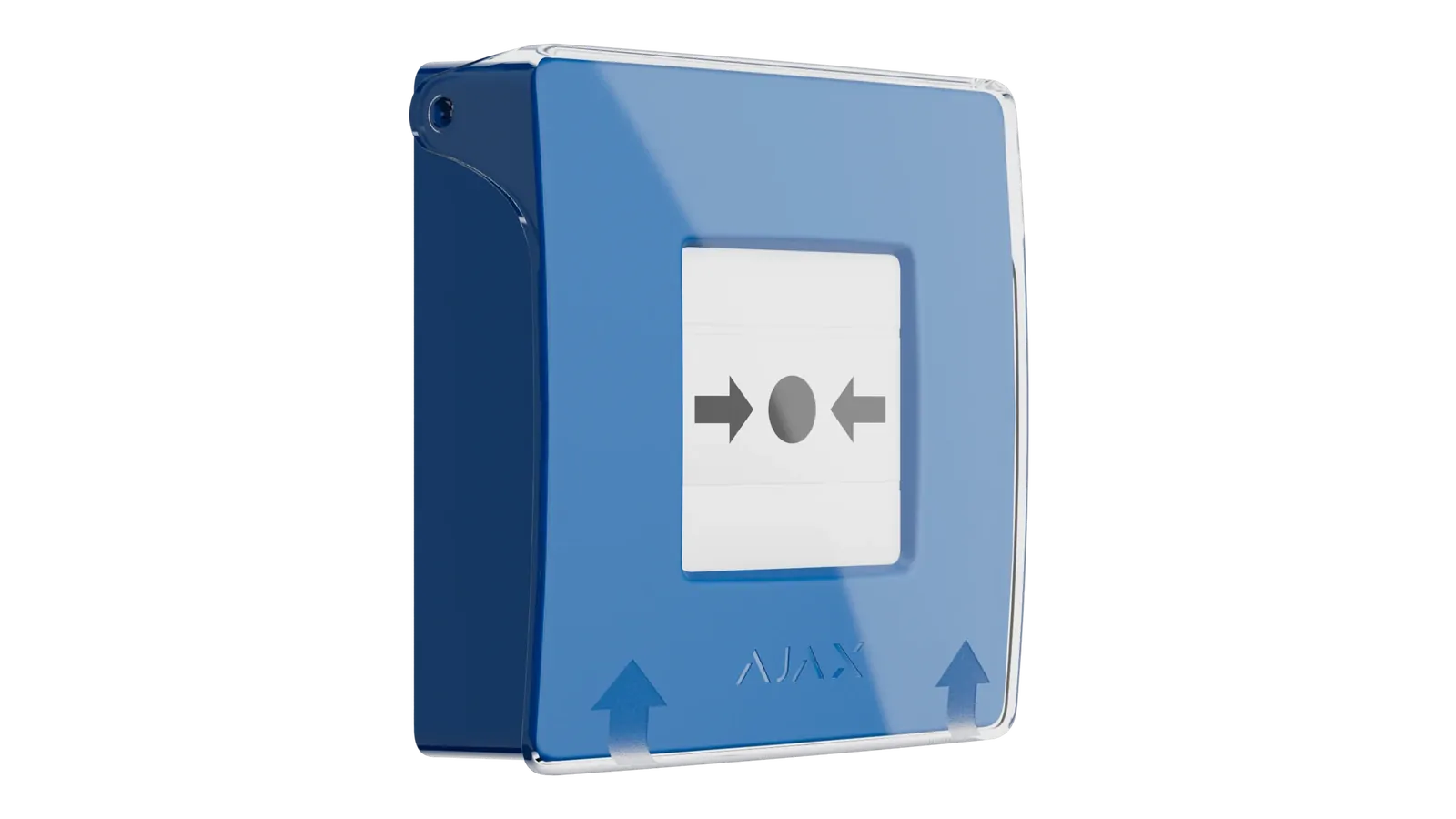

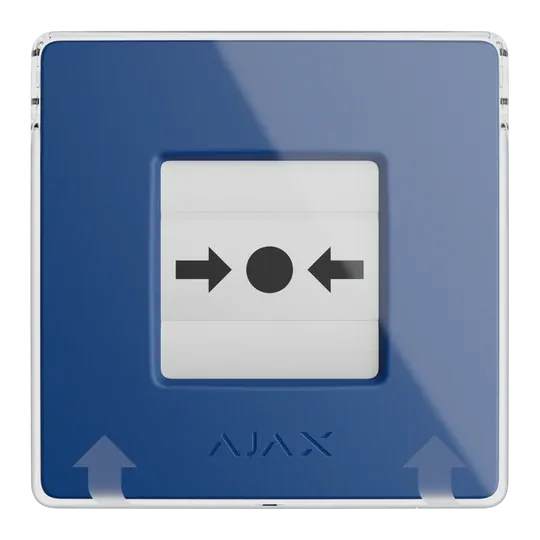

The Ajax ManualCallPoint (Blue) Jeweller is a wireless, wall-mounted emergency button designed to trigger alarms or automation scenarios at the press of a button. Unlike the fixed Fire Alarm-only Red variant, the Blue version is a flexible, resettable call point that can be configured for scenario triggering and gives installers the option to disable automatic alarm transmission to the central monitoring station. Built on Ajax's proprietary Jeweller radio protocol, it integrates seamlessly into any Ajax security or life-safety system for fast, reliable manual activation in emergencies.

Key Features

• Two-way Jeweller wireless communication with encrypted, frequency-hopping radio transmission for interference resistance
• Long range connectivity of up to 1,700 metres to the Ajax hub in open, line-of-sight conditions
• Resettable frangible element mechanism, built with few moving parts to minimise the risk of failure during an emergency
• Optional transparent protective lid to reduce the chance of accidental activation
• Advanced anti-tamper protection that alerts if the unit is removed from its SmartBracket mounting panel
• Remote configuration and monitoring via the Ajax mobile and desktop apps, including battery status and device health
• Long-life power supply from two pre-installed CR123A batteries, rated for up to 7 years of typical use
• Includes a special reset tool (key) so the button can be safely restored after activation
• Configurable operating mode: Fire Alarm or Scenario Trigger, with adjustable CMS alarm reporting on the Blue variant

Typical Applications

The ManualCallPoint Blue is ideal for offices, retail premises, warehouses, schools, and residential properties that use an Ajax security ecosystem. It suits scenarios where a facility manager wants a single push-button to activate evacuation lighting, unlock exits, cut power to equipment, or trigger custom automation sequences, in addition to or instead of a strict fire-alarm response. Because it works entirely wirelessly, it is well suited to retrofits and heritage buildings where running new cabling is impractical.

What's in the Box

• ManualCallPoint (Blue) Jeweller button unit

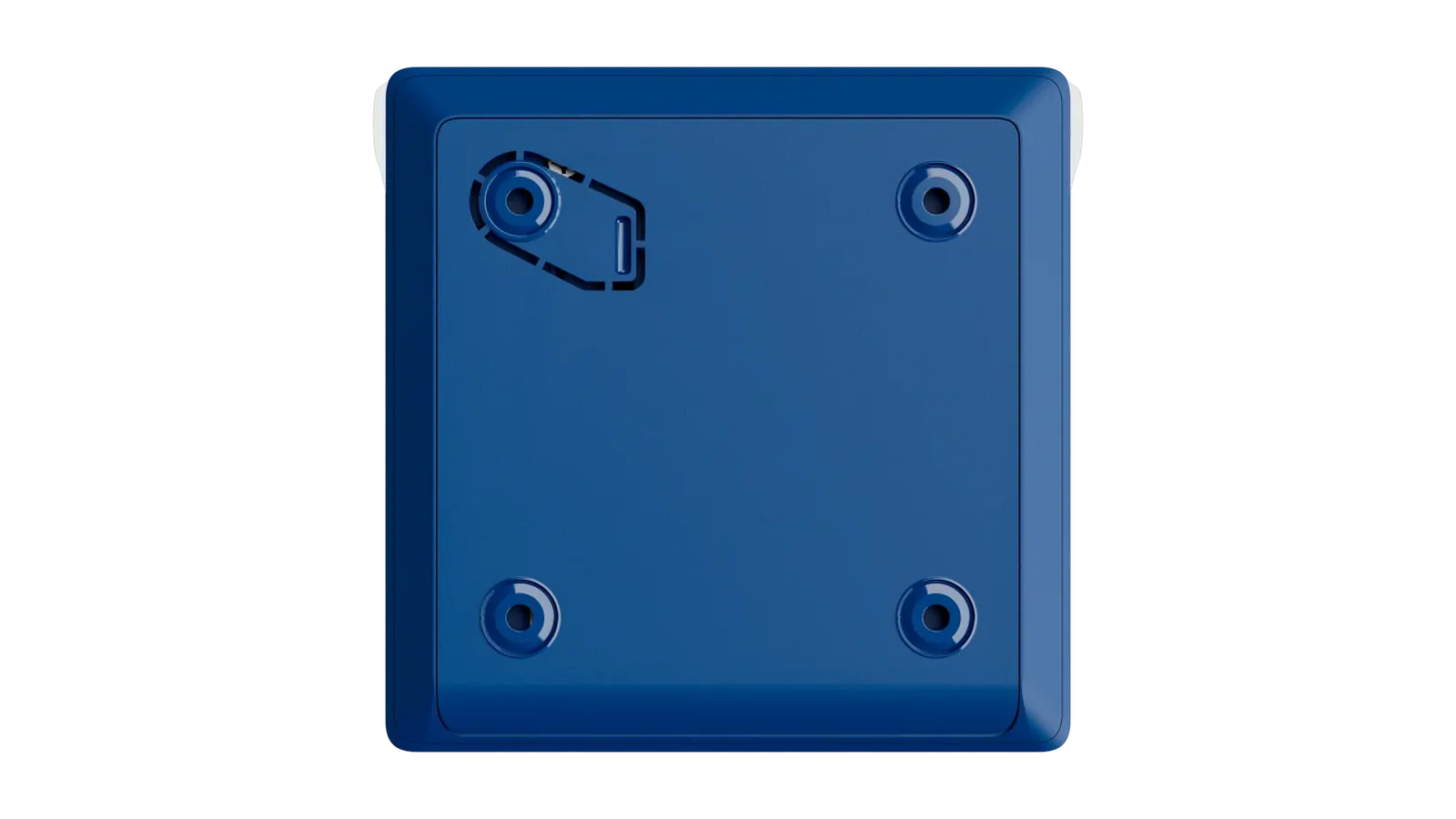

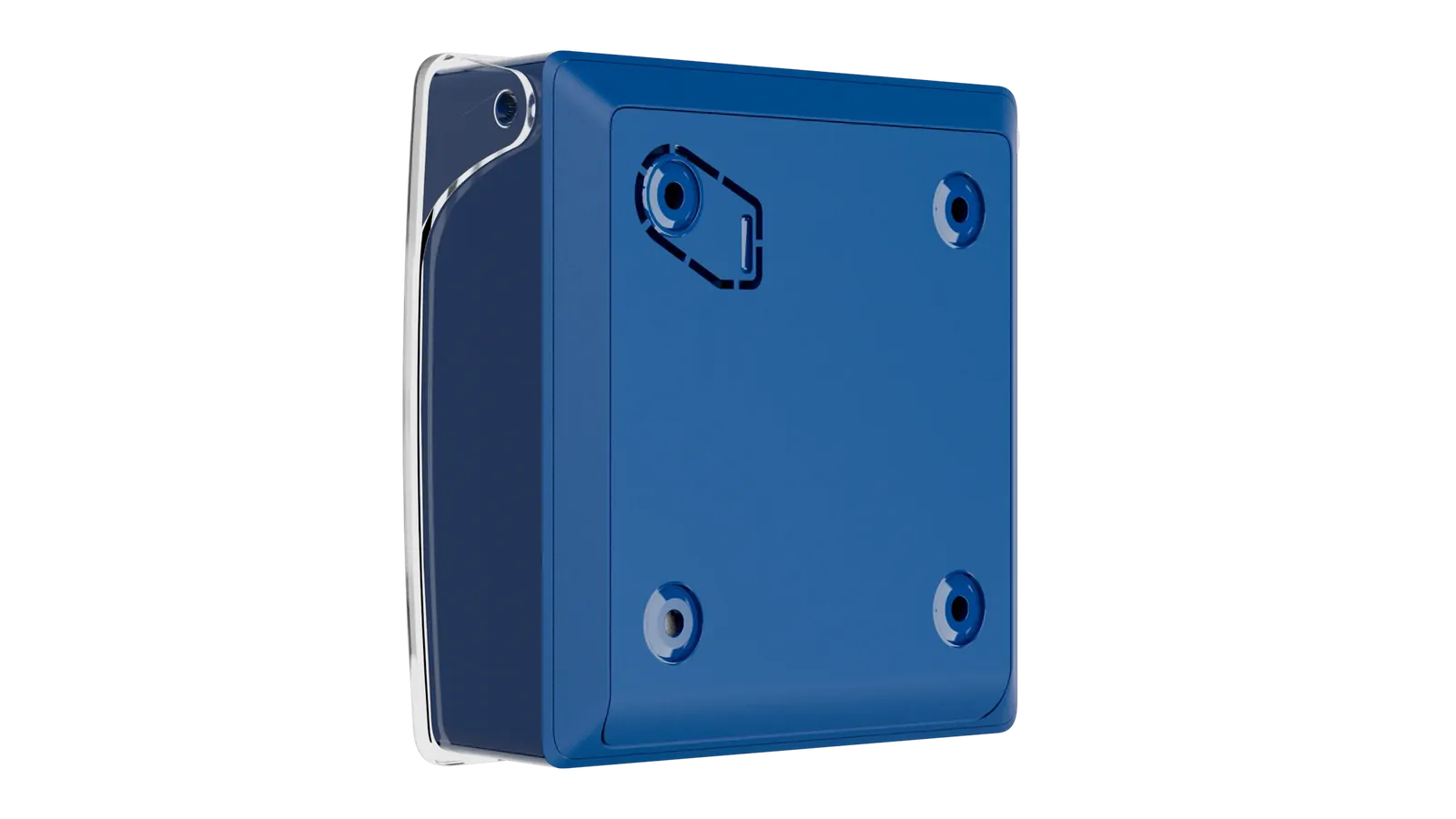

• SmartBracket mounting panel with tamper sensor
• Transparent protective lid

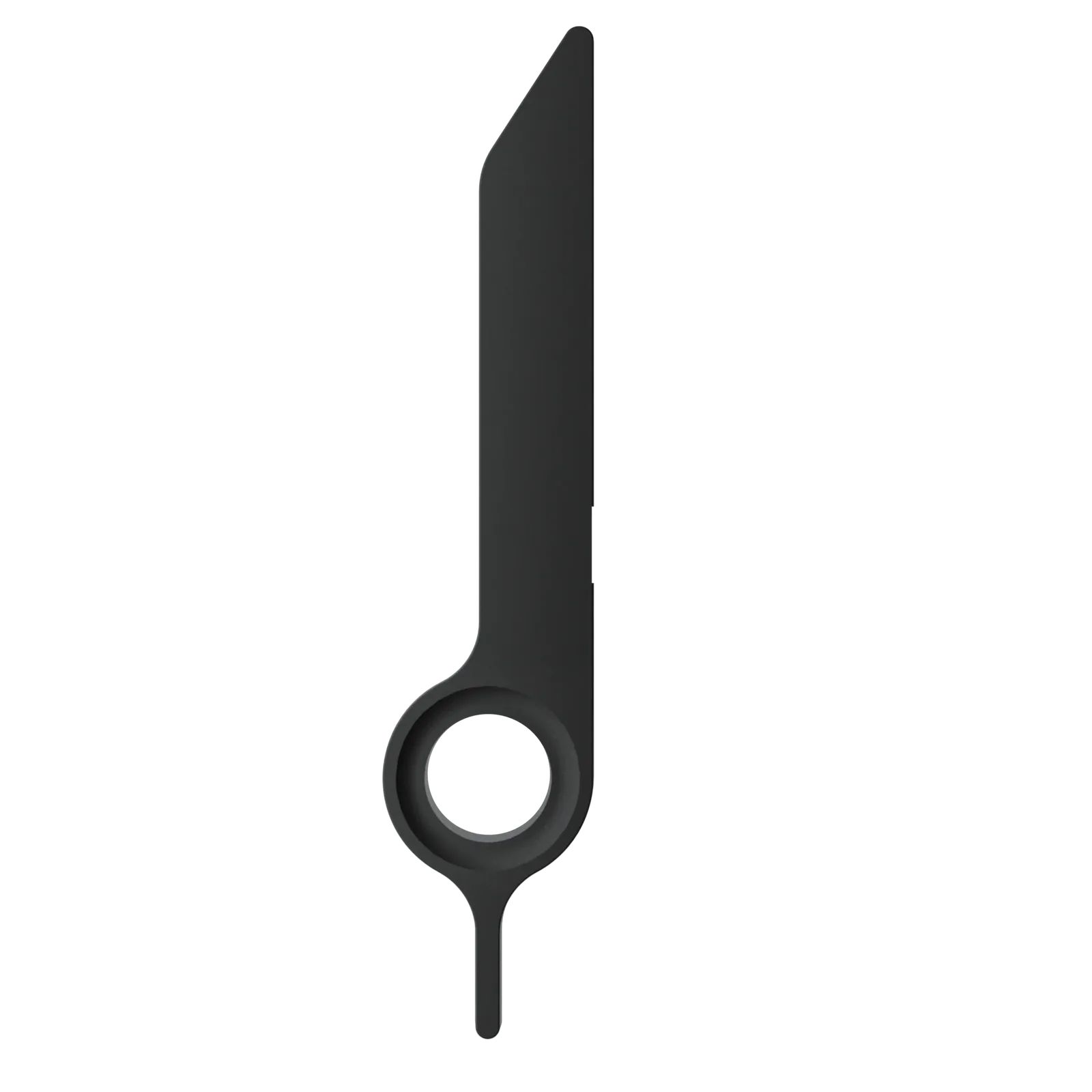

• Special reset tool (key)
• 2 x CR123A batteries (pre-installed)
• Mounting screws and installation hardware

Frequently Asked Questions

Does the ManualCallPoint Blue need an Ajax hub?
Yes, it requires an Ajax hub or control and indicating equipment (CIE) running an up-to-date OS Malevich firmware to operate.

Can it be used outdoors?
No, this device is designed for indoor installation only.

What is the difference between the Blue and Red versions?
Both share the same resettable mechanism, but the Blue version allows scenario-based automation and the option to disable automatic CMS alarm transmission, whereas the Red version defaults to a dedicated fire-alarm mode.
