Ajax ManualCallPoint Red Wireless Fire Alarm Call Point

Ajax ManualCallPoint Red Wireless Fire Alarm Call Point

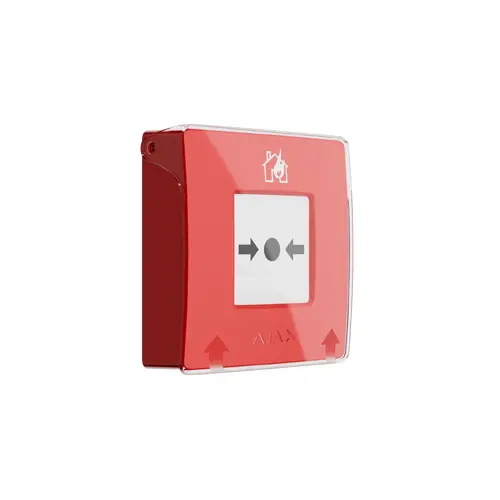

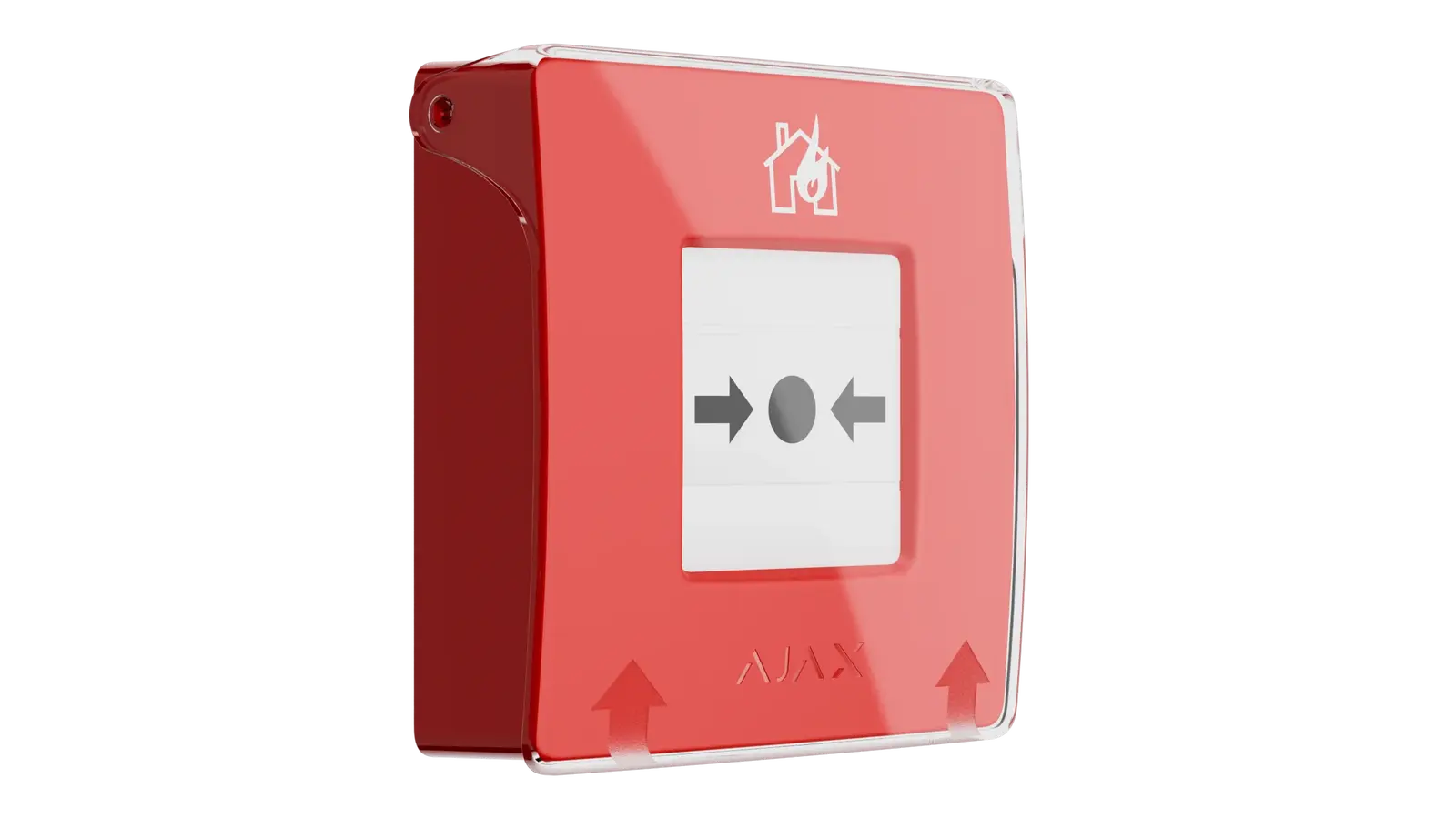

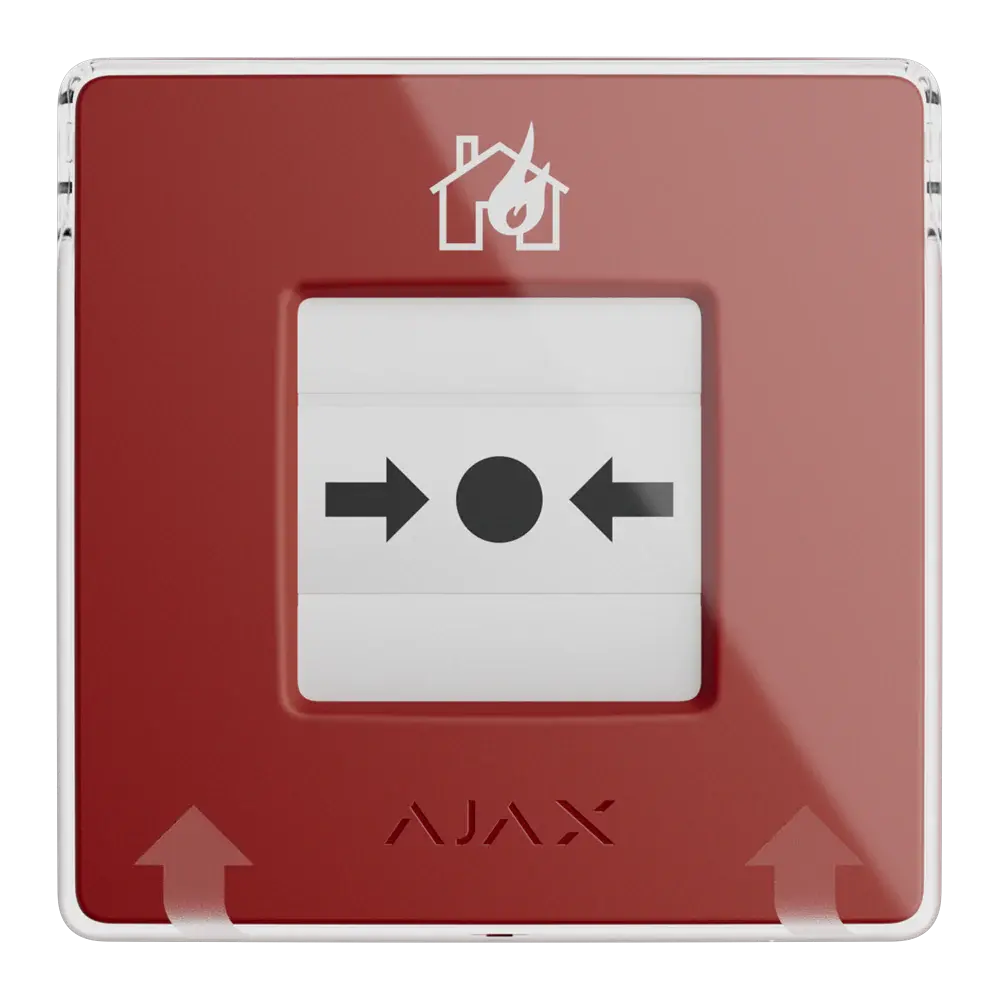

The Ajax ManualCallPoint (Red) Jeweller is a wall-mounted, wireless manual call point designed to let anyone raise a fire alarm quickly and reliably. Built for the Ajax ecosystem, it communicates with an Ajax hub over the long-range Jeweller radio protocol, instantly triggering the built-in sirens of connected fire detectors and notifying users and the monitoring station the moment the button is pressed.

Key Features

• Simple activation: lifting the transparent lid and pressing the resettable frangible element instantly raises the alarm.
• Long wireless range: maintains a stable connection with the hub or a range extender at distances of up to 1,700 metres in open space.
• Reliable Jeweller protocol: two-way, encrypted radio communication with frequency hopping helps prevent jamming or interception.
• Continuous self-monitoring: the Ajax system checks the device's status every minute, so no manual test-triggering is required.
• Long battery life: runs on two pre-installed CR123A batteries for up to 7 years under typical use.
• Tamper and sabotage protection: a built-in tamper switch alerts users and the security company if the unit is removed from its mounting bracket.

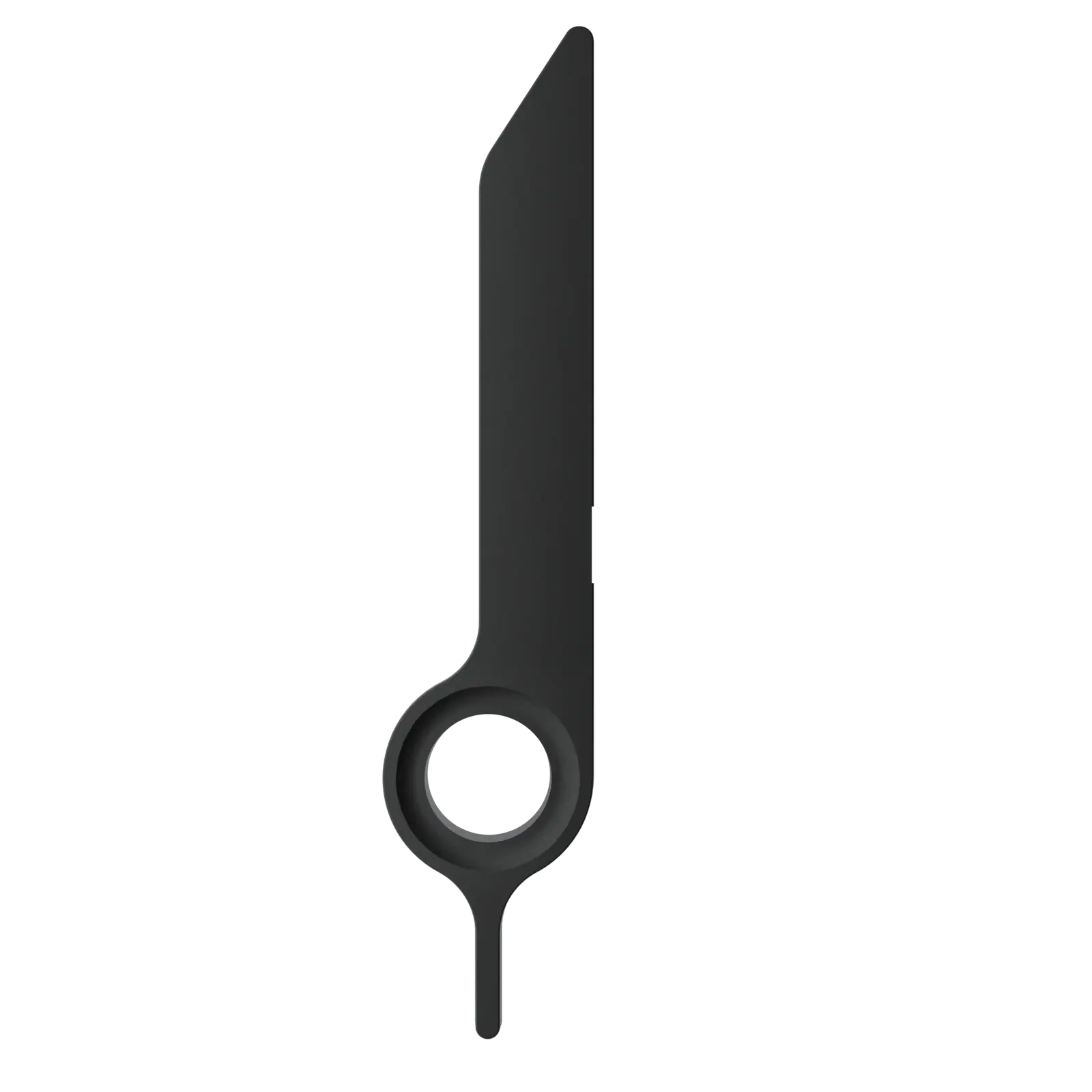

• Reusable design: a special tool (key), included with the device, resets the frangible element so the call point can be used again after activation.
• Guaranteed alarm forwarding: alarms from the Red version are always sent to the central monitoring station, making it well suited to residential fire protection.

Typical Use Cases

This call point is ideal for homes, apartments, and small commercial premises where occupants need an immediate, tactile way to alert others and emergency services during a fire. Because it pairs wirelessly with compatible Ajax hubs and range extenders, it can be installed in hallways, stairwells, or near exits without running cables, and it integrates with the rest of an Ajax fire and security system to automatically sound connected sirens throughout the property.

What's in the Box

• Ajax ManualCallPoint (Red) Jeweller call point
• SmartBracket mounting panel
• Two CR123A batteries (pre-installed)
• Special reset tool (key)
• Mounting hardware and installation guide

Frequently Asked Questions

Does this call point need a hub to work? Yes, it requires an Ajax hub or control panel with up-to-date firmware, as it communicates over the Jeweller wireless protocol rather than operating standalone.

Can the alarm be silenced or deactivated by a user? No, on the Red version an alarm signal is always forwarded to the monitoring station once triggered; only the Blue variant allows a user to cancel the alert.

Is it suitable for outdoor use? No, the ManualCallPoint Red is designed strictly for indoor installation.
