LTS 140mm Universal Base & Plate Mount for Turret & Dome Cameras

LTS 140mm Universal Camera Base & Plate (LTB-140-UAP)

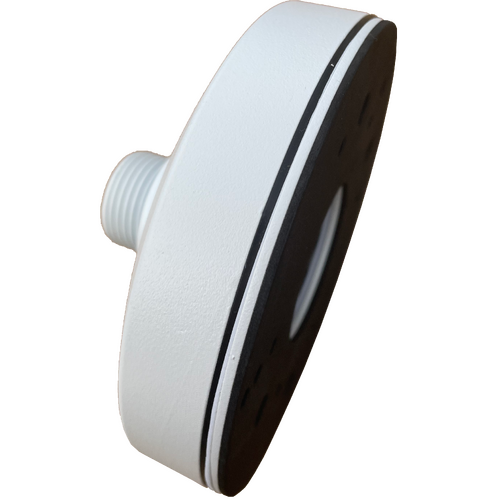

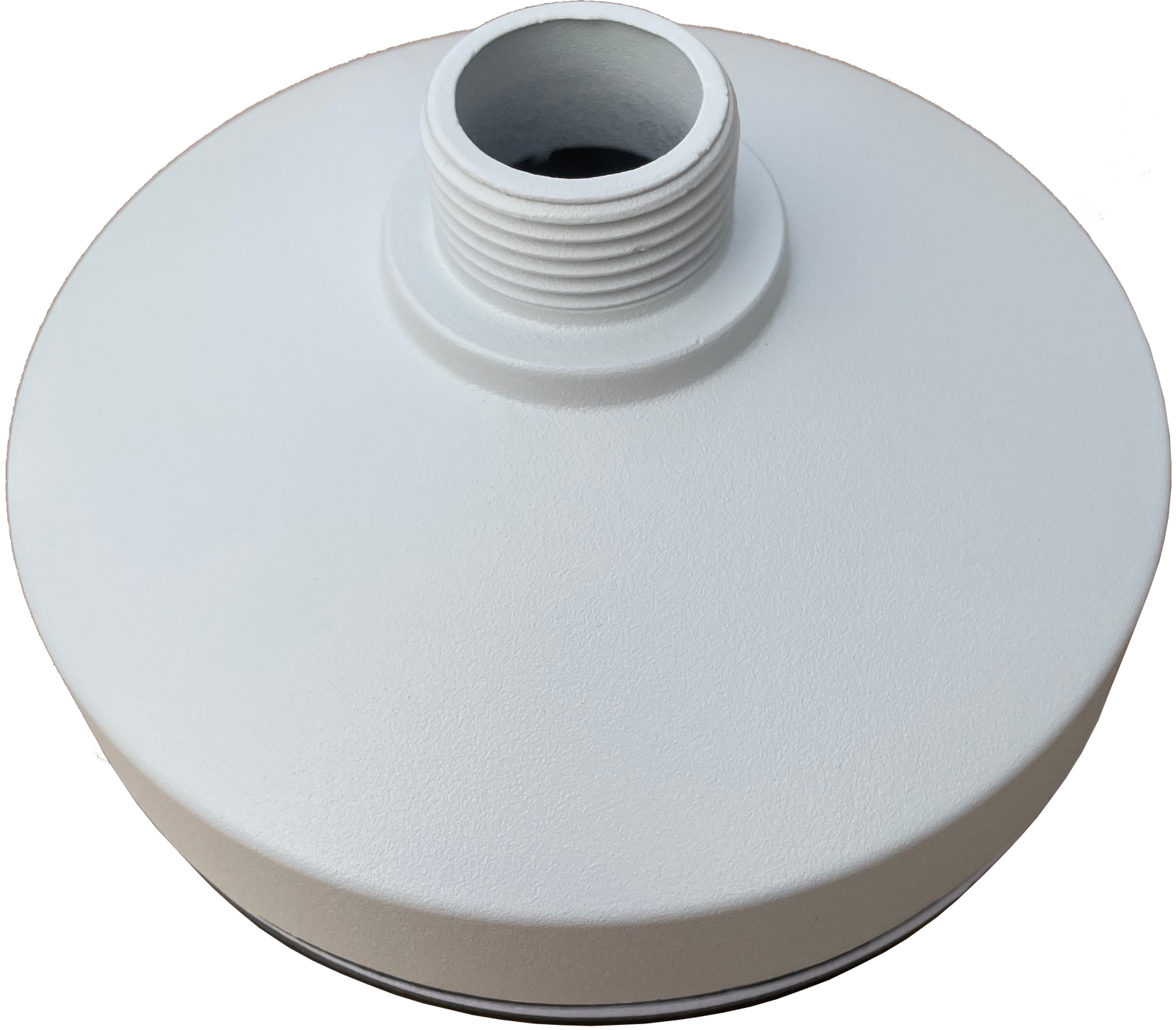

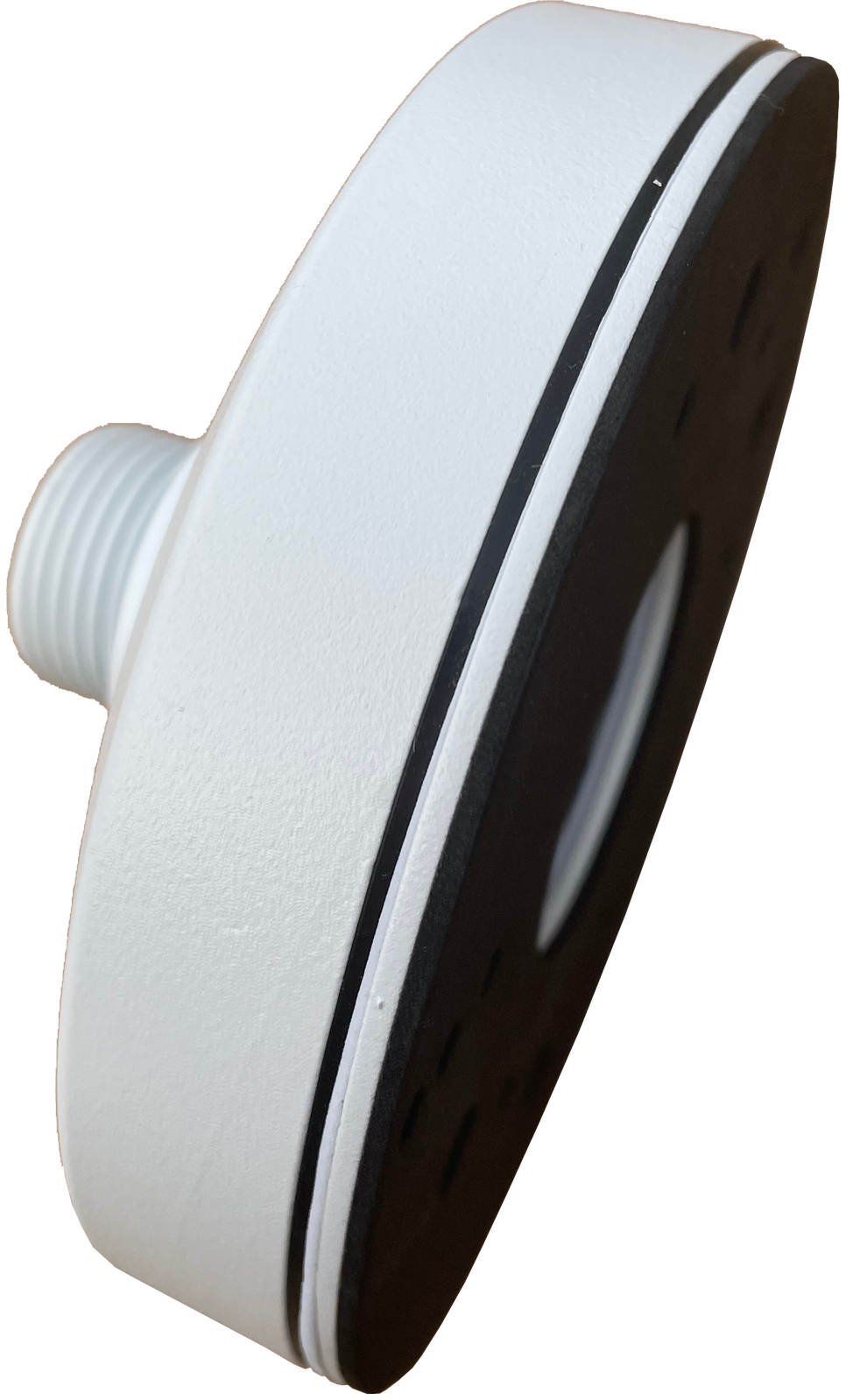

The LTS LTB-140-UAP is a universal 140mm base and mounting plate engineered to suit a wide range of LTS Platinum turret and dome-style security cameras. Designed as a foundation accessory rather than a full bracket, it gives installers a solid, weather-ready starting point for wall or ceiling mounted camera installations, and includes two EPDM gaskets to help seal cable entry points against moisture and dust.

Key Features

• Universal 140mm diameter base and plate designed to suit LTS Platinum turret and dome camera housings
• Compatible with LTS Platinum IP turret and dome camera series including CMIP 10, 30, 32, 33, 3C, 3D and 3T ranges
• Compatible with LTS HD-TVI turret and dome camera series including CMHT 17, 18 and 19 ranges

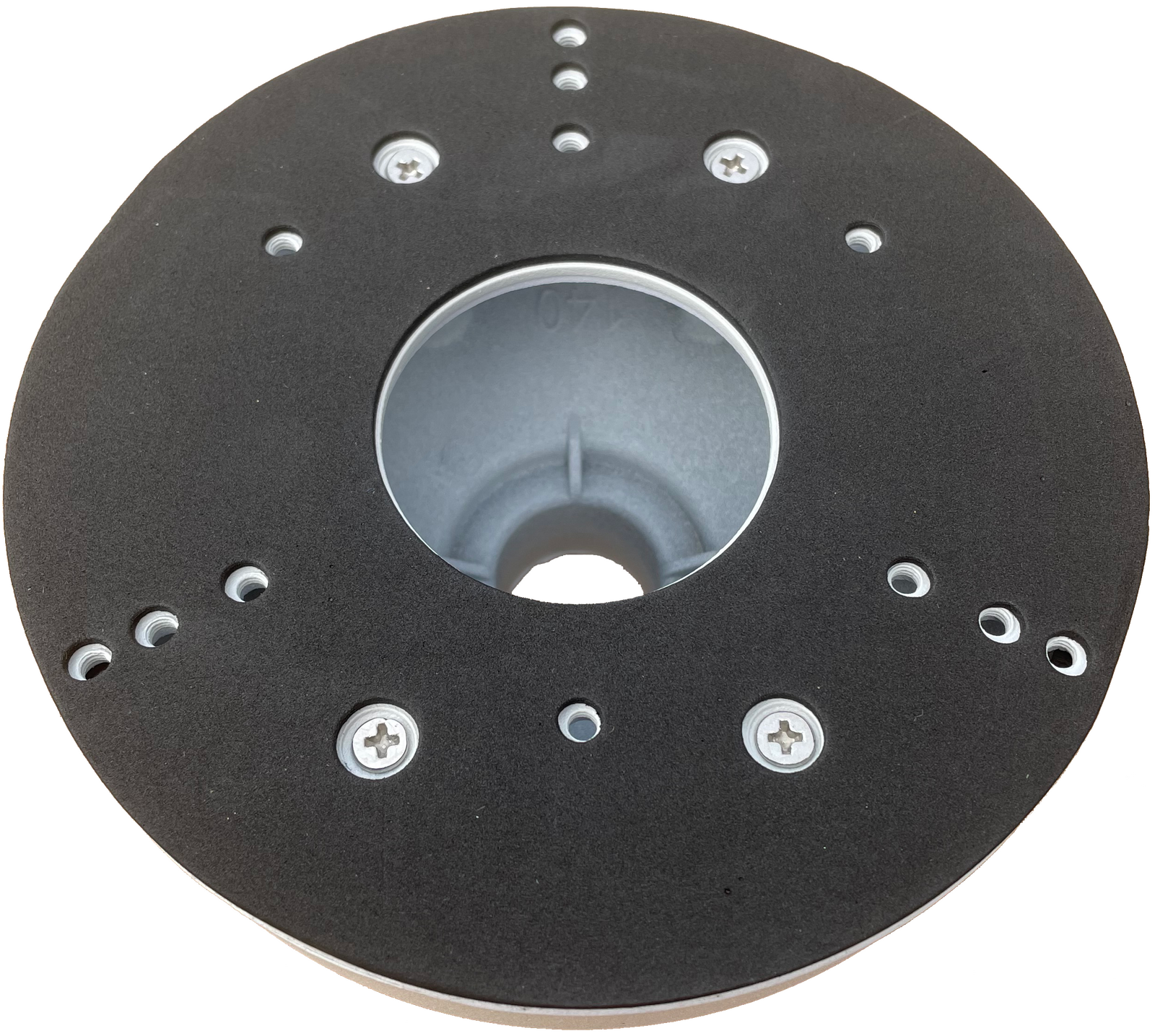

• Supplied with two EPDM rubber gaskets to help weatherproof the cable pass-through and mounting surface
• Solid base and plate construction with an overall height of approximately 70mm
• Acts as an intermediary mounting surface between the wall/ceiling and the camera's own housing
• Simplifies cable concealment and routing behind the camera during installation
• Suitable for both indoor and outdoor surveillance deployments
• Forms part of the broader LTS Camera Brackets - Platinum accessory line for consistent, tidy installs

Typical Applications

This base and plate is intended for installers and integrators fitting LTS Platinum turret or dome cameras onto flat walls or ceilings where a clean, universal mounting interface is needed before attaching the camera housing itself. Because it is compatible across multiple CMIP and CMHT camera series, stocking the LTB-140-UAP allows a security installer to standardise on a single base plate for many different camera models, reducing the number of unique accessories that need to be carried on a job or held in warehouse stock. The included EPDM gaskets help protect the mounting point and cable entry from water ingress, making the base plate a practical choice for exterior turret and dome installations as well as indoor deployments.

What's in the Box

• 1 x LTS Universal 140mm Base & Plate
• 2 x EPDM Weatherproof Gaskets
• Mounting fixings (where applicable to the installation surface)

Frequently Asked Questions

Which cameras does the LTB-140-UAP fit?
It is designed to suit LTS Platinum IP turret and dome cameras from the CMIP 10, 30, 32, 33, 3C, 3D and 3T series, as well as HD-TVI turret and dome cameras from the CMHT 17, 18 and 19 series.

Does the base plate include weatherproofing?
Yes, it ships with two EPDM gaskets that help seal the cable entry point and mounting surface, making it suitable for outdoor use in addition to indoor installations.

How is the LTB-140-UAP different from the LTB-UAP plate?
The LTB-140-UAP is the full base and plate assembly at approximately 70mm in height, while the related LTB-UAP is a slimmer standalone 140mm plate at around 5mm in height, sharing the same camera compatibility.

Additional Resources

• LTS Camera Brackets Summary Chart
