LTS LTB701 Aluminum Junction Box Base Extender for Dome Cameras

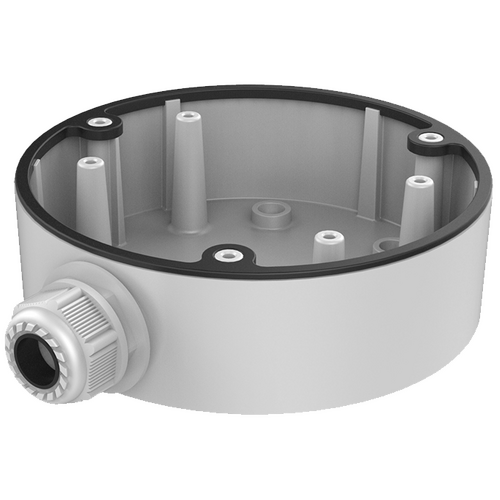

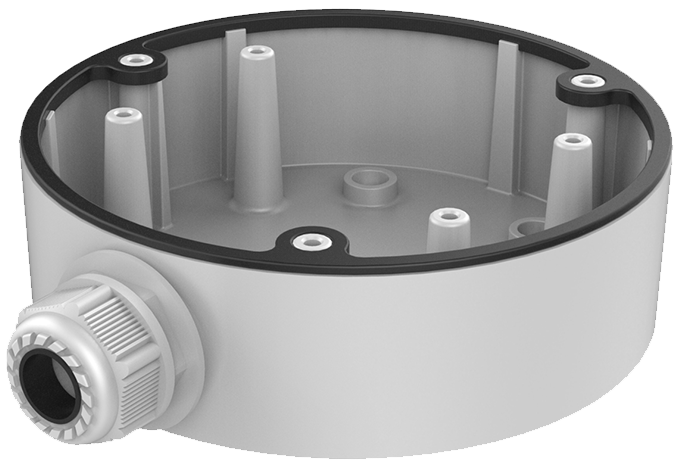

LTS LTB701 Aluminum Junction Box Base Extender

The LTS LTB701 is a purpose-built base extender and junction box designed to simplify cabling and mounting for compatible LTS Platinum dome cameras. Constructed from durable aluminium alloy, it creates a clean, weatherproof cavity behind the camera base so that power, network, and video cabling can be routed through a wall or ceiling conduit rather than left exposed. This keeps installations tidy, protects wiring from tampering, and gives installers a professional finish on both indoor and outdoor CCTV projects.

Key Features

• Conduit-entry design that allows cabling to be fed directly through the wall or ceiling into the camera base
• Aluminium alloy construction for long-term durability and resistance to knocks in high-traffic or exposed areas
• Compact low-profile footprint of approximately 137 mm diameter by 42 mm height, keeping the camera close to the mounting surface
• Lightweight build at roughly 280 g, adding minimal load to the camera mounting point
• Purpose-matched fit for select LTS Platinum dome camera series, ensuring correct screw hole alignment and cable clearance
• Concealed wiring cavity that helps protect connections from dust, moisture, and accidental damage
• Simple installation using standard mounting screws, suited to both new builds and camera retrofits
• Neutral white finish that blends with common ceiling and wall colours

Ideal Applications

The LTB701 is best suited to installers upgrading or replacing compatible LTS Platinum dome cameras where existing conduit runs into the wall or ceiling. It is commonly used in retail stores, offices, warehouses, and residential installations where cabling needs to be hidden for a cleaner look and improved tamper resistance. Because it extends the camera base slightly away from the mounting surface, it also helps accommodate junction boxes or conduit fittings that would otherwise sit flush against a standard dome base.

What's in the Box

• 1 x LTB701 aluminium junction box / base extender
• Mounting screws and fixings
• Installation instructions

Frequently Asked Questions

Which cameras is the LTB701 compatible with? It is designed for select LTS Platinum dome camera series that share a matching base mount pattern; check the LTS camera bracket compatibility chart or confirm your exact camera model before ordering.

Can the LTB701 be used outdoors? Yes, its aluminium construction is suitable for both indoor and outdoor mounting, provided the camera itself is rated for the installation environment.

Does the LTB701 include cabling? No, it is a passive mounting and wiring management accessory; cables and conduit fittings are supplied separately.

Additional Resources

• LTS Camera Brackets Summary Chart
