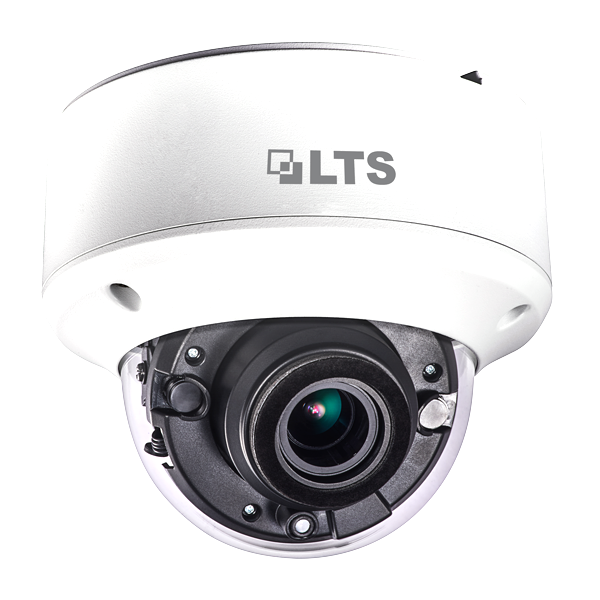

LTS Platinum 3MP HD-TVI Motorized Vandal Dome Camera 2.8-12mm

LTS Platinum 3MP HD-TVI Motorized Vandal Dome Camera (2.8-12mm)

The LTS Platinum CMHD35T3DW-Z is a 3-megapixel HD-TVI vandal-resistant dome camera built for professional outdoor and indoor surveillance where lens flexibility and rugged durability matter. Featuring a motorised 2.8-12mm varifocal lens, this camera lets installers remotely adjust zoom and focus from the DVR menu, saving time on ladders and making it easy to fine-tune coverage for entrances, car parks, loading docks, and perimeter fencing. Paired with a compatible HD-TVI 3.0 recorder, it delivers crisp, high-resolution footage with strong low-light performance and true wide dynamic range for scenes with harsh backlighting or mixed lighting conditions.

Key Features

• 3MP High-Definition Sensor: Delivers sharp 2052 x 1536 resolution imaging for clear identification of faces, vehicles, and license plates.
• 2.8-12mm Motorised Varifocal Lens: Adjustable zoom and focus controlled remotely via the DVR's OSD menu, eliminating manual on-site adjustments.
• True WDR 120dB: Balances bright and shadowed areas in the same frame for reliable detail in challenging lighting.
• Matrix IR 2.0 Night Vision: Infrared illumination reaching up to 131ft (40m) for strong nighttime coverage.
• IP66 Weatherproof and IK10 Vandal-Resistant Housing: Rated for outdoor exposure and built to withstand impact and tampering.
• Flexible Power Options: Runs on DC 12V or AC 24V, giving installers flexibility across different site wiring setups.
• 3-Axis Adjustable Bracket: Allows precise mounting angle adjustment on walls or ceilings.
• UTC/OSD Control: On-screen menu accessible over coax via compatible HD-TVI 3.0 DVRs, simplifying setup and configuration.

Ideal Applications

This dome camera suits retail stores, warehouses, schools, apartment complexes, and commercial building perimeters where a durable, weather-resistant camera with adjustable zoom is needed. Its vandal-resistant housing and IP66 rating make it a strong fit for publicly accessible outdoor areas such as entryways, stairwells, and car parks, while the motorised lens allows technicians to dial in the exact field of view required without needing to physically swap lenses.

What's in the Box

• CMHD35T3DW-Z Dome Camera
• Mounting Bracket and Screws
• Security Torx Key (for vandal-resistant housing)
• Installation/Quick Start Guide

Frequently Asked Questions

Does this camera need a special DVR?
Yes. This is an HD-TVI 3.0 camera and must be used with an HD-TVI 3.0 compatible DVR to achieve full 3MP resolution and enable remote zoom/focus control.

Can this camera be used outdoors?
Yes, it carries an IP66 weatherproof rating and IK10 impact resistance, making it suitable for exposed outdoor installations.

Can I adjust the zoom after installation?
Yes, the motorised 2.8-12mm lens can be adjusted remotely through the DVR's on-screen menu without physically accessing the camera.
