LTS Platinum 5MP HD-TVI Vandal Dome Camera - 2.8mm Fixed Lens

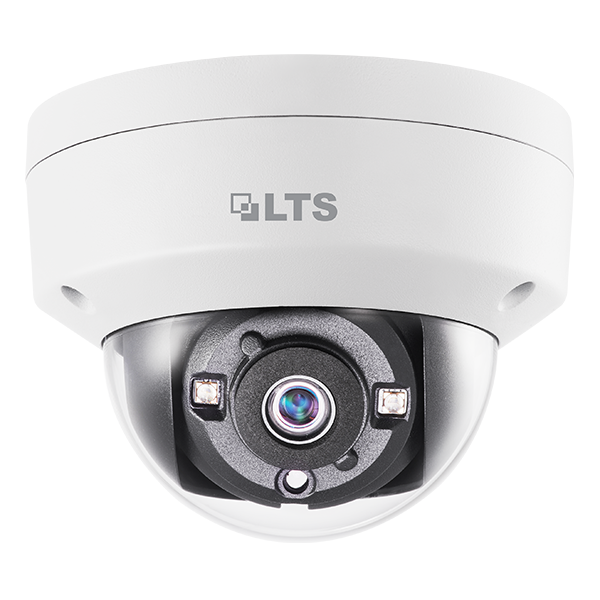

LTS Platinum CMHD7352N-28 5MP HD-TVI Vandal Dome Camera

The LTS Platinum CMHD7352N-28 is a rugged 5-megapixel HD-TVI dome camera built for reliable outdoor and indoor surveillance where image clarity and durability both matter. Fitted with a 2.8mm fixed lens for a wide-angle field of view, this dome pairs a high-resolution 1/2.7" CMOS sensor with an IK10-rated vandal-resistant housing, making it a solid choice for retail entrances, warehouses, car parks, and other areas prone to knocks or tampering. It runs on standard HD-TVI coaxial infrastructure, so it drops straight into an existing analog or hybrid TVI DVR setup without a network upgrade.

Key Features

• 5MP resolution: Captures detailed 2560x1944 footage at up to 20fps for sharper identification of faces, plates, and activity.
• 2.8mm fixed lens: Delivers a wide field of view suited to general area coverage without the need for focus adjustment.
• Smart IR with Matrix LEDs: Two Matrix IR 2.0 LEDs extend clear night vision up to roughly 65ft (20m) while automatically balancing exposure to avoid overexposed close-range objects.
• 0.01 Lux low-light rating: Maintains usable colour video in dim ambient conditions before IR takes over.
• IK10 vandal-proof housing: Withstands high-impact strikes, ideal for publicly accessible or high-risk locations.
• IP67 weatherproof rating: Sealed against dust, rain, and moisture for confident outdoor deployment.
• 3-axis gimbal bracket: Simplifies mounting angle adjustment on ceilings or walls without needing a separate mount.
• UTC/OSD control: On-screen menu settings can be adjusted remotely from a compatible TVI DVR, avoiding the need to physically access the camera.
• Low-voltage 12V DC operation: Simple integration with standard CCTV power supplies and existing coax-power setups.

Where This Camera Fits

This dome camera is well suited to small and mid-sized surveillance upgrades where an installer wants meaningfully sharper footage than standard-definition analog without moving to a full IP/PoE network. Typical applications include shopfronts, corridors, loading docks, apartment common areas, and perimeter walkways where a vandal-resistant, weatherproof dome is preferred over a bullet-style camera. Because it uses HD-TVI signaling over coax, it's a practical option for upgrading legacy analog systems camera-by-camera while retaining existing cabling.

What's in the Box

• LTS Platinum CMHD7352N-28 dome camera
• Mounting bracket and screw kit
• Security/tamper screws and hex key
• Quick installation guide

Frequently Asked Questions

Does this camera need a network/PoE connection?
No. It's an HD-TVI analog camera powered by 12V DC and connected via coax to a compatible HD-TVI DVR, not a network switch.

Can I adjust camera settings without opening the housing?
Yes. UTC control lets you access the on-screen display menu remotely from the DVR interface.

Is it suitable for outdoor installation?
Yes. The IP67 rating and IK10 vandal-resistant dome housing make it suitable for exposed outdoor locations.

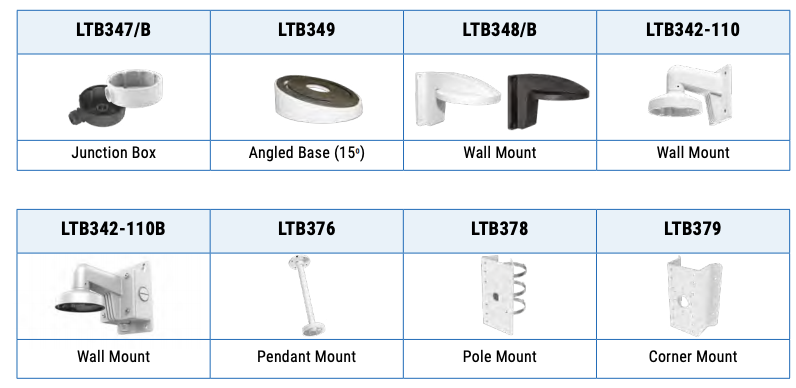

Product Images & Diagrams
