LTS Platinum CMHD3553D-Z 5MP HD-TVI Vandal Dome Camera with 2.8-12mm Motorized Lens

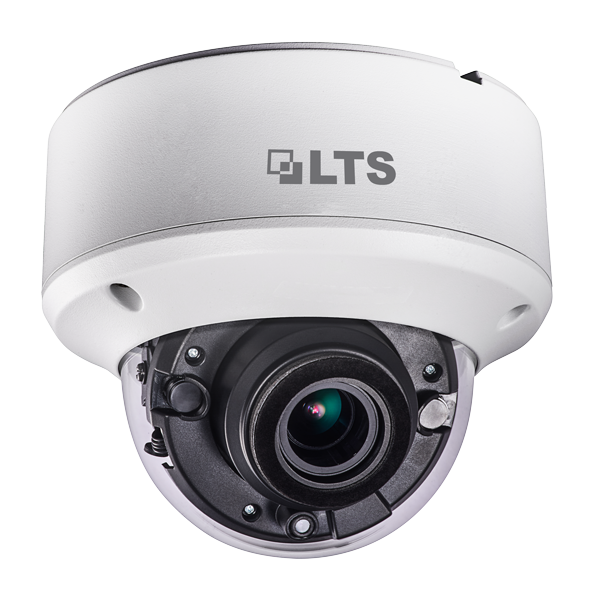

LTS Platinum CMHD3553D-Z 5MP HD-TVI Vandal Dome Camera

The CMHD3553D-Z is a 5-megapixel HD-TVI vandal dome camera from the LTS Platinum range, built for installers who need sharp outdoor coverage with the flexibility of an on-site adjustable lens. It pairs a 1/2.7" CMOS sensor with a 2.8-12mm motorized varifocal lens, letting technicians fine-tune zoom and focus remotely via the coax cable instead of climbing a ladder to adjust the lens by hand. With an IK10 vandal-rated housing and IP67 weatherproofing, it's designed to hold up on entrances, loading docks, car parks, and other exposed areas that see foot traffic or attempted tampering.

Key Features

• 5MP HD-TVI resolution capturing 2560x1944 video at up to 20fps for detailed, evidence-grade footage
• 2.8-12mm motorized varifocal lens with a field of view ranging from roughly 31° to 102°, adjustable remotely via UTC/OSD control over coax
• Low-light rated sensor down to 0.008 Lux at F1.2, dropping to 0 Lux once the built-in infrared kicks in
• Dual Matrix IR 2.0 LEDs providing night-time illumination up to 131ft (40m) with Smart IR to reduce close-range glare
• IK10 vandal-resistant dome housing paired with an IP67 weatherproof rating for tough outdoor environments
• 3-axis gimbal bracket that simplifies mounting on ceilings, walls, or corners without extra hardware
• UTC OSD menu control, allowing image settings such as brightness, sharpness, and noise reduction to be adjusted from the DVR side
• Dual power input supporting DC 12V or AC 24V for flexible installation with existing power infrastructure

Where This Camera Fits

This dome is a practical choice for retail storefronts, warehouses, apartment complexes, and small-to-mid-sized commercial sites that need reliable perimeter and entry-point coverage over an existing HD-TVI system. The motorized zoom lens makes it especially useful in scenarios where the exact framing can't be finalised until the camera is mounted, such as covering a specific doorway, license plate, or walkway, while the IK10/IP67 rating means it can be placed in high-traffic public areas or exposed outdoor locations prone to knocks and weather exposure.

What's in the Box

• CMHD3553D-Z vandal dome camera
• Mounting screws and wall anchors
• Mounting/drill template
• Hex key for dome cover access
• Quick start guide

Frequently Asked Questions

Does this camera need a special recorder?
It must be connected to an HD-TVI recorder capable of handling 5MP video streams; older 1080p/3MP-only DVRs will not display the full resolution.

Can the zoom be adjusted after installation?
Yes, the 2.8-12mm lens is motorized and can be adjusted remotely through the OSD menu over the coax cable, avoiding the need to physically touch the lens once mounted.

Is it suitable for fully outdoor installation?
Yes, the IP67 rating protects against dust and heavy rain, while the IK10 housing resists impact from vandalism or accidental knocks.

Product Images & Diagrams
