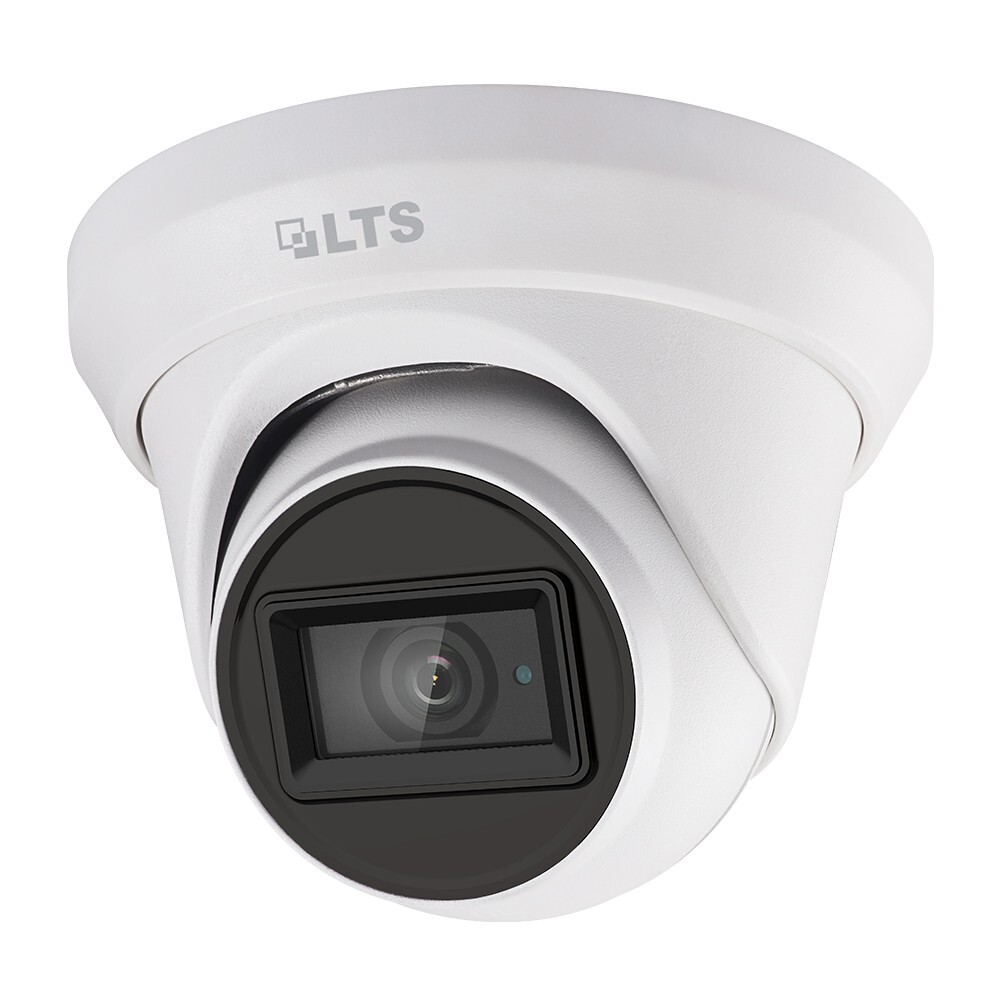

LTS Platinum 8MP TVI Turret Camera with 2.8mm Fixed Lens

LTS Platinum CMHT1782-28F 8MP HD-TVI Turret Camera (2.8mm)

The CMHT1782-28F is part of the LTS Platinum Series and delivers 4K Ultra HD (8.3MP) imaging over standard coaxial cabling. Built around a 2.8mm fixed wide-angle lens, this turret-style camera is designed for installers who need to upgrade an existing analog or HD-over-coax system to true 4K resolution without pulling new cable. With a flexible 4-in-1 video output and rugged outdoor housing, it suits retail, warehouse, residential and light commercial surveillance applications.

Key Features

• 8.3MP / 4K Ultra HD sensor capturing 3840 x 2160 resolution for sharp, detailed footage.
• 2.8mm fixed lens with a wide field of view of approximately 102.2°, ideal for general area coverage.
• Matrix IR 2.0 with Smart IR providing effective night vision up to roughly 60 metres, reducing IR overexposure on nearby objects.
• Low-light performance down to around 0.01 lux at F1.2 with AGC enabled.
• 4-in-1 switchable output supporting HD-TVI, AHD, HD-CVI and analog CVBS signals, so it drops into most existing coax-based recorders.
• Digital Wide Dynamic Range (WDR), BLC and 3D DNR to balance high-contrast scenes and cut down night-time image noise.
• IP67-rated housing for reliable performance in rain, dust and harsh outdoor conditions.
• On-screen menu control via UTC (up-the-coax), allowing camera settings to be adjusted directly from a compatible Platinum DVR without a separate control cable.
• Low-power 12V DC operation, drawing only a few watts for efficient long-term use.

Where This Camera Fits

The CMHT1782-28F is well suited to perimeter and general-area monitoring around shopfronts, driveways, car parks, warehouses and residential exteriors. Because it can switch between TVI, AHD, CVI and CVBS signal types, it's a practical drop-in replacement when upgrading an older analog CCTV system to higher resolution without rewiring, and its compact turret housing mounts flush and discreetly under eaves, soffits or walls.

What's in the Box

• CMHT1782-28F turret camera
• Mounting bracket and screw/anchor kit
• Waterproof cable connector
• Quick installation guide

Frequently Asked Questions

Will this camera work with my current DVR?
Because it supports switchable TVI, AHD, CVI and CVBS output, it will connect to most coax-based recorders, but for full 8MP resolution and OSD control you'll need a DVR that supports 4K HD-TVI input, such as an LTS Platinum DVR.

How far can it see at night?
Its Matrix IR 2.0 system is rated for infrared illumination up to approximately 60 metres, with Smart IR helping to avoid washed-out close-range objects.

Is it suitable for outdoor use?
Yes. The housing carries an IP67 rating, making it dust-tight and resistant to sustained water exposure, so it's designed for exterior mounting in typical Australian weather conditions.
