LTS Platinum 5MP TVI Turret Security Camera with 2.8mm Fixed Lens

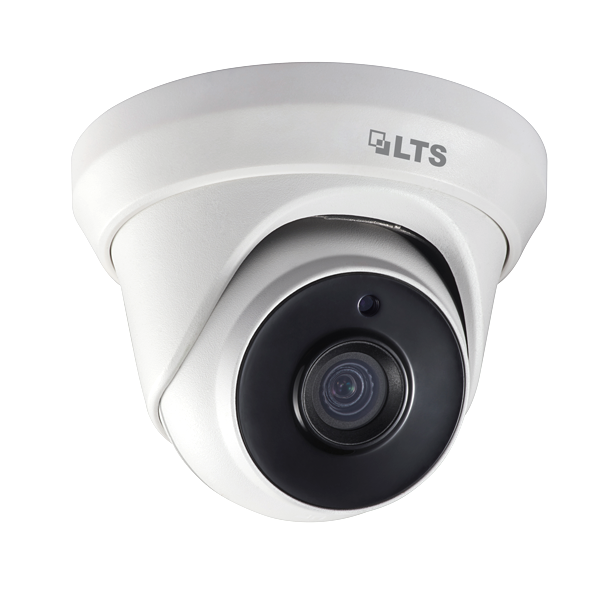

LTS Platinum 5MP TVI Turret Camera - 2.8mm Fixed Lens (CMHT1752N-28F)

The LTS Platinum CMHT1752N-28F is a 5-megapixel turret-style security camera built for installers who need sharp, wide-angle coverage without the complexity of an IP system. Featuring a 2.8mm fixed lens and 4-in-1 switchable video output, this camera slots into almost any existing HD analog surveillance setup while delivering crisp 2560x1944 imagery, strong low-light performance, and a rugged IP67-rated housing suited to Australian indoor and outdoor environments alike.

Key Features

• 5MP High-Resolution Sensor: Captures detailed 2560x1944 footage at up to 20fps for clearer identification of faces, vehicles, and activity.
• 2.8mm Fixed Wide-Angle Lens: Offers a broad field of view, ideal for covering entrances, hallways, and open areas from a single mounting point.
• 4-in-1 Switchable Output: 4-in-1 Video Output (Switchable Among TVI / AHD / CVI / CVBS) lets the camera integrate with almost any existing analog DVR.
• Matrix IR Night Vision: Smart IR Range up to 131 ft (40 m) using dual Matrix IR 2.0 LEDs for consistent, evenly lit night-time footage.
• Excellent Low-Light Sensitivity: Rated to 0.01 lux with AGC engaged, so the sensor continues producing usable footage well after dusk.
• Image Enhancement Technologies: Built-in DWDR, BLC, and 3D DNR help balance high-contrast scenes and reduce grain in low-light or backlit conditions.
• Weatherproof IP67 Housing: Sealed turret enclosure withstands rain, dust, and humidity, making it suitable for covered outdoor mounting.
• Coax-Based OSD Control: Camera settings can be adjusted remotely through UTC control via a compatible Platinum DVR, avoiding the need for on-site menu access.
• Low Power Draw: Runs on a simple 12VDC supply, drawing roughly 4.3W, keeping cabling and power budgeting straightforward on larger installs.

Typical Applications

This turret camera suits retail stores, offices, warehouses, and residential properties where a compact, discreet camera needs to cover a wide area with reliable night vision. Its switchable TVI/AHD/CVI/CVBS output makes it a practical upgrade or replacement unit for mixed-brand analog systems, and its IP67 rating means it can be mounted under eaves, on covered walkways, or at building entrances to monitor foot traffic around the clock.

What's in the Box

• CMHT1752N-28F Turret Camera
• Mounting screws and wall anchors
• Mounting template sticker
• Quick installation guide

Frequently Asked Questions

Q: Will this camera work with my existing analog DVR?
A: Yes. The camera supports four switchable output formats - TVI, AHD, CVI, and CVBS - so it can be matched to most existing analog recorders.

Q: How far can the camera see at night?
A: The built-in Matrix IR 2.0 LEDs provide effective infrared illumination up to approximately 40 metres in dark conditions.

Q: Does this camera support Power over Coax or PoE?
A: No. It requires a standard 12VDC power supply; it does not support PoE or power-over-coax.
