LTS Platinum 2MP Ultra-Low Light HD-TVI Dome Camera with 2.7-13.5mm Motorised Lens

LTS Platinum 2MP Ultra-Low Light HD-TVI Dome Camera (CMHD3523DWE-ZF)

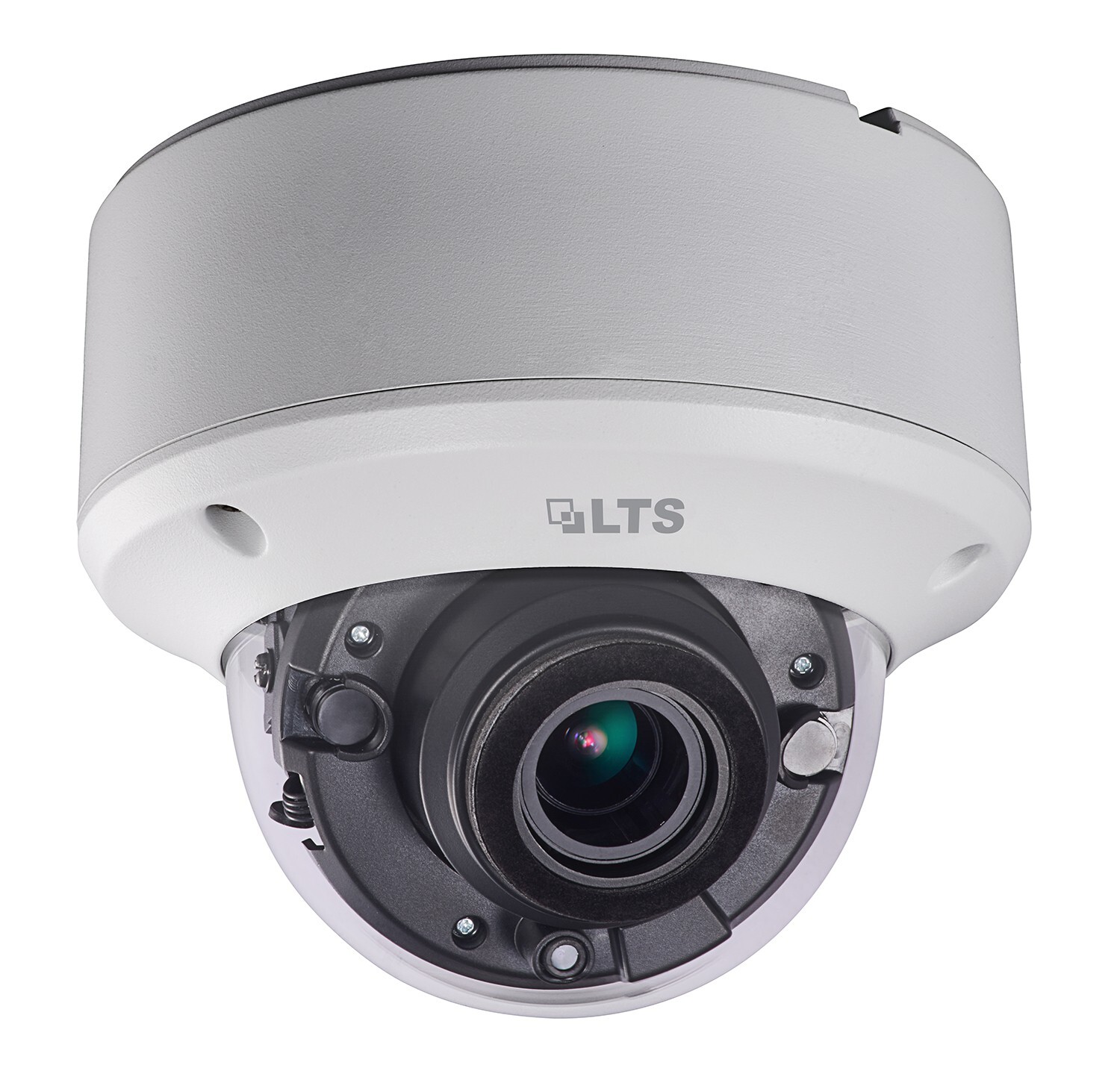

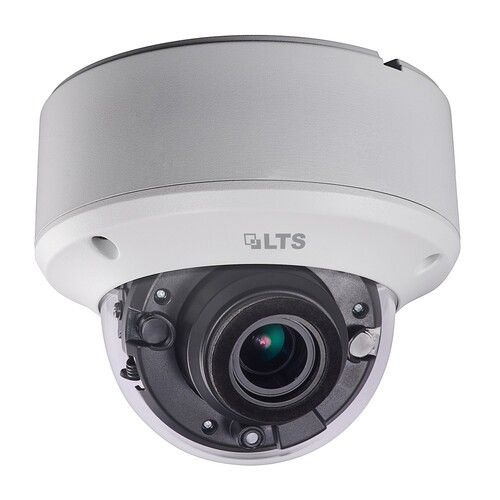

The CMHD3523DWE-ZF is a 2-megapixel outdoor dome camera from the LTS Platinum Series, built for installers who need dependable night-time image quality and flexible lens coverage on a single analogue run. It pairs a high-performance 2MP CMOS sensor with a motorised 2.7-13.5mm varifocal lens, letting technicians dial in the exact field of view on site without swapping lenses. A rugged IP67 and IK10-rated housing means it is equally at home on a shopfront, warehouse loading dock, or exposed carpark pole.

Key Features

• 2MP Full HD sensor delivering 1920x1080 resolution at up to 25/30fps depending on video standard.
• 2.7~13.5mm motorised varifocal lens with auto-focus, covering a wide 103° down to a narrow 32.1° field of view for close-up detail or wide-area coverage.
• Ultra-low light performance rated at 0.003 Lux (F1.2, AGC on), with true 0 Lux operation once IR engages.
• Matrix IR illumination with an effective range of around 60m (197ft) at 850nm for consistent night-time detail.
• 130dB true WDR plus BLC and 3D DNR processing to balance harsh backlight and reduce image noise in low-light or high-contrast scenes.
• Switchable 4-in-1 output (TVI/AHD/CVI/CVBS) for drop-in compatibility with existing analogue and HD-analogue recorders.
• UTC (Up-The-Coax) OSD control, allowing menu setup directly from a compatible LTS Platinum DVR without a local monitor.
• 4 programmable motion detection zones and privacy masks for targeted alerts and masking of sensitive areas.
• IP67 weatherproof and IK10 vandal-resistant housing suited to outdoor and high-traffic environments.

Where It Fits

This dome is well suited to retail entrances, warehouses, car parks, and perimeter walkways where lighting conditions change throughout the day and a single camera needs to cover both wide approach paths and narrower, zoomed-in points of interest. Because it runs on TVI (and is switchable to AHD, CVI, or CVBS), it's a practical upgrade path for sites already wired with coax, avoiding the cost of re-cabling to IP.

What's in the Box

• CMHD3523DWE-ZF dome camera
• Mounting base and screws
• Junction box / mounting template
• Security torx key (for vandal-resistant housing)
• Quick start guide

Frequently Asked Questions

Does this camera work with any DVR?
It outputs a switchable TVI/AHD/CVI/CVBS signal, so it will connect to most analogue and HD-analogue DVRs, though full OSD menu control via UTC is designed for use with LTS Platinum DVRs.

Can the zoom be adjusted after installation?
Yes, the 2.7-13.5mm lens is motorised and auto-focusing, so the field of view can be adjusted remotely via the DVR menu rather than manually at the camera.

Is it suitable for outdoor use in Australian conditions?
Yes, the housing carries an IP67 weatherproof rating and IK10 impact rating, and the unit is rated for a wide operating temperature range, making it suitable for most outdoor Australian climates.
