LTS Platinum 5MP HD-TVI Vandal Dome Camera with 2.7-13.5mm Motorized Lens

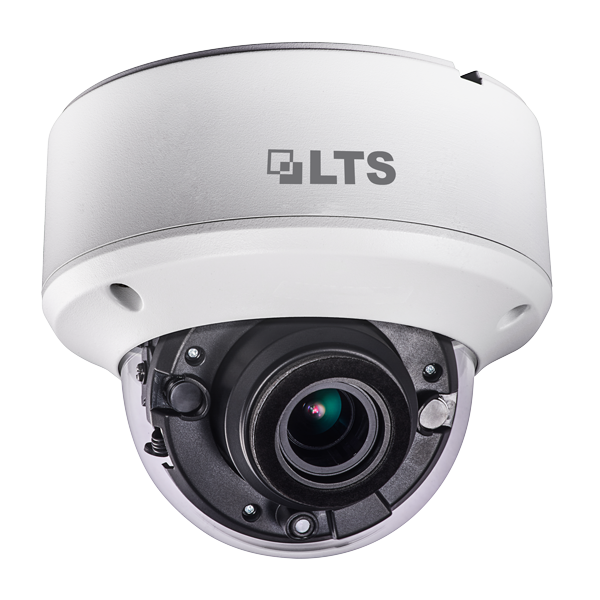

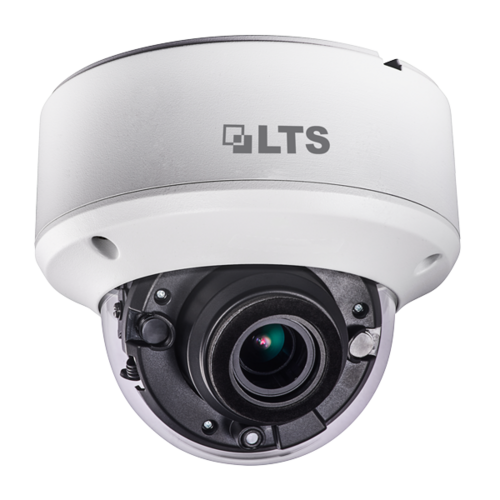

LTS Platinum CMHD3553DN-ZF 5MP HD-TVI Motorized Vandal Dome Camera

The CMHD3553DN-ZF is a 5-megapixel vandal-resistant dome camera from the LTS Platinum range, built for demanding outdoor and high-security installations. Its motorised 2.7-13.5mm varifocal lens allows installers to fine-tune the field of view remotely without physically adjusting the lens on site, saving time on ladders and lifts. Paired with a rugged IK10-rated vandal housing and IP67 weatherproofing, this camera is designed to hold up against tampering, impact, and harsh weather while delivering sharp, detailed footage day and night.

Key Features

• 5MP High Resolution: Captures crisp 2560x1944 images at up to 20fps for clear identification of faces, plates, and details.
• 2.7-13.5mm Motorised Lens: Remote electronic zoom and focus adjustment eliminates manual lens tweaking during installation.
• 4-in-1 Video Output: Switchable between TVI, AHD, CVI, and CVBS signals for flexible compatibility with existing analog DVR systems.
• Matrix IR Illumination: Dual Matrix IR 2.0 LEDs provide clear night vision up to roughly 40m (131ft) at 850nm.
• Low-Light Performance: Rated at 0.01 lux (F1.2, AGC on) for usable colour images in dim conditions before infrared takes over.
• Vandal and Weather Protection: IK10 impact-resistant housing combined with IP67 sealing suits exposed outdoor mounting locations.
• Image Enhancement: Built-in DWDR, BLC, and 2D DNR help balance high-contrast scenes and reduce noise in low light.
• 3-Axis Adjustable Bracket: Simplifies precise aiming after mounting on walls or ceilings.
• Flexible Power Input: Operates on 12VDC or 24VAC, drawing around 500mA / 6W.

Built for Demanding Surveillance Environments

This dome camera suits car parks, building perimeters, loading docks, entrances, and other outdoor areas where cameras may be exposed to impact, vandalism, or extreme weather. The motorised zoom lens makes it especially useful in installations covering long approaches or wide areas, where the field of view may need adjusting after mounting or as scene requirements change over time. Its multi-format video output also makes it a practical upgrade or replacement option for sites already running analog HD-TVI, AHD, or CVI recorders.

What's in the Box

• CMHD3553DN-ZF vandal dome camera
• Mounting screws and installation template
• Waterproof cable gland/connector
• Quick installation guide

Frequently Asked Questions

Is this camera compatible with any DVR?
It supports TVI, AHD, CVI, and CVBS signals, but 5MP recording requires a DVR capable of handling 5MP HD-TVI input; older or lower-resolution DVRs may not display the full resolution.

Can the lens be adjusted after installation?
Yes, the 2.7-13.5mm lens is motorised, so zoom and focus can typically be adjusted remotely via the connected DVR or UTC controls without opening the housing.

Is this camera suitable for outdoor use?
Yes, it carries an IP67 weatherproof rating along with IK10 vandal resistance, making it suitable for exposed outdoor mounting locations.
