LTS 5MP HD-TVI Covert PIR Camera with 3.7mm Pinhole Lens

LTS 5MP HD-TVI Covert PIR Camera (CMHT-PIR)

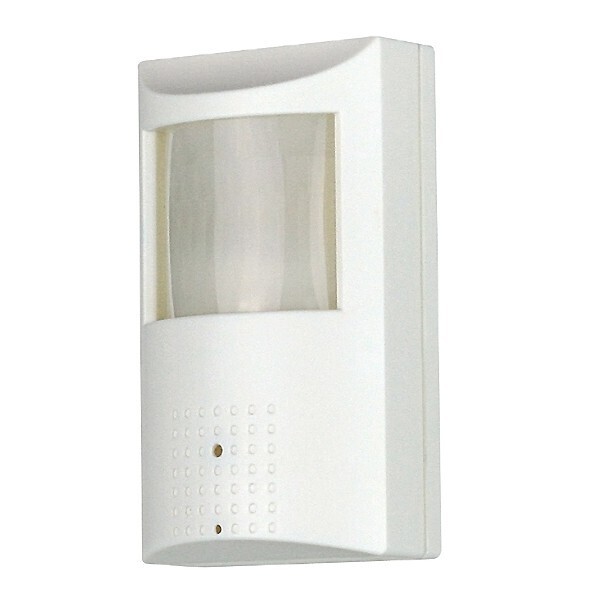

The LTS CMHT-PIR is a discreet, covert-style security camera built into a housing designed to resemble a standard passive infrared (PIR) motion sensor. Instead of detecting motion, this unit conceals a fixed 3.7mm pinhole lens and a high-resolution imaging sensor, making it ideal for indoor spaces where a visible camera isn't practical or desirable. Compatible with TVI, AHD and CVI analog recording systems, it slots easily into most existing HD-CCTV setups without needing extra decoders or adaptors.

Key Features

• Covert PIR-style housing that blends in with everyday motion sensors, keeping the camera hidden from casual observation
• Fixed 3.7mm pinhole lens for a tight, discreet field of view suited to indoor monitoring points
• Multi-format video output supporting TVI, AHD and CVI, giving flexibility across different DVR platforms
• Digital Wide Dynamic Range (DWDR) to balance bright and dark areas within the same scene
• Back Light Compensation (BLC) and 2D Digital Noise Reduction (2D DNR) for cleaner, more usable footage in mixed lighting
• Built-in microphone with RCA audio output, allowing audio capture alongside video where supported by the recorder
• Low-voltage 12VDC operation at approximately 4W, simplifying power planning for internal installations
• Compact, lightweight design intended strictly for indoor use

Best Suited For

Because it is styled to look like an ordinary PIR sensor, the CMHT-PIR is best used in offices, retail counters, reception areas, staff rooms and other internal environments where a visible dome or bullet camera might draw attention or feel intrusive. It works well for monitoring cash handling areas, stockrooms, or sensitive internal doorways as part of a wider HD-TVI/AHD/CVI surveillance system, particularly where discretion is more important than a wide field of view.

What's in the Box

• CMHT-PIR covert camera unit (PIR-style housing)
• Mounting hardware/bracket
• Quick installation guide

Frequently Asked Questions

Is this camera an actual motion sensor as well as a camera?
No. The PIR-style housing is purely a disguise; the unit does not perform motion detection itself, it simply houses a covert pinhole camera and microphone.

Can I use this camera outdoors?
No, the CMHT-PIR is designed and rated for internal use only and should not be installed in exposed or weather-affected locations.

Which recorders is it compatible with?
It outputs analog HD video over TVI, AHD or CVI formats, so it will work with most modern HD-CCTV DVRs that support one of these signal types.
