LTS Platinum LPR100 1.3MP HD-TVI License Plate Bullet Camera 6-22mm

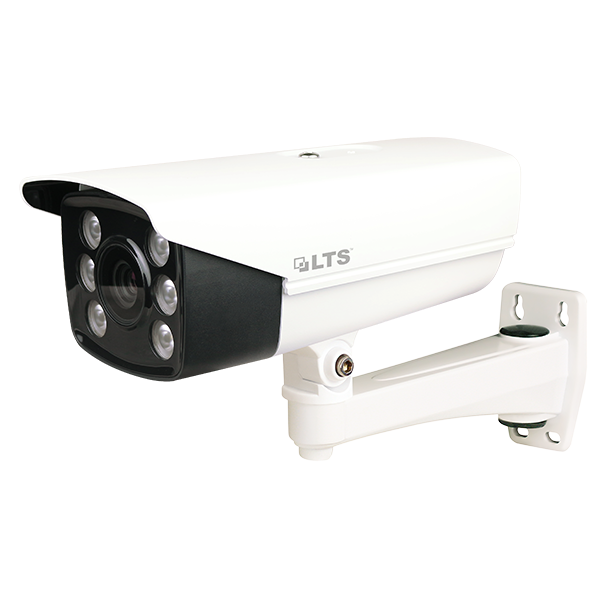

LTS Platinum LPR100 1.3MP HD-TVI License Plate Recognition Bullet Camera

The LTS Platinum LPR100 is a purpose-built HD-TVI bullet camera engineered specifically to capture clear, readable license plate images from moving or parked vehicles. Combining a long-range motorised varifocal lens with high-intensity white flux illumination and an ultra-fast shutter, this camera is a reliable choice for gated communities, car parks, toll points and perimeter access lanes where accurate vehicle identification is essential.

Key Features

• 1.3MP High-Definition Sensor - delivers 1280x720 resolution at up to 30fps for sharp, detailed plate capture.
• 6-22mm Motorised Varifocal Lens - allows precise remote zoom and focus adjustment to suit lane width and camera mounting distance.
• 6 White Giant Flux LEDs - provide dedicated visible-light illumination for night-time plate visibility rather than standard IR, reducing plate glare and improving OCR readability.
• Ultra-Low Lux Performance - rated at 0.001 lux with AGC enabled, ensuring usable footage even in near-dark conditions.
• High-Speed Shutter - an extended shutter range helps freeze fast-moving vehicles to avoid motion blur on plates.
• Multi-Format Video Output - switchable between TVI, AHD, CVI and standard CVBS for flexible integration with existing analog recorders.
• 120dB Wide Dynamic Range with BLC and AGC - compensates for strong backlighting common at entry/exit points.
• IP66 Weatherproof Housing - suitable for continuous outdoor exposure to rain, dust and temperature extremes.
• OSD Control via UTC - camera settings can be adjusted remotely from a compatible Platinum HD-TVI DVR without needing on-site access.

Built for Vehicle Access and Perimeter Security

The LPR100 is designed to be mounted at a fixed angle covering a vehicle lane, gate or boom gate lane, where its motorised lens can be fine-tuned to frame plates consistently regardless of vehicle height or approach angle. Its combination of low-light sensitivity, fast shutter speed and dedicated white-light illumination makes it well suited to car park management, residential estate access control, loading docks and small-scale toll or fee-collection points where accurate, time-stamped plate footage supports both security monitoring and automated vehicle recognition workflows.

What's in the Box

• LPR100 HD-TVI Bullet Camera
• Mounting bracket and screws
• Sun shield
• Waterproof cable gland/connector
• Quick installation guide

Frequently Asked Questions

Does the LPR100 work with any HD-TVI DVR?
It is optimised for use with Platinum HD-TVI DVRs for full OSD control via UTC, but its multi-format output also supports AHD, CVI and CVBS-based systems.

Is this camera suitable for reading plates at night?
Yes, it uses dedicated white flux LEDs rather than infrared, which improves plate contrast and reduces washout compared to standard IR-only cameras.

Can the zoom and focus be adjusted after installation?
Yes, the 6-22mm lens is motorised, so zoom and focus can be fine-tuned remotely through the connected DVR without physically accessing the camera.
