LTS Platinum Aluminum Wall Mount Bracket - 110mm Camera Base (LTB342-110)

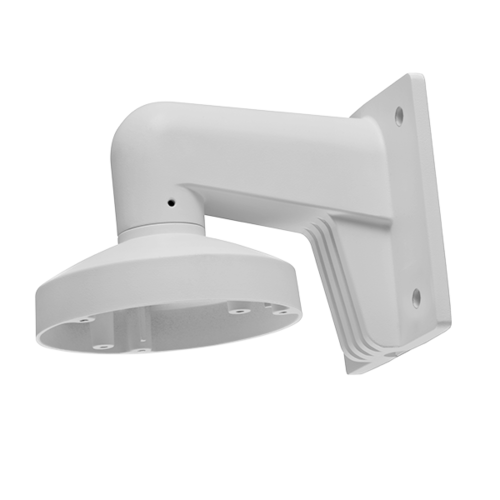

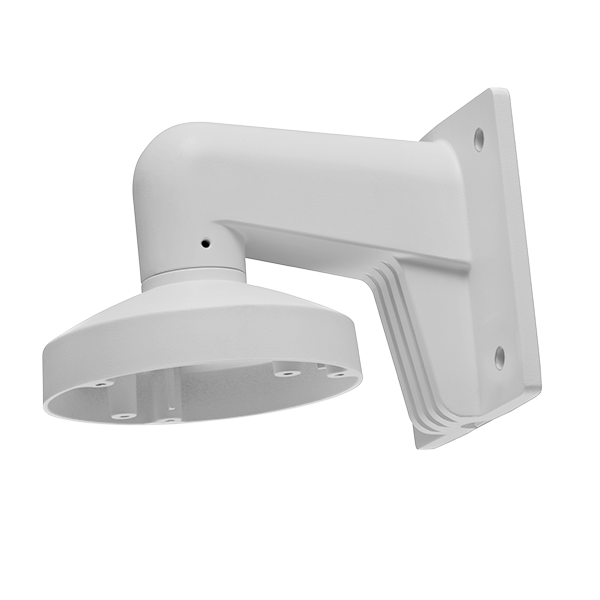

LTS LTB342-110 Aluminum Wall Mount Bracket - 110mm Camera Base

The LTS LTB342-110 is a heavy-duty aluminum alloy wall mount bracket engineered specifically for LTS Platinum series dome cameras that use a 110mm mounting base. Designed with a discrete internal cable entry, it allows installers to route power and data cabling neatly through the wall and up into the camera housing, avoiding unsightly exposed wiring. It is a purpose-built accessory for professional CCTV installations where a clean, tamper-resistant finish is required on both indoor and outdoor walls.

Key Features

• Durable aluminum alloy construction that resists corrosion and weathering for long-term outdoor use
• 110mm cap/base size designed to match compatible LTS Platinum dome camera housings
• Discrete cable entry point for a clean, concealed cabling installation
• Compatible with CMIP73XX and CMIP74XX Platinum IP dome camera series
• Compatible with CMHD73XX and CMHD74XX Platinum HD-TVI dome camera series
• Overall dimensions of approximately 169mm (L) x 110mm (W) x 120mm (H), with a base footprint of roughly 110mm diameter x 65mm height
• Lightweight yet sturdy, weighing approximately 480g when fitted
• Simple wall-fix installation using standard mounting hardware
• Neutral finish designed to blend with most building exteriors and interior walls

Ideal Applications

This bracket is best suited to installers and integrators fitting Platinum series vandal-resistant or IR dome cameras onto masonry, brick, or rendered walls where cable concealment and a professional finish are important. It is commonly used in retail stores, offices, warehouses, apartment complexes, and building entrances where a fixed wall-mounted camera angle is preferred over ceiling or pendant mounting.

What's in the Box

• LTB342-110 wall mount bracket assembly
• Mounting screws and wall anchors
• Basic installation instructions

Frequently Asked Questions

Which cameras does the LTB342-110 fit?
It is designed for LTS Platinum dome cameras in the CMIP73XX, CMIP74XX, CMHD73XX, and CMHD74XX series that use a 110mm mounting base.

Can this bracket be installed outdoors?
Yes, the aluminum alloy construction makes it suitable for both indoor and outdoor wall installations.

Does this version include a junction box for extra cable storage?
No, the standard LTB342-110 relies on a discrete cable entry point through the base; the LTB342-110B variant adds a built-in junction box for additional cable management.
