LTS 2-Wire Video Intercom Kit with 2x 7" Black Touchscreen Monitors (Surface Mount)

LTS 2-Wire Video Intercom Kit – Surface-Mount Door Station with Dual Black Touchscreen Monitors

This LTS 2-Wire Intercom Kit (LTH-KIT-2W122) bundles everything needed to add video entry monitoring to a home or small apartment using simple two-core cabling instead of a full network run. The kit pairs a surface-mount outdoor camera module with two 7-inch black touchscreen indoor monitors and the distributor unit that powers and links them, making it a practical retrofit option where running Cat5e/6 to the door is impractical.

Key Features

• 2-Wire architecture – audio, video and power run over a single twisted pair, simplifying installation in existing conduit
• 2.0MP fisheye door camera with a 180° horizontal field of view and auto day/night switching for clear vision in low light
• Built-in omnidirectional microphone and loudspeaker on the outdoor module for two-way hands-free conversation
• Aviation-grade aluminium surface-mount frame included with all fixing hardware for a rugged, weather-resistant install
• Two 7-inch touchscreen indoor monitors (black trim) with handsfree microphone and speaker
• Indoor monitors support Wi-Fi 802.11b/g/n connectivity and local recording to a Micro SD card up to 32GB
• 6-channel 2-Wire distributor with a 10/100Mbps network port for linking the system to a wider LTS video management setup
• Distributor supplied with a DC 24V power adaptor, while monitors run on 12V DC
• Compatible with LTS NVMS software for remote unlocking, live viewing and mobile client access

Ideal for Homes and Small Multi-Monitor Installs

Because it includes two indoor monitors, this kit suits households or small businesses that want video answering capability in more than one room – for example, a kitchen and a main bedroom – without duplicating the outdoor hardware. The 2-Wire design also makes it a strong fit for renovations or older properties where pulling new structured cabling to the front door is costly or disruptive.

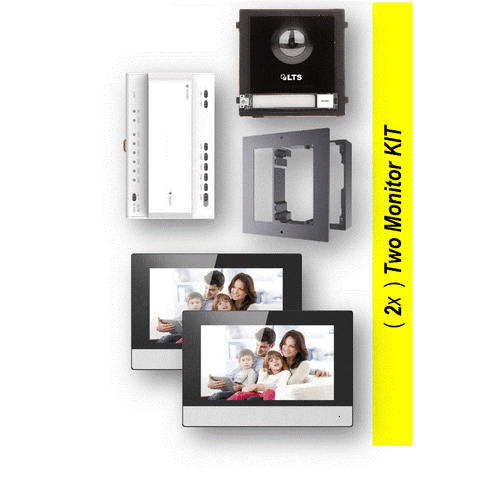

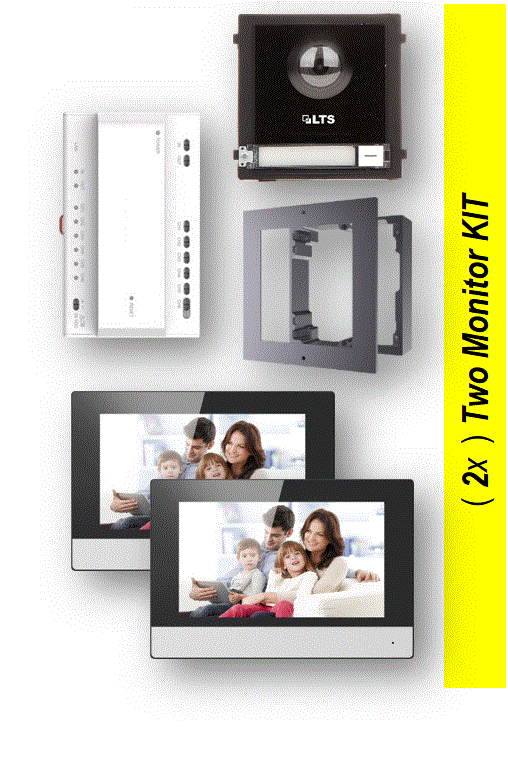

What's in the Box

• 1x LTH-M201-C-2 – 2-Wire Audio/Video Door Station Module
• 1x LTH-M201-1S – Single Module Surface-Mount Frame with fixing hardware
• 2x LTH-D301GY-WIFI-2 – 7" Touchscreen 2-Wire Indoor Monitor (Black trim)
• 1x LTH-MD06-2 – 2-Wire 6-Channel Audio/Video Distributor with 24V DC power adaptor

Frequently Asked Questions

Can I add more monitors later?
Yes. The included LTH-MD06-2 distributor supports up to six 2-Wire indoor monitors, so additional LTH-D301GY-WIFI-2 units can be added within that limit.

Do I need existing network cabling to install this kit?
No. The core door-to-monitor communication runs on 2-Wire cabling; the distributor's network port is only needed if you want to integrate the system with an NVR, NVMS software, or remote app access.

Is this kit suitable for outdoor exposure?
The door station module is IP65-rated and housed in an aluminium surface-mount frame, making it suitable for typical Australian entryway conditions when installed per the supplied cabling guide.

Additional Resources

• Cabling Guide - Link
