Ajax 4-Camera 5MP Turret CCTV Kit with 8CH NVR & 2TB HDD

Ajax 4-Camera 5MP Turret CCTV Kit with 8-Channel NVR & 2TB HDD

This ready-to-install Ajax surveillance bundle pairs four 5MP wired turret cameras with an 8-channel network video recorder pre-fitted with a 2TB hard drive, giving you a complete high-definition monitoring solution for homes, offices, and small commercial sites. Built around Ajax's professional-grade camera and NVR technology, the kit combines sharp image quality, smart AI detection, and deep integration with the wider Ajax security ecosystem for fast, reliable alarm verification.

Key Features

• 5MP turret cameras with 2.8mm fixed lenses delivering a wide 100-110° field of view and resolution up to 2880 x 1620px
• AI-powered object detection that distinguishes between people, vehicles, and pets to reduce false alerts and save storage
• Smart infrared illumination with an effective range of up to 35 metres for reliable night-time footage
• True WDR (Wide Dynamic Range) for clearer images in high-contrast lighting conditions
• Built-in microphone on each camera for audio capture alongside video
• IP65-rated weatherproof housing suitable for outdoor and indoor installation
• 8-channel NVR supporting recording resolutions up to 8MP, H.264/H.265 compression, and ONVIF/RTSP compatibility for third-party cameras
• Pre-installed 2TB hard drive for extended continuous or event-based recording without a separate purchase
• Ajax ecosystem integration, allowing Ajax intrusion detectors to automatically trigger camera recording for instant visual verification of alarms

Ideal for Homes, Offices, and Small Business Security

This kit suits property owners who want a straightforward, plug-and-play video surveillance upgrade without sacrificing image quality or smart features. The four cameras are well suited to covering entry points, driveways, car parks, or internal common areas, while the NVR's HDMI output and multi-channel playback make it easy to review footage on a connected monitor. Because the system links with Ajax alarm hubs and detectors, it also works well as a video verification layer for an existing or planned Ajax intrusion alarm setup, helping installers and monitoring operators confirm real threats faster.

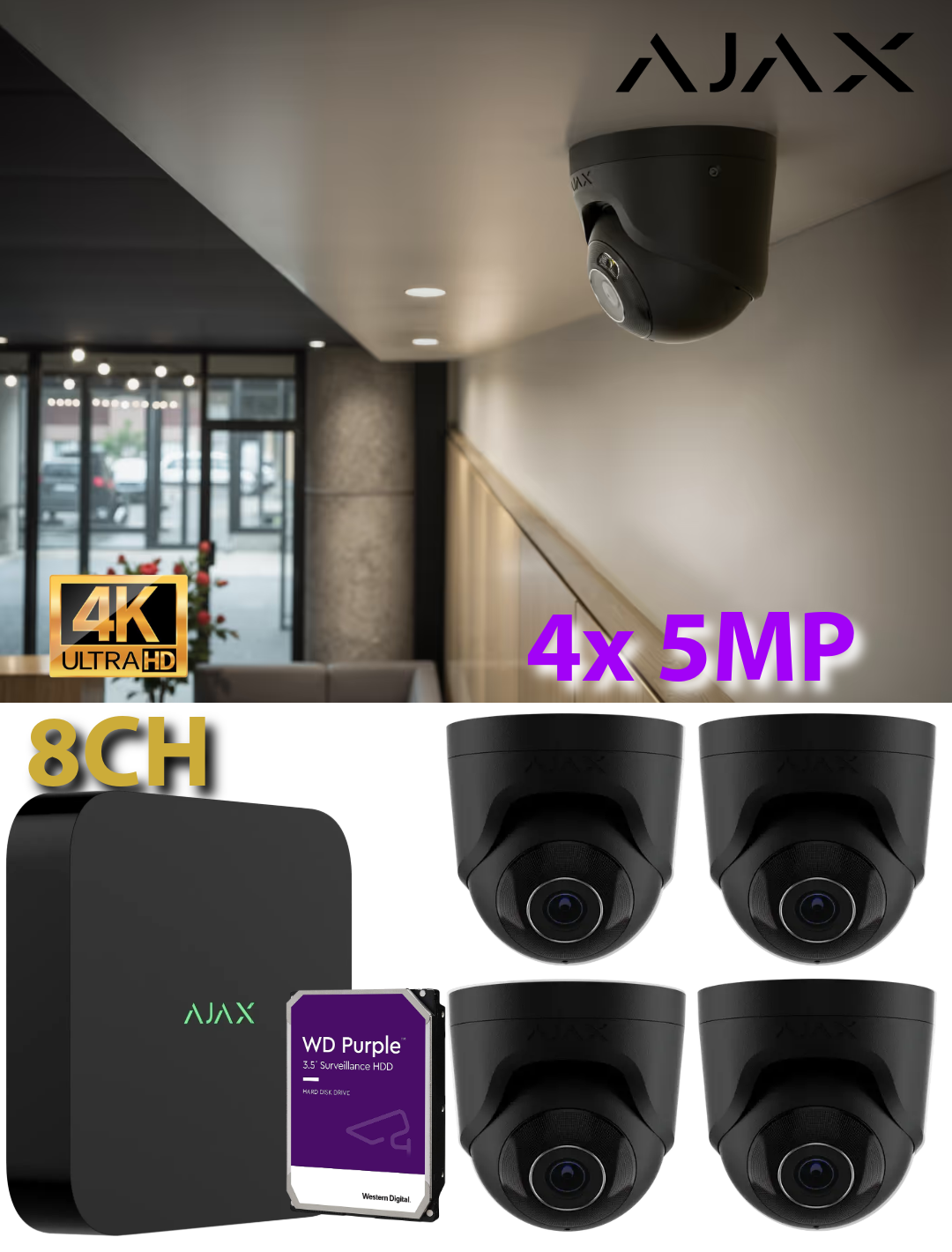

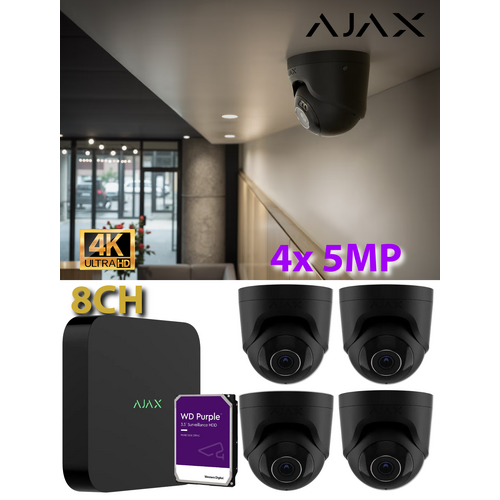

What's in the Box

• 4 x Ajax 5MP Turret Camera, 2.8mm lens, Black
• 1 x Ajax 8-Channel NVR, Black
• 1 x 2TB Hard Disk Drive (pre-installed)
• Mounting hardware and quick-start documentation

Frequently Asked Questions

Do I need a separate network switch?
Yes. This kit does not include a PoE network switch, so a compatible PoE switch must be purchased separately to power and connect the cameras to the NVR.

Can the storage be expanded later?
The NVR supports SATA hard drives up to 16TB, so the included 2TB drive can be swapped for larger capacity if longer recording retention is needed.

Will these cameras work with an existing Ajax alarm system?
Yes. The cameras and NVR are designed to integrate with Ajax hubs and detectors, enabling automatic recording and visual alarm verification when Ajax devices are triggered.

Additional Resources

• *Network switch sold seperatly
