LTS IP Video Intercom Kit with 7" White Monitor - Surface Mount (LTH-KIT-121IP-W)

LTS IP Video Intercom Kit with 7" White Touchscreen Monitor (Surface Mount)

The LTH-KIT-121IP-W is a complete single-door, single-monitor IP video intercom solution from LTS, designed for homes, offices, and small commercial entries where a clean surface-mounted installation is required. The kit pairs a PoE outdoor door station module with a 7-inch touchscreen indoor monitor finished in white, and includes a dedicated PoE switch so the whole system can be wired and powered over a single network run. Because the door station uses a modular design, the system can later be expanded with additional call buttons, keypads, or card readers without replacing the core hardware.

Key Features

• 2.0MP Full HD door station camera capturing 1920 x 1080 video at up to 30fps for clear visitor identification
• 180-degree horizontal fisheye lens with auto day/night switching for wide-angle coverage of the entry point
• Built-in omnidirectional microphone and loudspeaker for clear two-way audio at the door
• Aviation-grade aluminium surface-mount frame supplied with all fixing hardware for fast, tidy installation
• 7-inch touchscreen indoor monitor in white trim with hands-free microphone and speaker operation
• Wi-Fi 802.11b/g/n connectivity alongside PoE/12V DC power options for flexible placement of the monitor
• MicroSD card slot (up to 32GB) for local snapshot or event storage at the indoor monitor
• Included 4-port PoE switch to power and network both the door station and monitor from one location

Typical Applications

This kit suits single-entry residential properties, townhouses, small offices, and retail premises that need to see and speak with visitors before granting access. The PoE-based wiring simplifies installation compared with proprietary intercom cabling, and the modular door station design means the system can grow into a multi-module or multi-monitor setup as a site's needs change, using the same LTS IP intercom ecosystem.

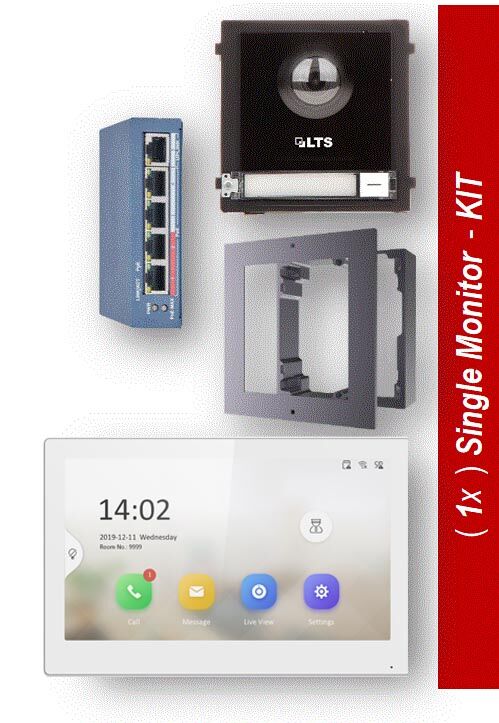

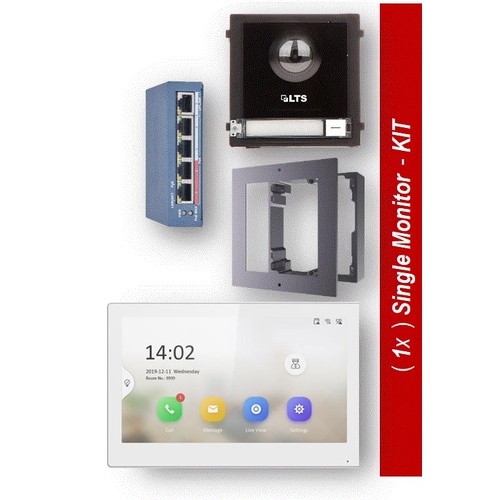

What's in the Box

• 1x LTH-M201-C IP PoE Audio/Video Door Station Module
• 1x LTH-M201-1S Single-Module Surface-Mount Frame with fixing hardware
• 1x LTH-D311GY-WIFI-W 7" IP Touchscreen Indoor Monitor (White trim)
• 1x 4-Port PoE Switch

Frequently Asked Questions

Does this kit support Wi-Fi as well as wired networking?
Yes. The LTH-D311GY-WIFI-W indoor monitor can be connected via PoE/wired Ethernet or over 802.11b/g/n Wi-Fi, giving flexibility in where the monitor is mounted relative to the network switch.

Can I add more monitors or door modules later?
The LTH-M201-C door station uses a modular architecture that can support additional call button modules, keypads, or card reader modules, and additional compatible indoor monitors can be added to the system.

Is this the surface-mount or flush-mount version?
This kit uses the LTH-M201-1S surface-mount frame, making it suitable for installation directly onto an external wall or pillar without recessing into masonry, as opposed to the flush-mount variant of this kit.
