Ajax 8-Camera 8MP TurretCam & 16-Channel NVR 8TB CCTV Kit White

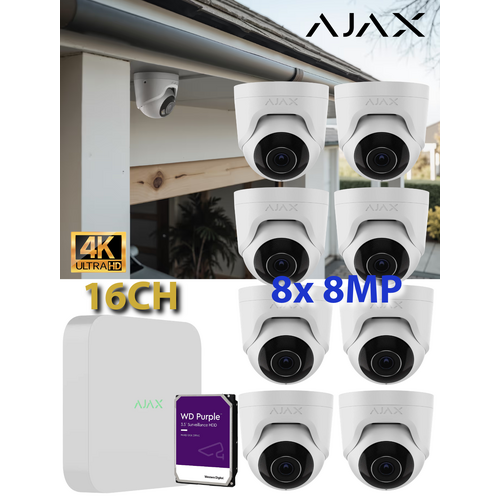

Ajax 8-Camera 8MP TurretCam & 16-Channel NVR 8TB CCTV Kit

This complete Ajax video surveillance bundle pairs eight wired 8MP TurretCam IP cameras with a 16-channel white NVR and a pre-installed 8TB hard drive, giving you a ready-to-deploy AI-enhanced CCTV system. Designed to slot straight into the Ajax security ecosystem, this kit is ideal for installers and end users who want smart, high-resolution monitoring that also talks to Ajax intrusion, fire and automation devices.

Key Features

• 8MP Ultra HD imaging: Each TurretCam captures resolution up to 3840×2160 px, a frame rate of 20 FPS, and a viewing angle from 100° to 110° using a fixed 2.8mm lens.
• AI object recognition: The cameras use AI-analysis capabilities to detect and recognize object types, such as humans, vehicles, and pets, cutting down on irrelevant alerts and wasted storage.
• Secure video transmission: TurretCam works with JetSparrow, a fast and encrypted peer-to-peer video protocol developed by Ajax Systems.
• Weatherproof, tamper-resistant build: TurretCam has an IP65 protection class, making it suitable for outdoor installation, with a robust metal enclosure that protects the device against sabotage, and the housing also raises an alert if forcibly removed.
• Flexible archiving: Camera footage supports storage on NVR or microSD cards, and uses H.265 and H.264 codecs for efficient bandwidth use.
• 16-channel 4K-capable NVR: The NVR supports 16 channels with up to 4K resolution at 25/30 FPS and ONVIF (Profile S/T) plus RTSP compatibility for third-party cameras.
• Smart NVR tools: The NVR includes built-in motion detection with a choice of NVR or camera-based analysis, a video wall combining all connected cameras, event filters, and a smooth-preview timeline.
• Ajax ecosystem integration: The NVR lets you set up scenarios where Ajax detectors trigger specific cameras to start recording, linking intrusion alarms directly to video verification.
• Generous pre-fitted storage: This kit ships with an 8TB HDD installed, well within the NVR's supported drive capacity of up to 16 TB (SATA interface, 2.5″ or 3.5″ form factor).

Built for Homes and Businesses That Need More Than Just Cameras

This kit suits residential properties, retail stores, offices and warehouses that want dependable perimeter and indoor coverage alongside an existing or planned Ajax alarm system. Because the cameras and NVR share the Ajax app and cloud infrastructure, users can review footage, receive AI-filtered alerts, and cross-reference video with alarm events from a single interface, rather than juggling separate apps for security and surveillance.

What's in the Box

• 8 x Ajax TurretCam 8MP 2.8mm White wired IP cameras
• 1 x Ajax 16-Channel NVR (White)
• 1 x 8TB HDD (pre-installed in the NVR)
• Mounting hardware and installation template for each camera

Frequently Asked Questions

Does this kit need a network switch? Yes. This NVR model runs on 110–240 V~ mains power and is designed for indoor installation only, and it does not include built-in PoE ports, so a PoE network switch is required to power and connect the eight cameras.

Can I add more cameras later? Yes, the NVR supports up to 16 channels in total, so you can add up to eight additional Ajax or ONVIF/RTSP-compatible IP cameras as your site grows.

Will this integrate with my existing Ajax alarm? The NVR allows you to configure scenarios where Ajax detectors trigger specific cameras to begin recording, so it pairs naturally with Ajax hubs, motion detectors and other intrusion devices already installed on site.

Additional Resources

• *Network switch sold seperatly
