Ajax JunctionBox (118×59) White Weatherproof Mounting Box for IP Cameras

Ajax JunctionBox (118×59) White - Weatherproof Camera Mounting Box

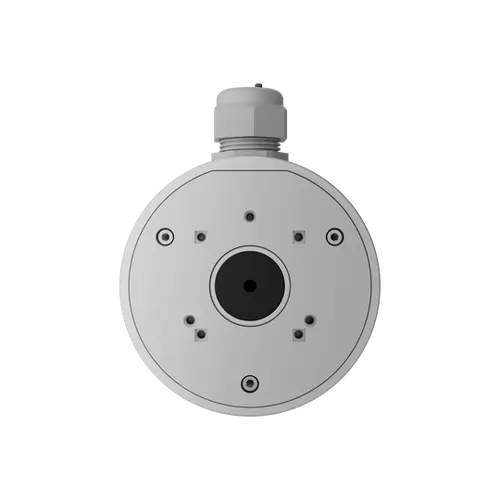

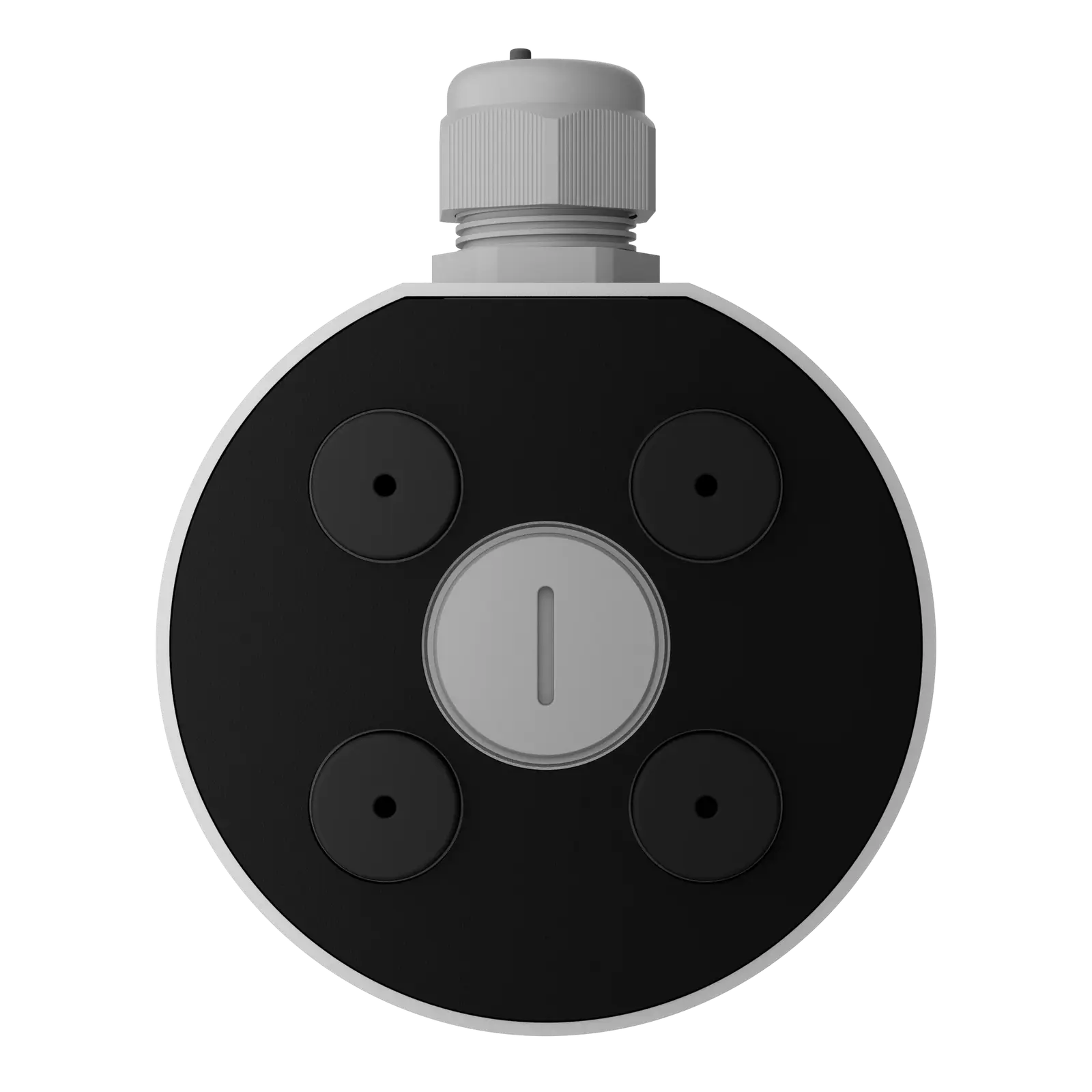

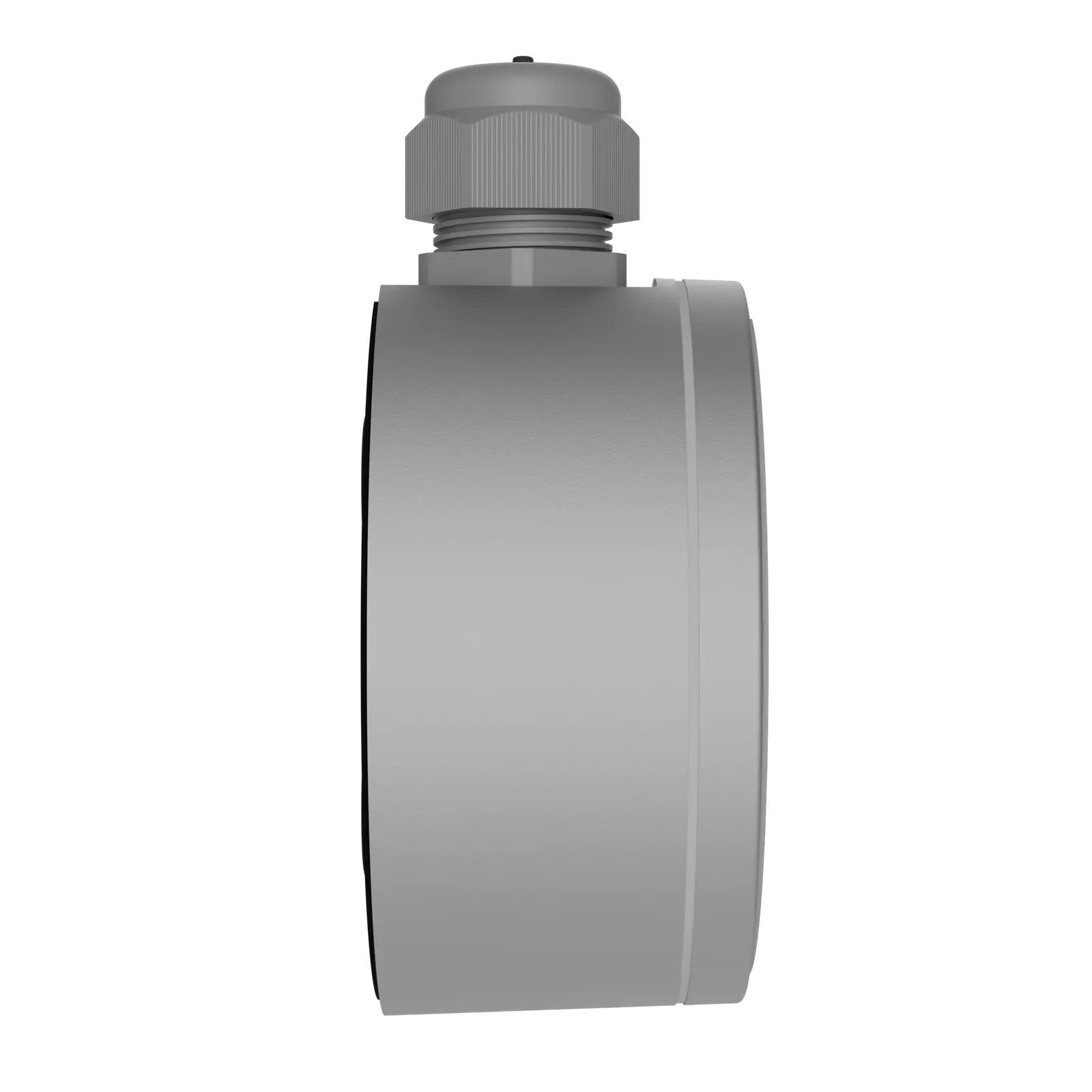

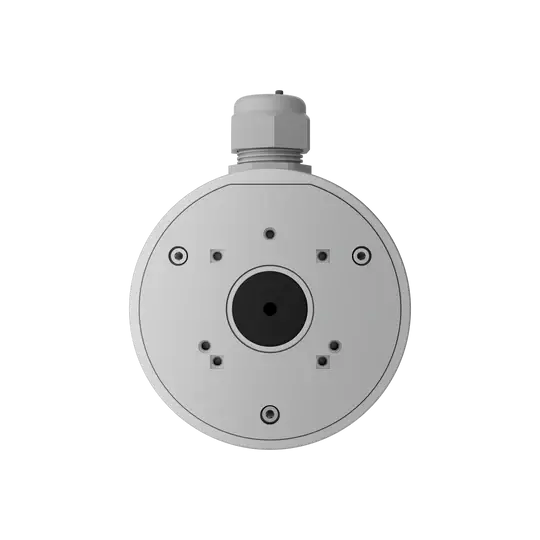

The Ajax JunctionBox (118×59) is a purpose-built aluminium mounting box designed to give Ajax IP cameras a clean, weatherproof cable management solution. Finished in white to match Ajax's video surveillance range, it allows installers to mount compatible cameras directly onto concrete walls, ceilings, or columns while keeping cabling, connectors, and terminations fully protected from moisture, dust, and tampering.

Key Features

• Durable aluminium construction: Made from ADC12 aluminium alloy for long-term strength and corrosion resistance.
• Weatherproof rating: Rated for both indoor and outdoor use, shielding cable connections from water and dust ingress.
• PG21 cable gland: Protects incoming cables from damage, bending stress, and loss of insulation during and after installation.
• Dual-cable sealing ring: Accommodates one or two cables through the gland while maintaining a watertight seal.
• Grounding terminal: Supports proper electrical earthing when installed by a qualified electrician in line with local safety codes.
• Secure lid retention: A mounting wire keeps the lid attached during installation so it cannot be misplaced or fall before screws are fitted.
• Wide operating range: Functions reliably in temperatures from -40°C to +60°C and humidity up to 90%.
• Complete installation kit included: Comes with a drilling template, mounting hardware, and a quick start guide for fast setup.

Built for Professional Camera Installations

This junction box is intended for use with Ajax's compatible IP camera range, including BulletCam, DomeCam Mini, and TurretCam models. It is especially useful on commercial sites, facades, and outdoor perimeters where cabling needs to be hidden and protected, or on concrete and masonry surfaces where a robust surface-mount enclosure is required. Because it is sold separately from the cameras themselves, it can be added to new or existing Ajax video surveillance installations as needed.

What's in the Box

• JunctionBox (118×59) enclosure in white
• Installation drilling template
• Mounting/installation kit (screws and fixings)
• PG21 cable gland with sealing ring
• Quick start guide

Frequently Asked Questions

Which cameras is the JunctionBox compatible with?
It is designed to work with Ajax's BulletCam, DomeCam Mini, and TurretCam IP cameras.

Can it be used outdoors?
Yes. Its aluminium housing and cable gland make it suitable for both indoor and outdoor mounting, including on exposed walls and columns.

Does the box include the camera?
No, the JunctionBox is sold separately and is intended as a mounting and cable management accessory for compatible Ajax cameras.
