Ajax MountCam A2 White 174mm Wall Bracket for IP Cameras

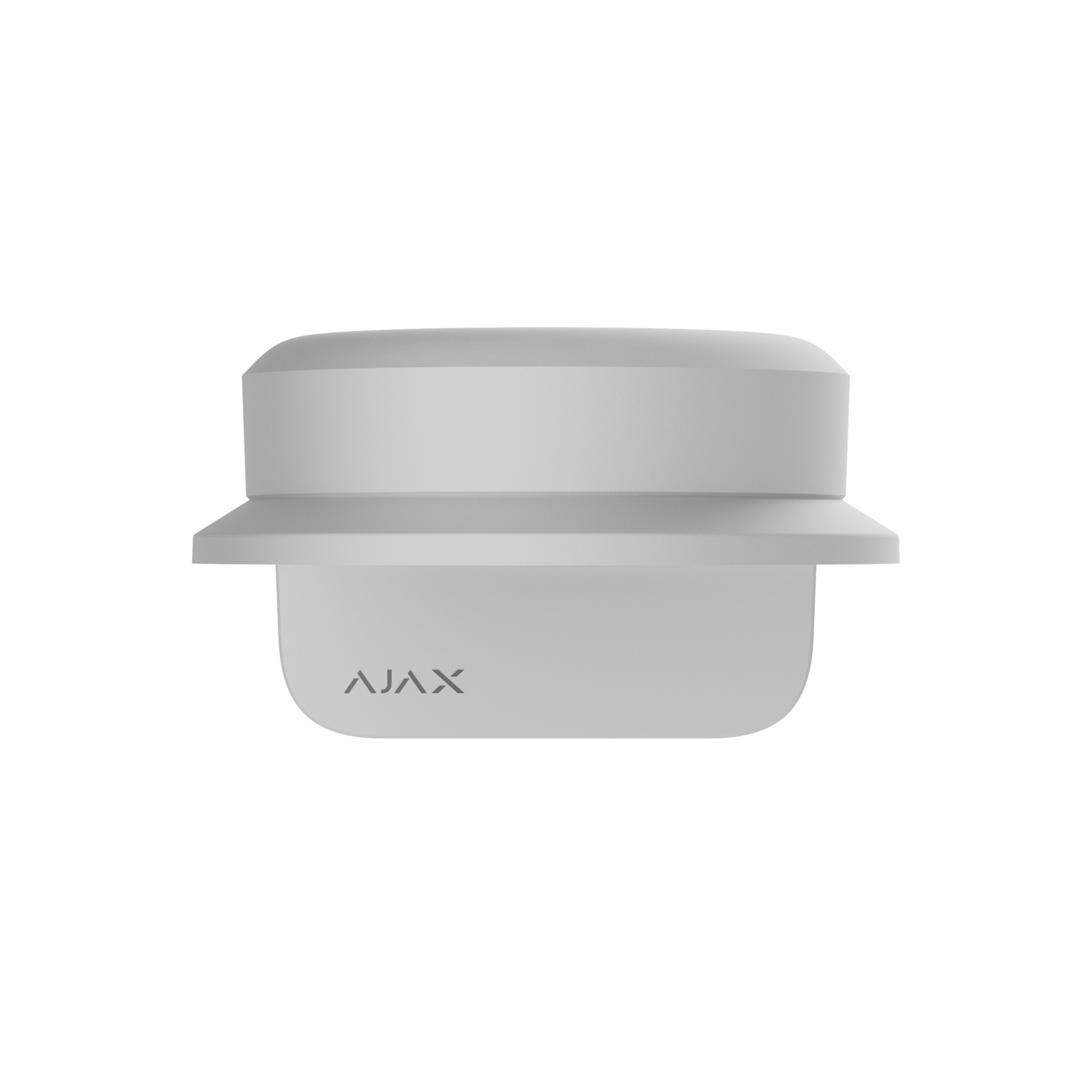

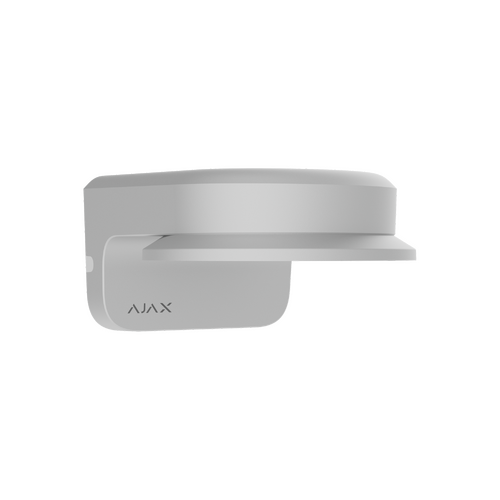

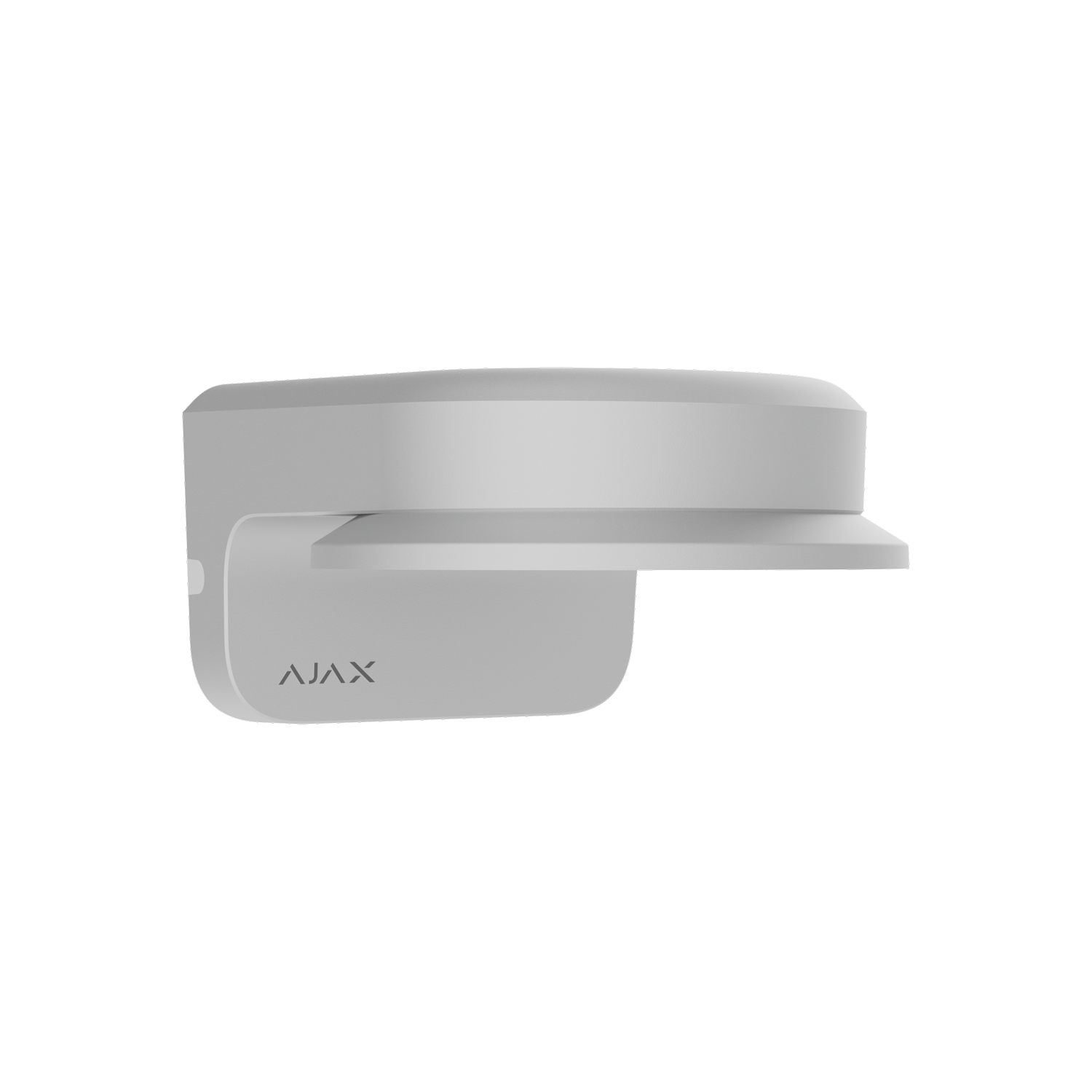

Ajax MountCam A2 White Wall Bracket

The Ajax MountCam A2 in White is a purpose-built wall mount for Ajax's wired IP camera range, designed to solve tricky installation angles without compromising on style. With its compact 174mm L-shaped arm, it positions cameras at a precise 90° angle to the mounting surface, helping installers avoid obstructions such as eaves, neighbouring walls, or pillars while keeping the overall look clean and professional. It includes a dedicated adapter for cameras with a motorised varifocal lens, extending its compatibility across much of the Ajax camera lineup.

Key Features

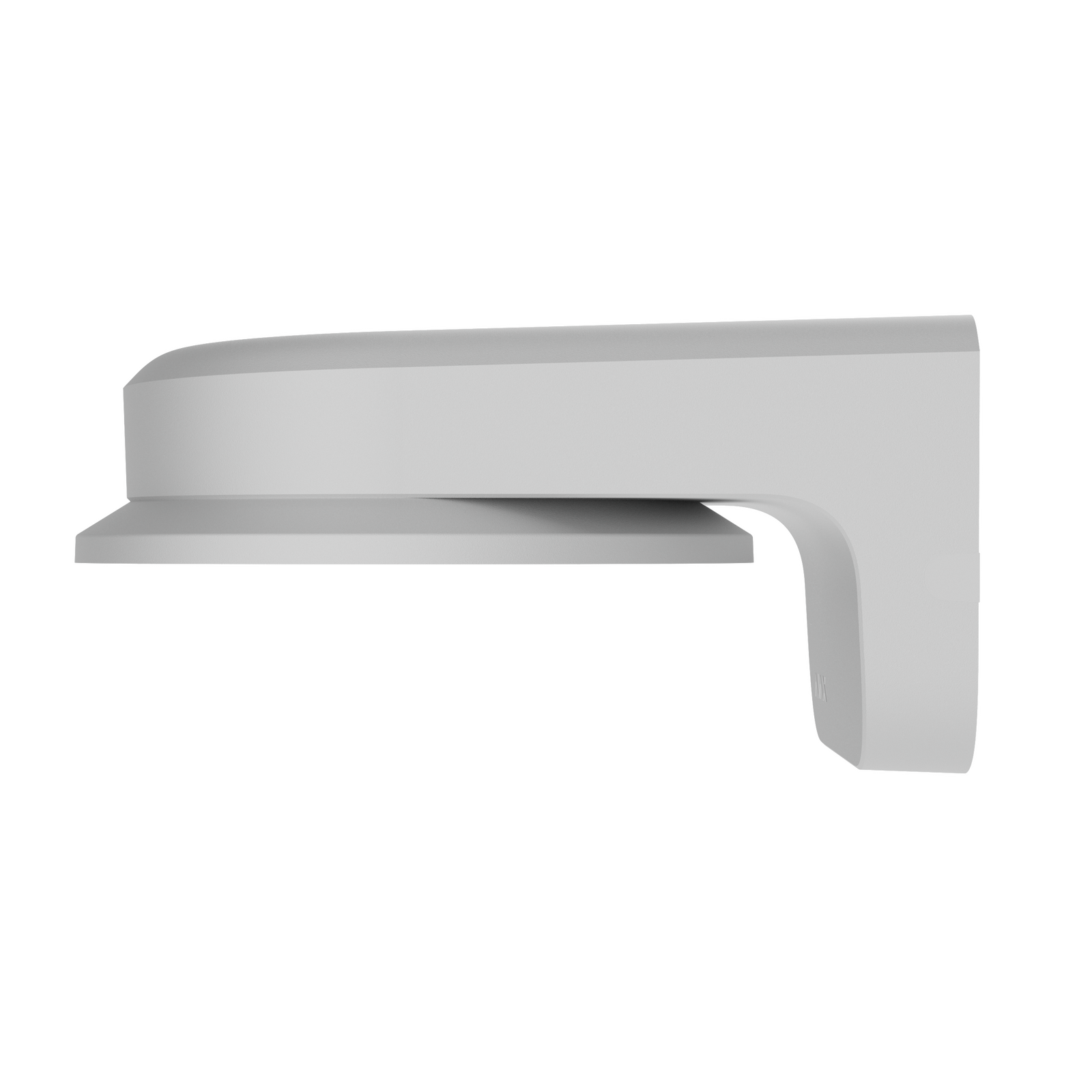

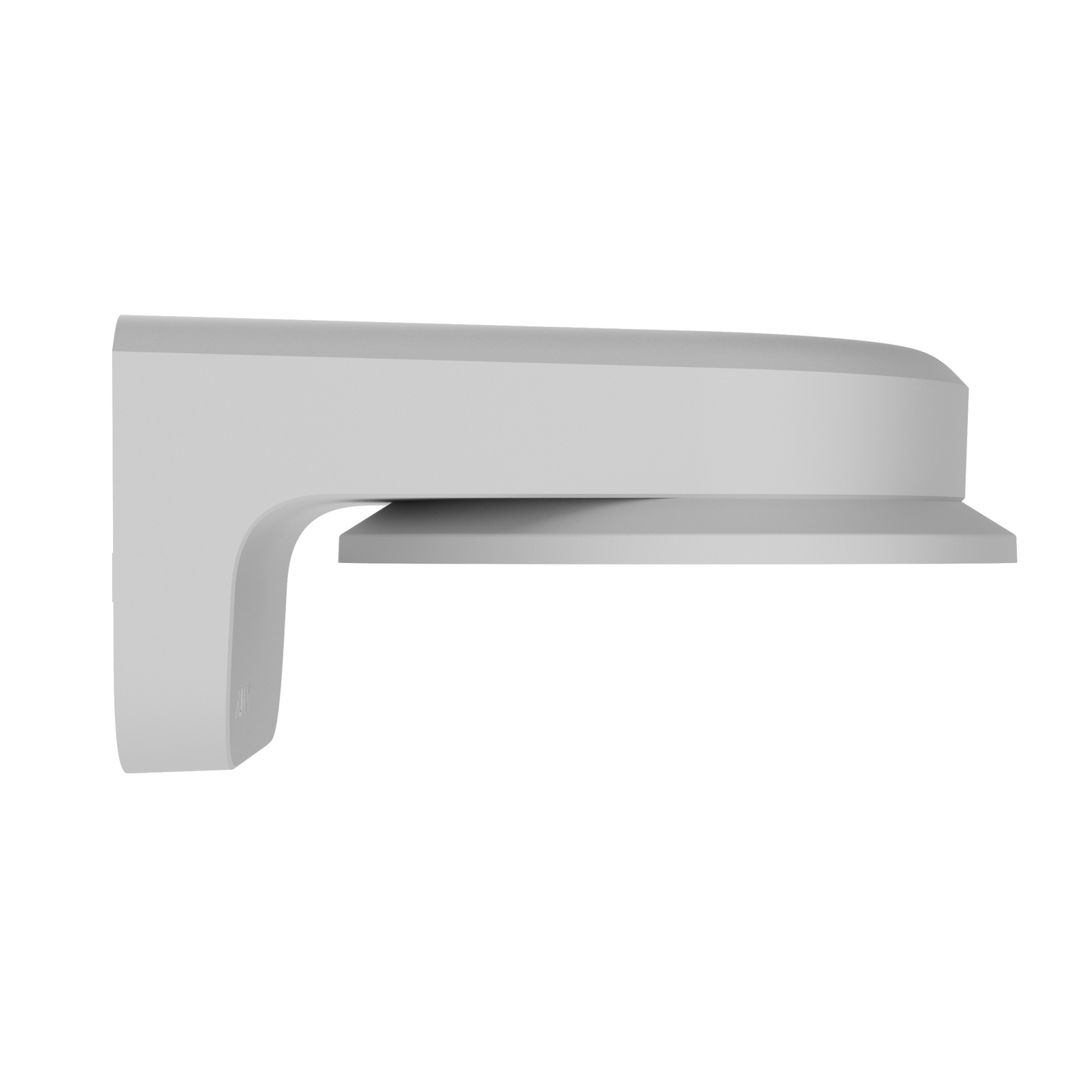

• 174mm (6.85in) short-arm design for compact, close-to-wall camera positioning
• Motorised varifocal lens adapter included, supporting HLVF-series cameras
• Compatible with BulletCam (HL), TurretCam (HL), DomeCam Mini (HL), Superior TurretCam HLVF, Superior DomeCam Mini HLVF, and Superior BulletCam HLVF
• Indoor and outdoor rated for flexible deployment on any site

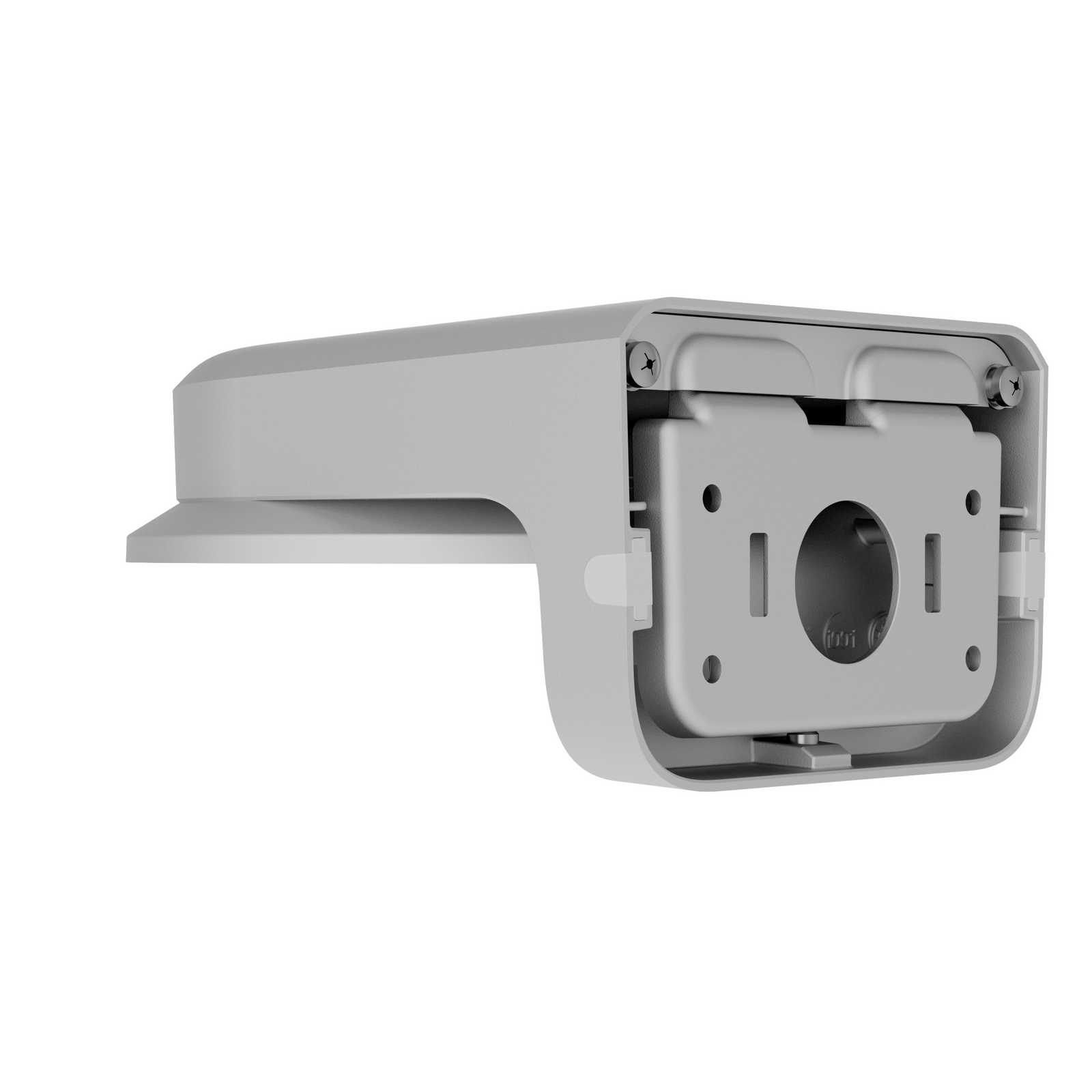

• Concealed cable routing keeps wiring tidy and protected from the elements

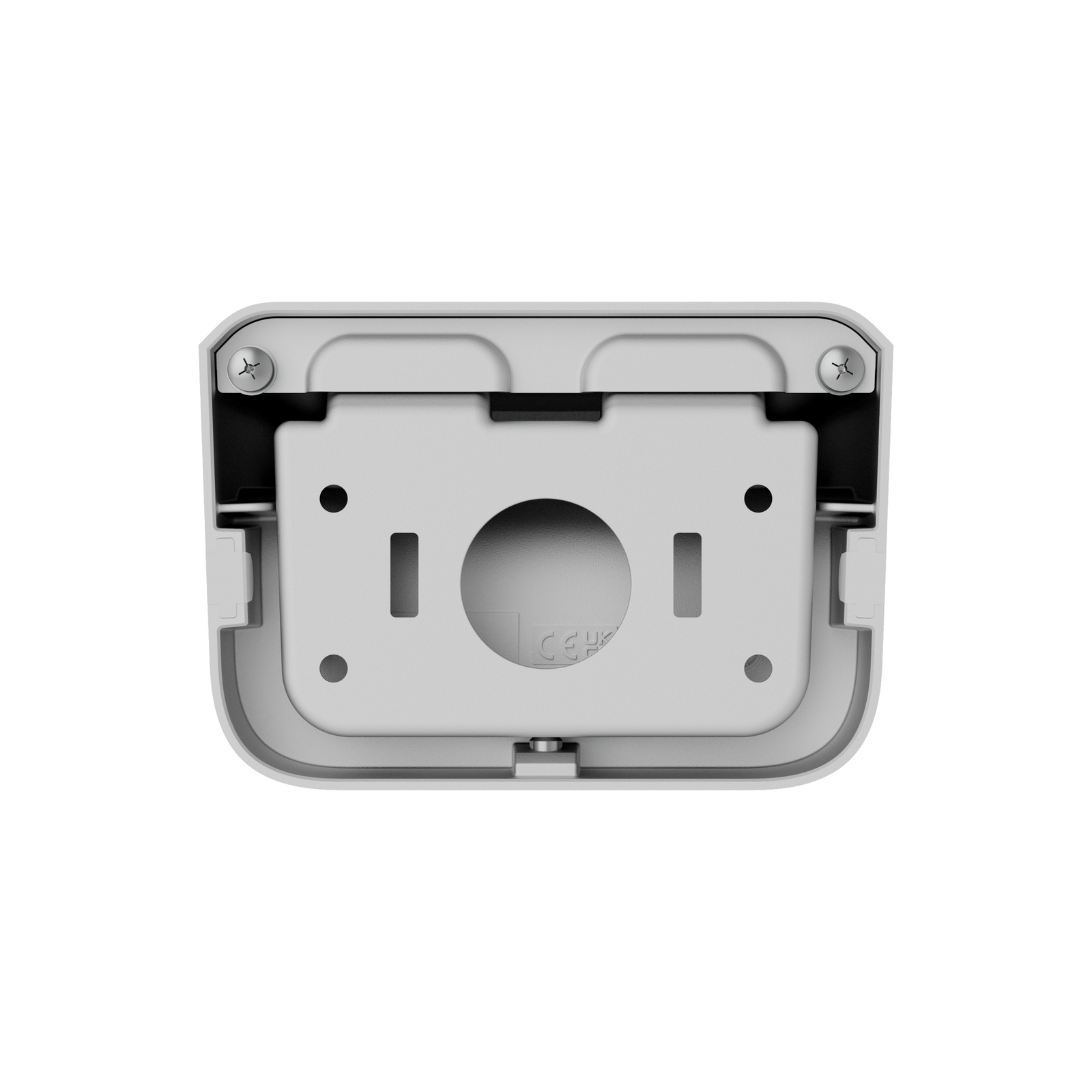

• Pre-drilled fixing points and installation template for fast, accurate mounting
• Captive holding screws and bundled hexagon key simplify one-person installation
• Strap slots allow the bracket to be secured to poles as well as walls
• Matching white finish blends seamlessly with Ajax camera housings for a cohesive look

Where to Use It

The MountCam A2 is ideal wherever a standard camera base won't give the coverage you need - under building eaves, near boundary walls, behind columns, or in narrow entryways where the field of view would otherwise be restricted. Its short-arm profile keeps the installation discreet, making it a practical choice for retail entrances, residential facades, and commercial perimeters where both performance and appearance matter.

What's in the Box

• MountCam A2 wall bracket (White)
• Varifocal camera adapter
• Installation template
• Mounting screws and fasteners
• Hexagon key for installation

Frequently Asked Questions

Is a camera included with this bracket?
No, the MountCam A2 is sold separately from Ajax cameras and is designed to be paired with a compatible model of your choice.

Will this bracket work with BulletCam HLVF?
No, BulletCam HLVF is not compatible with any MountCam bracket, including the A2.

Can it be mounted on a pole instead of a wall?
Yes, the bracket includes strap slots specifically for securing it to a pole in addition to standard wall mounting.
