LTS 2-Wire Flush-Mount Video Intercom Kit with 2x White 7" Monitors

LTS 2-Wire Flush-Mount Video Intercom Kit with Dual White 7" Monitors

This LTS 2-Wire intercom kit is a complete flush-mount video door entry solution designed for homes or small multi-occupant properties needing two indoor monitor points from a single door station. Built around LTS's 2-wire architecture, the kit uses simple twisted-pair cabling instead of standard network cabling, making it ideal for retrofits and renovations where running new data cable is difficult. The bundle pairs a fisheye camera door module in a flush aluminium frame with two 7-inch white touchscreen monitors and a 6-channel distributor, giving installers everything required for a two-monitor residential setup.

Key Features

• 2.0MP fisheye door camera capturing 1920 x 1080 video at up to 30fps with a wide 180° horizontal field of view for full visitor coverage
• Auto day/night switching with IR illumination for clear identification of visitors in low-light or after-dark conditions
• Built-in omnidirectional microphone and loudspeaker on the door station with echo cancellation for clear two-way conversation
• Flush-mount aviation-grade aluminium frame for a discreet, professional-looking installation flush with the wall or door surrounds
• Dual 7-inch touchscreen indoor monitors in white finish, supporting handsfree operation with built-in microphone and speaker
• Local recording via microSD on each monitor, supporting cards up to 32GB for storing call logs and snapshots
• Built-in Wi-Fi (802.11b/g/n) on the monitors for network connectivity without additional cabling
• 6-channel 2-Wire audio/video distributor with a 10/100Mbps network port, allowing the system to scale and integrate with LTS NVR platforms
• Tamper alarm and wide operating temperature range on the door station suit both indoor and outdoor entry points

Ideal for Multi-Room Residential Installations

This kit suits homeowners or installers who want visual and audio verification of visitors from more than one room, such as a kitchen and a main bedroom, without duplicating door hardware. Because the system runs on 2-wire cabling and includes a distributor supporting up to six channels, additional monitors can be added later, making this an efficient starting point for a small apartment, townhouse, or single-family home wanting an expandable video intercom setup.

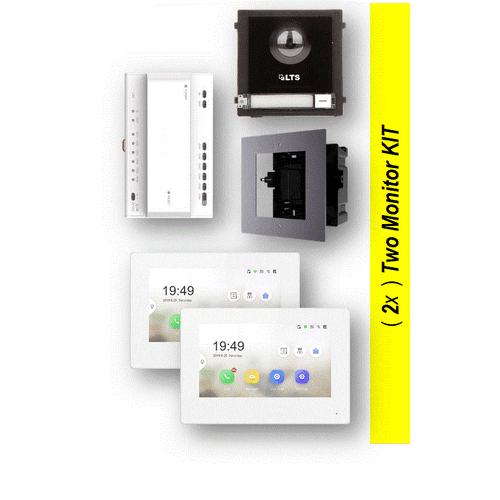

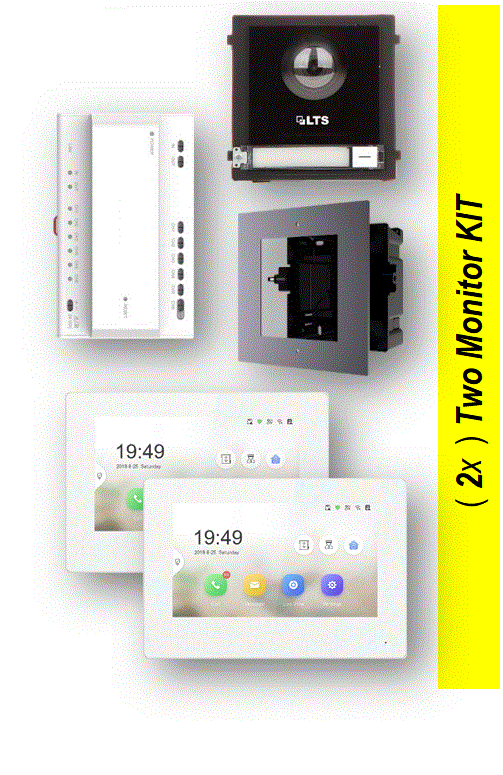

What's in the Box

• 1x LTH-M201-C-2 – 2-Wire Audio/Video Door Station Camera Module
• 1x LTH-M201-1F – Flush-Mount Frame for Single Door Station Module
• 2x LTH-D301GY-WIFI-2W – 7" Touchscreen 2-Wire Indoor Monitor (White)
• 1x LTH-MD06-2 – 2-Wire 6-Channel Audio/Video Distributor with Power Adaptor

Frequently Asked Questions

Can this kit be expanded with more monitors later?
Yes. The included distributor supports up to six 2-wire channels, so additional compatible indoor monitors can be added beyond the two supplied in this kit.

Does the door station require a separate power supply for an electric lock?
Yes, the door station module's lock relay output typically needs its own separate power supply, as it operates via a dry contact relay rather than supplying lock power directly.

Is this kit suitable for a surface-mount installation instead of flush-mount?
This particular kit includes a flush-mount frame; a surface-mount frame variant of the same door station module is available separately for LTS 2-Wire kits if flush installation isn't practical.

Additional Resources

• Cabling Guide - Link
