LTS 2-Wire Flush-Mount Video Intercom Kit with 7" Black Touchscreen Monitor

LTS 2-Wire Flush-Mount Video Intercom Kit with 7" Black Touchscreen Monitor

This LTS 2-Wire Intercom Kit gives homes, apartments, and small commercial sites a complete video door entry solution using only a single 2-core cable run between the door station and the indoor monitor. The kit bundles a fisheye-lens outdoor camera module, a flush-mount aluminium frame, a 7-inch touchscreen indoor monitor in black trim, and a 6-channel audio/video distributor, so installers avoid sourcing components separately or worrying about cabling compatibility. Because it runs on a simplified 2-wire architecture rather than standard 4-core or Cat5e cabling, it is well suited to retrofits and renovations where running new conduit is difficult.

Key Features

• 2.0MP fisheye door camera capturing 1920 x 1080 video at 30fps with a wide 180-degree horizontal field of view for full coverage at the entry point
• Auto day/night IR switching with WDR, BLC, and DNR processing for clear images in low light and high-contrast conditions
• Built-in omnidirectional microphone and loudspeaker with echo cancellation for natural two-way conversation at the door
• 7-inch capacitive touchscreen indoor monitor in black trim with a modern, user-friendly interface
• Built-in Wi-Fi (802.11b/g/n) plus a 10/100Mbps Ethernet port for flexible network connectivity and remote app access
• Flush-mount aviation-grade aluminium frame included for a clean, recessed installation with all fixing hardware supplied
• 6-channel 2-wire distributor to manage power and signal distribution, supplied with a 24V DC power adaptor
• Micro SD support up to 32GB for local storage of captured snapshots and call logs
• IP65-rated, tamper-alarmed door station rated for outdoor use across a wide -40°C to 60°C operating range

Typical Applications

This kit is designed for single-entry residential properties, townhouses, and small offices that need a reliable video intercom without the cost or complexity of a full IP-based system. The flush-mount design suits builders and renovators who want the outdoor station to sit neatly into a wall or door frame rather than protrude, while the included distributor and Wi-Fi-enabled monitor make it straightforward to expand call handling or connect to the LTS NVMS software for centralised management alongside existing LTS NVR and camera infrastructure.

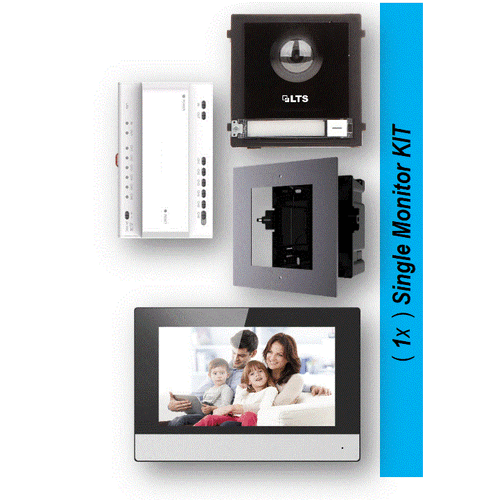

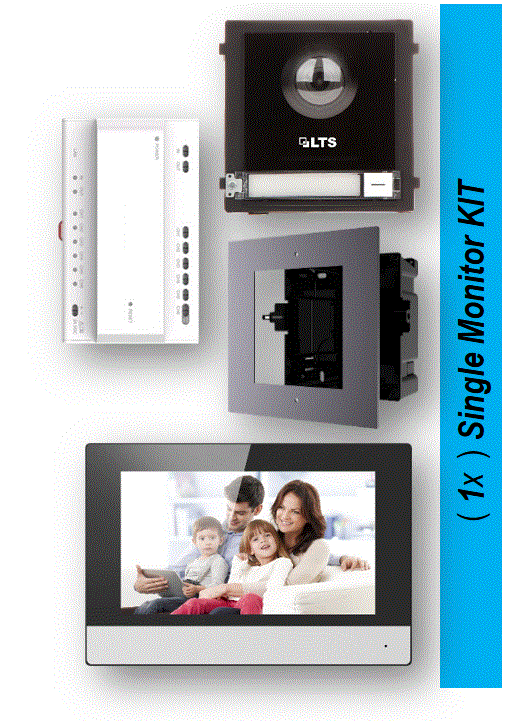

What's in the Box

• 1x LTH-M201-C-2 – 2-Wire Audio/Video Door Station Camera Module
• 1x LTH-M201-1F – Single Module Flush-Mount Frame with fixing hardware
• 1x LTH-D301GY-WIFI-2 – 7" Touchscreen 2-Wire Indoor Monitor (Black trim)
• 1x LTH-MD06-2 – 2-Wire 6-Channel Audio/Video Distributor with 24V DC power adaptor

Frequently Asked Questions

Does this kit require special cabling?
No. The system uses a simplified 2-wire cable between the door station, distributor, and indoor monitor, which is generally easier to install than traditional 4-core or network cabling.

Can the electric door lock be powered directly from this kit?
No, the door station's lock relay output requires its own separate power supply, as the kit's included power adaptor only powers the intercom components.

Can I add more monitors or door stations later?
Yes, the 6-channel distributor and Wi-Fi-enabled monitor support expansion to multiple indoor stations, subject to the distributor's channel capacity.

Additional Resources

• Cabling Guide - Link
