LTS 2-Wire Flush-Mount Video Intercom Kit with White 7" Touchscreen Monitor

LTS 2-Wire Flush-Mount Video Intercom Kit (White Monitor)

This complete LTS 2-Wire intercom kit gives single-dwelling and light commercial installations a straightforward upgrade to video door entry without the cost or complexity of running Cat5e cabling to every device. Built around LTS's proven 2-Wire architecture, the kit bundles a fisheye door station camera module, a flush-mount frame, a 7-inch touchscreen indoor monitor in white trim, and the distributor module that ties everything together over a simple two-conductor cable run. It's a practical fit for renovations or new builds where minimising wall chasing and cable runs is a priority.

Key Features

• 2-Wire signal distribution - video, audio, and power share a single twisted pair, dramatically simplifying cabling compared to IP-based intercoms
• 2.0MP fisheye door camera delivering 1920 x 1080 resolution at 30fps with a wide 180-degree horizontal field of view
• Auto day/night switching with IR illumination for clear identification of visitors in low light
• Built-in omnidirectional microphone and loudspeaker with echo cancellation for natural two-way conversation
• 7-inch touchscreen indoor monitor in a clean white finish, supporting handsfree operation and micro SD recording up to 32GB
• Integrated Wi-Fi (802.11b/g/n) on the monitor for smoother setup and companion app connectivity
• Aviation-grade aluminium flush-mount frame with all fixing hardware included for a neat, in-wall finish
• 6-channel 2-Wire distributor with a 10/100Mbps network port and included 24V DC power adaptor, allowing future expansion
• Weatherproof door station rated IP65 with a wide operating temperature range for outdoor use in most Australian climates

Typical Applications

This kit suits single-entry residential properties, townhouses, and small offices that want video verification at the front door plus an indoor monitor to answer calls, view live video, and release the door remotely. Because the 2-Wire distributor supports up to six channels, the same door station can later be linked to additional indoor monitors in a larger home, or paired with extra distributors for small multi-unit developments, without re-cabling the door station itself.

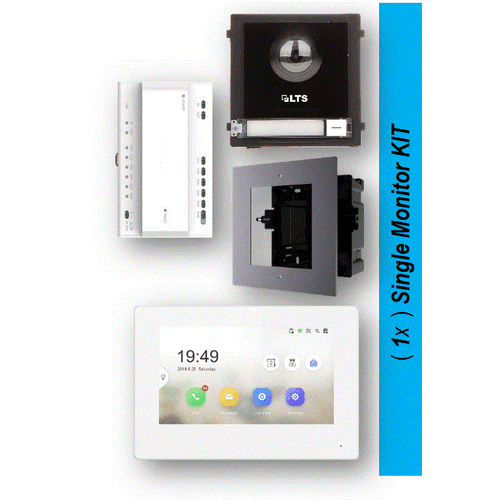

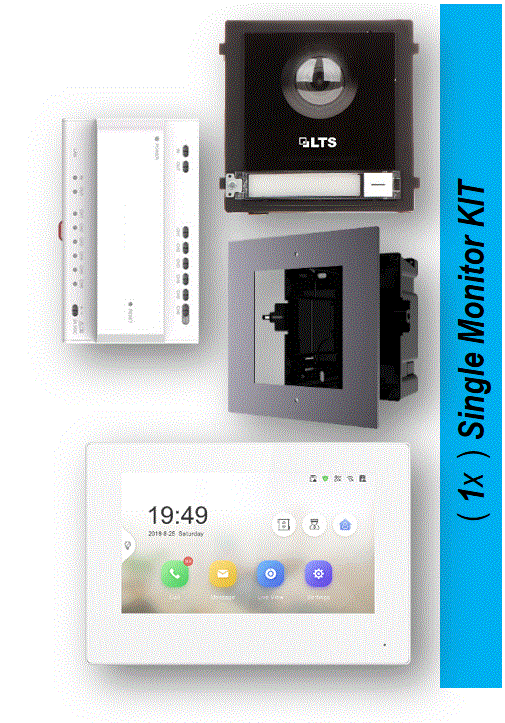

What's in the Box

• 1x LTH-M201-C-2 - 2-Wire Audio/Video Door Station Module with fisheye camera
• 1x LTH-M201-1F - Single-module flush-mount frame with fixing hardware
• 1x LTH-D301GY-WIFI-2W - 7" Wi-Fi Touchscreen Indoor Monitor (White trim)
• 1x LTH-MD06-2 - 2-Wire 6-Channel Audio/Video Distributor with 24V DC power adaptor

Frequently Asked Questions

Do I need to run network cable to the door station? No - the door station, distributor, and monitor communicate over a simple two-wire connection, and the distributor provides a separate network port only if you want NVR or app integration.

Can I add more monitors later? Yes, the included LTH-MD06-2 distributor supports up to six channels, so additional 2-Wire monitors can be added within its capacity without replacing existing hardware.

Does the door station work at night? Yes, it uses automatic day/night switching with infrared illumination so visitors remain visible even in low-light conditions.

Additional Resources

• Cabling Guide - Link
