LTS 2-Wire Video Door Intercom Kit with 2x White 7" Monitors (Surface-Mount)

LTS 2-Wire Modular Video Intercom Kit with Dual White 7" Monitors

This LTS 2-Wire Intercom Kit is a complete surface-mount video door entry solution built for homes or small multi-unit properties that need more than one indoor monitor answering the same front door. The kit bundles a fisheye door station camera module, a surface-mount housing, two white-trim 7-inch touchscreen indoor monitors, and the 2-wire audio/video distributor required to link everything together over just two conductors, avoiding the cost and complexity of a full structured cabling run.

Key Features

• 2.0MP fisheye door camera capturing 1920 x 1080 video at up to 30fps with a 180-degree horizontal field of view for a wide view of visitors at the door.
• Auto day/night switching with IR illumination, helping maintain a clear image in low-light or nighttime conditions.
• Built-in omnidirectional microphone and loudspeaker on the door station for clear two-way communication with visitors.
• Two 7-inch touchscreen indoor monitors (White), letting occupants answer the door from two separate rooms or floors.
• Handsfree audio on each monitor via an integrated microphone and speaker.
• Micro SD card support (up to 32GB) on the monitors for storing captured snapshots or messages.
• Wi-Fi connectivity (802.11b/g/n) on the indoor monitors for flexible placement without needing a network cable at every unit.
• 6-channel, 2-wire audio/video distributor with a 10/100Mbps network port, allowing multiple monitors and modules to share the same two-wire cable run.
• Aviation-grade aluminium surface-mount frame, supplied with all mounting hardware for a tidy exterior installation.

Ideal for Homes and Small Multi-Occupancy Sites

Because the door station, monitors, and distributor all communicate over a simple two-wire connection, this kit suits renovations, retrofits, or new builds where running full structured cabling to every room is impractical. The inclusion of two indoor monitors makes it a practical choice for a home with a separate living area or granny flat, or for small offices where reception staff in different rooms need to see and answer the same door station.

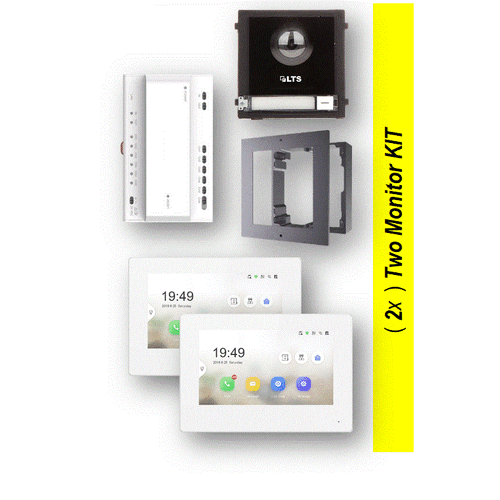

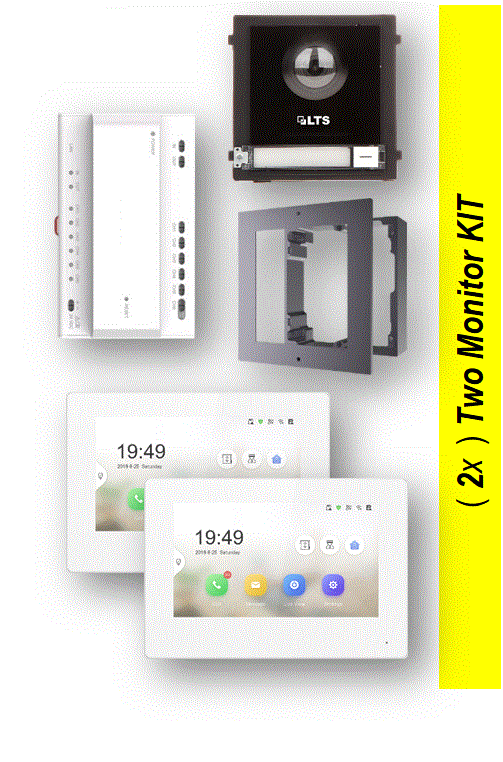

What's in the Box

• 1x LTH-M201-C-2 2-Wire Audio/Video Door Station Camera Module
• 1x LTH-M201-1S Single Module Surface-Mount Frame with fixing hardware
• 2x LTH-D301GY-WIFI-2W 7-inch Touchscreen Indoor Monitors (White trim)
• 1x LTH-MD06-2 6-Channel 2-Wire Audio/Video Distributor with DC 24V power adaptor

Frequently Asked Questions

Can I add more monitors later?
The included LTH-MD06-2 distributor supports up to six channels, so additional compatible 2-wire monitors can generally be added within that limit, subject to correct cabling.

Do I need existing network cabling to install this kit?
No. The system is designed to run over a simple two-wire connection between the door station, distributor, and monitors, which simplifies retrofits where new cabling is difficult to install.

Is this door station suitable for outdoor use?
Yes, the door station module is rated for outdoor conditions and includes tamper alarm protection, making it suitable for surface mounting at an entry point.

Additional Resources

• Cabling Guide - Link
