Akuvox R20A & S562 7" IP Video Intercom Kit - Grey

Akuvox R20A & S562 7" IP Video Intercom Kit - Grey

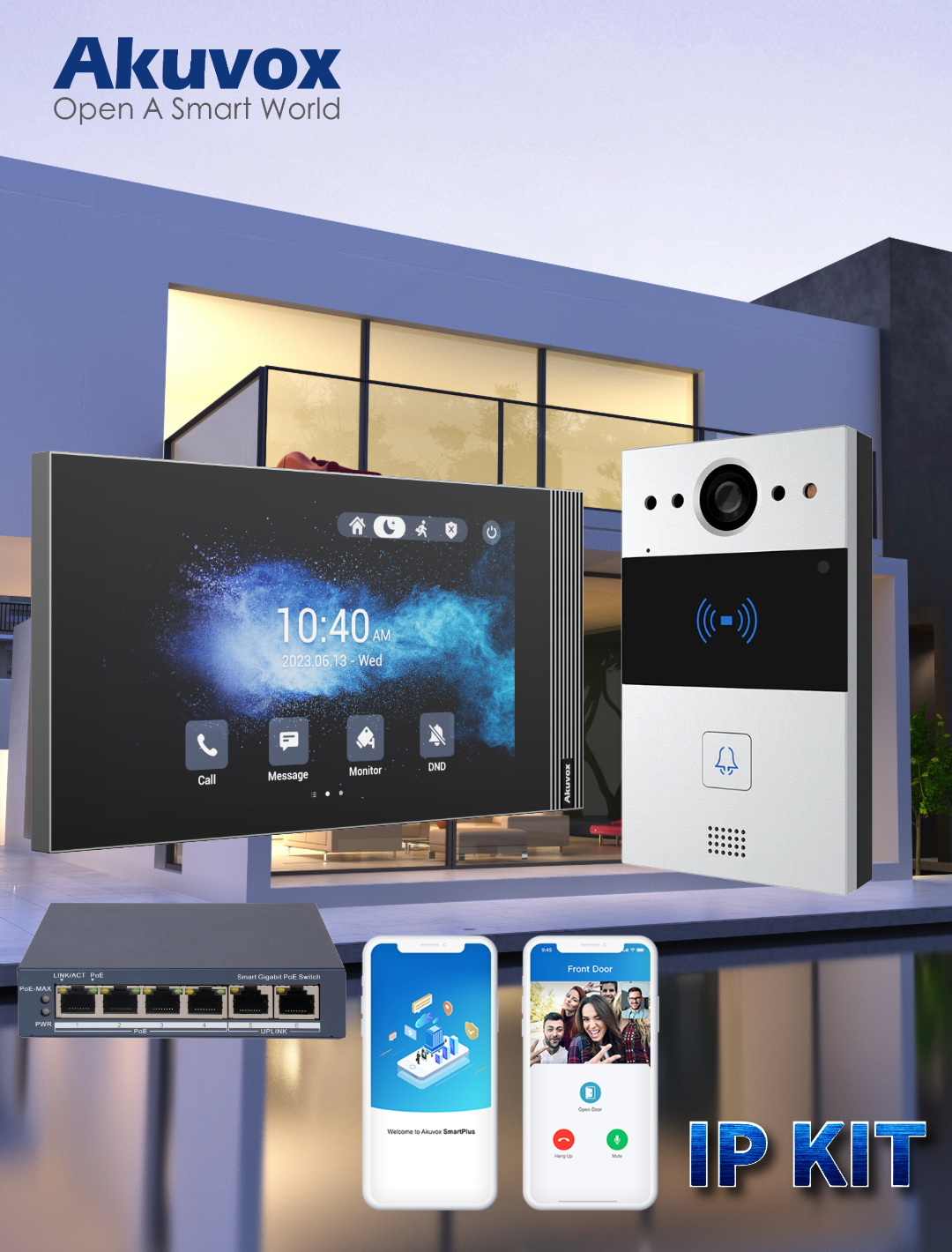

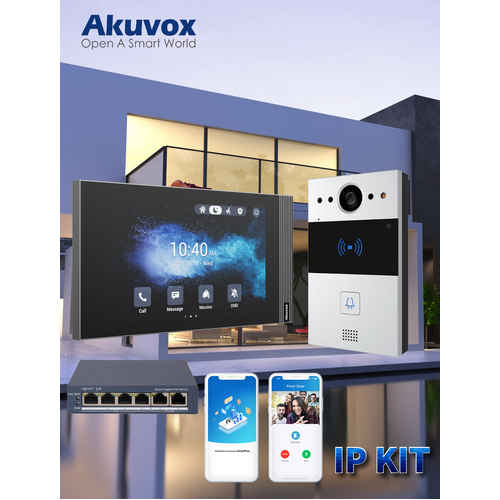

This Akuvox IP intercom kit pairs the compact R20A SIP video door station with the 7-inch S562 Linux-based indoor touchscreen monitor, plus a 4-channel PoE switch to power the whole system from a single network run. Designed for apartments, townhouses and small offices, the kit delivers two-way audio/video communication between visitors at the door and residents inside, along with remote door release and card-based access. It's a ready-to-install package for anyone upgrading from a legacy analogue intercom to a modern SIP/IP-based system.

Key Features

• Compact door station: The R20A has a slim, palm-sized aluminium alloy front panel designed to suit narrow installation spaces such as door frames.
• Sharp camera with night vision: A 2-megapixel wide-angle camera with automatic infrared lighting keeps visitors visible day or night.
• Built-in access control: Integrated 13.56MHz RFID card reader plus Wiegand and RS485 support for connecting external access control hardware.
• 7-inch touchscreen monitor: The S562 runs on a Linux platform with a responsive capacitive touch display for intuitive call handling and navigation.
• SIP 2.0 based communication: Full duplex audio and HD video calling between door station and monitor, with echo cancellation for clear conversations.
• Dual relay outputs: The door station can trigger up to two separate relays, useful for controlling a door strike and a secondary gate or barrier.
• PoE powered throughout: The included 4-channel PoE switch powers both the door station and monitor over standard Ethernet cabling, simplifying installation.
• Space-saving, modern design: A compact monitor body and grey finish that blends into contemporary interiors without dominating the wall.
• Smart intercom ecosystem: Compatible with Akuvox's wider smart intercom and cloud management platform for remote firmware updates and monitoring.

Ideal for Apartments, Townhouses and Small Offices

This kit suits residential entrances, single-tenant offices and small multi-unit buildings that need a straightforward video intercom upgrade without extensive rewiring. Because both the door station and monitor draw power over Ethernet via the bundled PoE switch, installers can deploy the system with standard data cable rather than running separate low-voltage power, making it a practical retrofit for existing cabling paths. The RFID reader and relay outputs also allow the door station to double as a basic access control point for staff or residents.

What's in the Box

• 1 x Akuvox R20A SIP Video Door Station
• 1 x Akuvox S562 7" Indoor Monitor - Grey
• 1 x 4-Channel PoE Switch

Frequently Asked Questions

Does this kit need a separate power supply?
No. The included 4-channel PoE switch powers both the R20A door station and the S562 monitor over standard Ethernet cabling.

Can the door station unlock more than one door?
Yes. The R20A has two relay outputs, so it can be configured to trigger a door strike and a secondary gate or barrier.

Is the monitor a touchscreen?
Yes. The S562 features a 7-inch capacitive touchscreen running on a Linux platform for smooth navigation and call handling.
