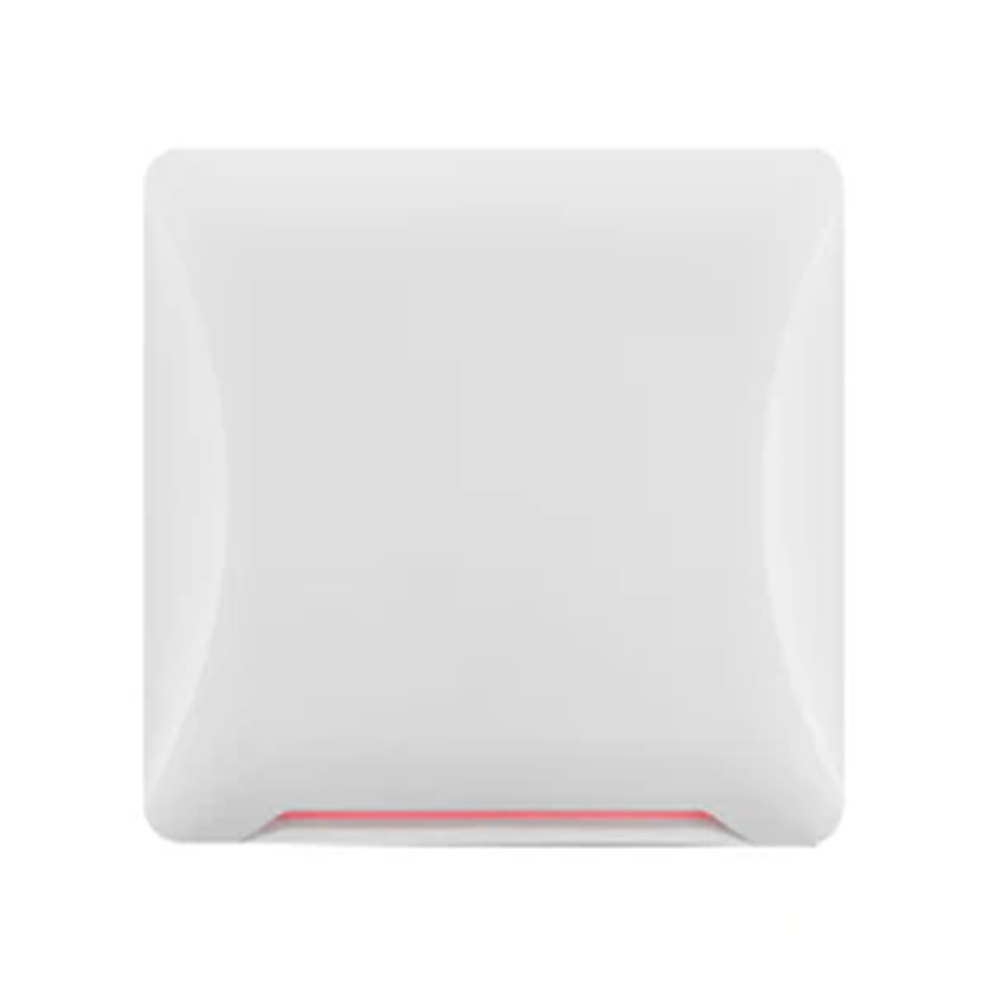

Akuvox ACR-CRP12 Long-Range UHF Vehicle Access Card Reader

Akuvox ACR-CRP12 Long-Range UHF Vehicle Access Card Reader

The Akuvox ACR-CRP12 is an ultra-high frequency (UHF) access control reader purpose-built for automated vehicle identification. Designed to detect windshield-mounted UHF tags or stickers from a distance, it lets vehicles roll through gates and boom barriers without the driver stopping to swipe a card or scan a fob. With an IP66-rated weatherproof enclosure, multiple wired interfaces, and a long service life, it is a practical hardware choice for car parks, gated estates, logistics yards, and other vehicle-heavy access points.

Key Features

• Long-range UHF detection - reads compatible UHF vehicle tags at typical distances up to 10 metres, with configurable power output for tuning the read zone.
• Weatherproof IP66 housing - rated for continuous outdoor use in rain, dust, and harsh site conditions.
• Multiple connection options - supports Wiegand (WG26/WG34/WG58), USB, TCP/IP, and RS485, allowing integration with a wide range of controllers and third-party access systems.
• Multi-colour status indicator - LED feedback in red, yellow, green, blue, cyan, purple, and white for clear visual confirmation of read events and system status.
• Built-in buzzer - provides audible confirmation when a tag is successfully read.
• Wide operating voltage - runs on DC 9-15V for flexible power supply options.
• Compact, robust build - durable plastic housing designed for gate posts, boom barriers, and pillar-mounted installations.
• Configurable read modes - can be set to read continuously or triggered on demand, with adjustable read timing to suit traffic flow.

Ideal for Automated Vehicle Access

The ACR-CRP12 is intended for scenarios where hands-free, contactless vehicle entry matters most, such as residential estate car parks, commercial parking facilities, gated communities, warehouses, and logistics or fleet depots. It is typically paired with an Akuvox UHF windshield tag and connected via Wiegand to an Akuvox door phone or third-party access controller, which then triggers the gate or barrier once the vehicle credential is verified. This setup reduces bottlenecks at entry points and removes the need for drivers to lower a window or manually present a card.

What's in the Box

• Akuvox ACR-CRP12 UHF reader unit
• Mounting hardware/bracket
• Wiring terminals for power and interface connections
• Quick installation guide

Frequently Asked Questions

Does the ACR-CRP12 work with any UHF tag?
It is designed to work with Akuvox's UHF vehicle tags and is compatible with standard UHF RFID credentials, but for guaranteed compatibility it should be paired with Akuvox-approved tags and door phones/controllers.

Can this reader be used indoors and outdoors?
Yes. Its IP66 rating means it can be mounted outdoors on gate posts or barrier arms, as well as in sheltered indoor car park entrances.

How is it connected to an access controller?
Most installations use the Wiegand interface to link the ACR-CRP12 to a door phone or access control panel, though USB, TCP/IP, and RS485 options are also available for other integration setups.

Additional Resources

• Admin Guide
