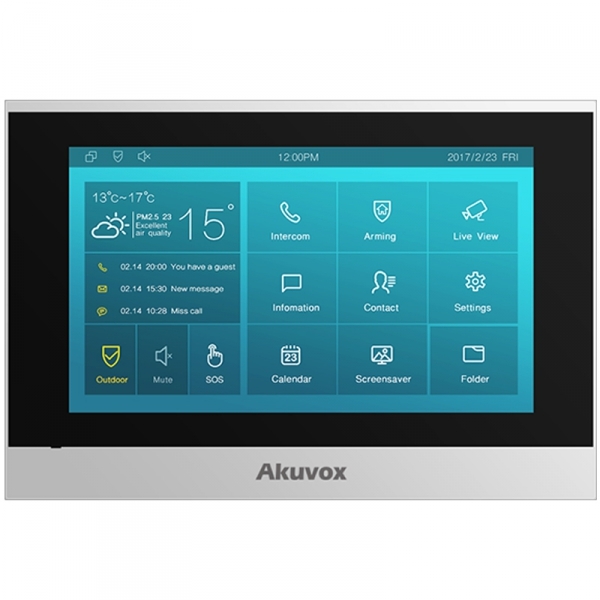

Akuvox C313W-2 7" Touchscreen 2-Wire Indoor Monitor - Silver

Akuvox C313W-2 7" 2-Wire Touchscreen Indoor Monitor (Silver)

The Akuvox C313W-2 is a compact, Linux-based indoor monitor built for buildings that already have 2-wire intercom cabling in place. Its 7-inch capacitive touchscreen delivers an 800x480 display for crisp video calls, while native SIP 2.0 support lets it communicate directly with compatible Akuvox door stations and other SIP-based intercom hardware. Finished in a slim silver housing with a black bezel, it is designed to blend into hallways, entryways and living spaces without drawing attention.

Key Features

• 7-inch capacitive touchscreen with 800x480 resolution for clear video and simple on-screen navigation
• 2-wire connectivity that reuses existing analogue intercom cabling, cutting down on retrofit labour and cost
• Built-in Wi-Fi (2.4GHz 802.11 b/g/n) and Bluetooth for flexible network setup and mobile pairing
• SIP v1/v2 protocol support with G.711A/μ, G.729 and G.722 audio codecs for reliable two-way calling
• RS485 port, relay output and alarm input for connecting sensors, gate relays and third-party access hardware
• TF card slot for local storage of call logs and snapshots
• Energy-saving standby mode to reduce idle power draw
• Flexible mounting on a wall or desktop with an optional stand, and support for standard US/EU wall boxes
• Wide operating range from -10°C to +45°C, suited to most indoor Australian climates

Where It Fits

The C313W-2 suits apartment blocks, townhouses and small offices where a 2-wire door entry system is already installed, or where installers want to avoid pulling new Cat5e/6 cabling. Paired with an Akuvox 2-wire door station such as the R20A-2 through an NS-2 converter module, it forms a complete video intercom upgrade that still allows Wi-Fi connectivity, remote monitoring and integration with Akuvox SmartPlus or a third-party SIP platform.

What's in the Box

• Akuvox C313W-2 indoor monitor (Silver)
• Wall mounting bracket and screws
• Quick installation guide

Frequently Asked Questions

Can the C313W-2 be installed over existing intercom wiring?
Yes. It is purpose-built for 2-wire retrofits, using an NS-2 module to run video, audio and power over the existing cable pair.

Does it work with non-Akuvox door stations?
It communicates via SIP 2.0, so it can generally interoperate with other SIP-compliant intercom or door phone hardware, though it is designed and tested primarily alongside Akuvox 2-wire door stations.

Can I manage it remotely?
Yes. The monitor supports remote configuration, firmware updates and system logs through a web management interface, as well as cloud-based management options.
