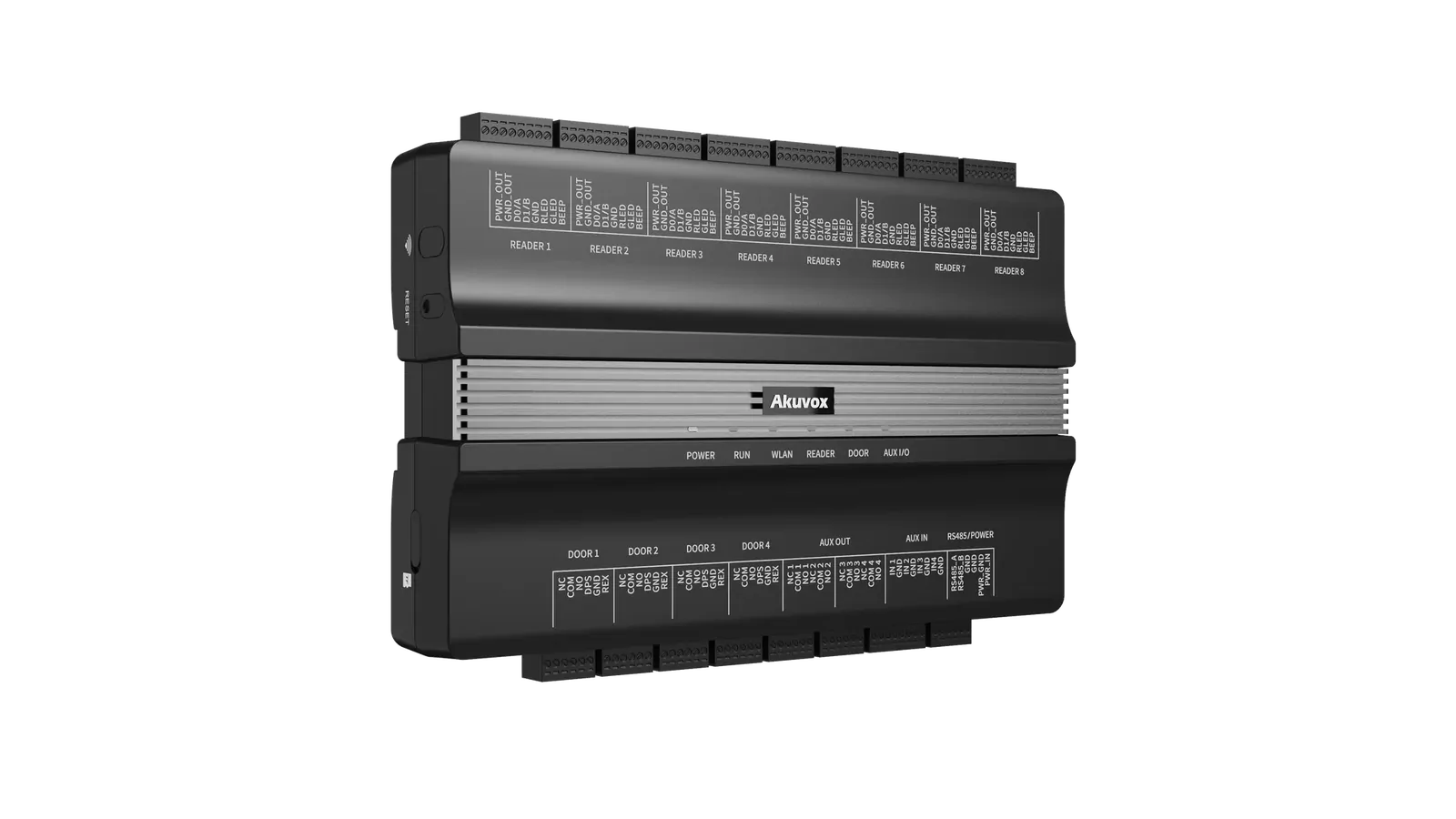

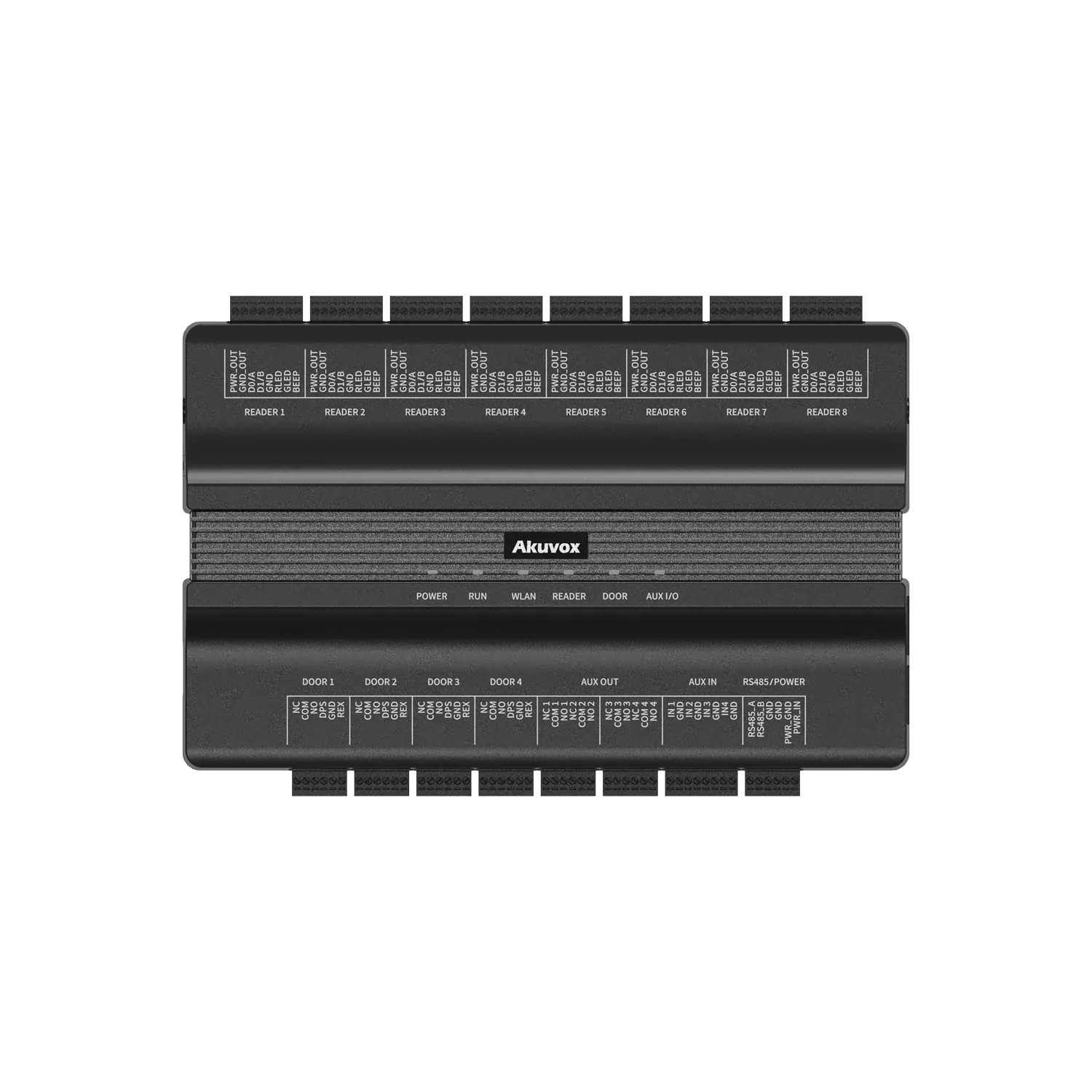

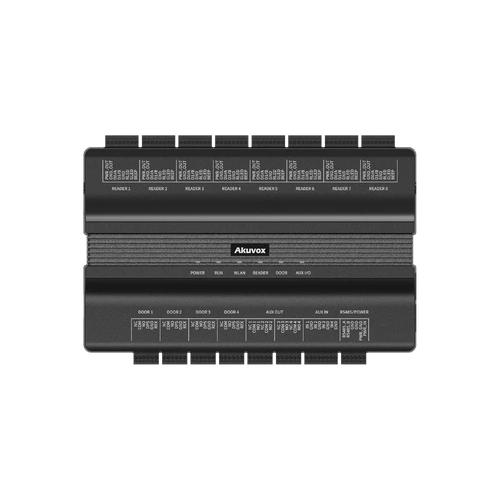

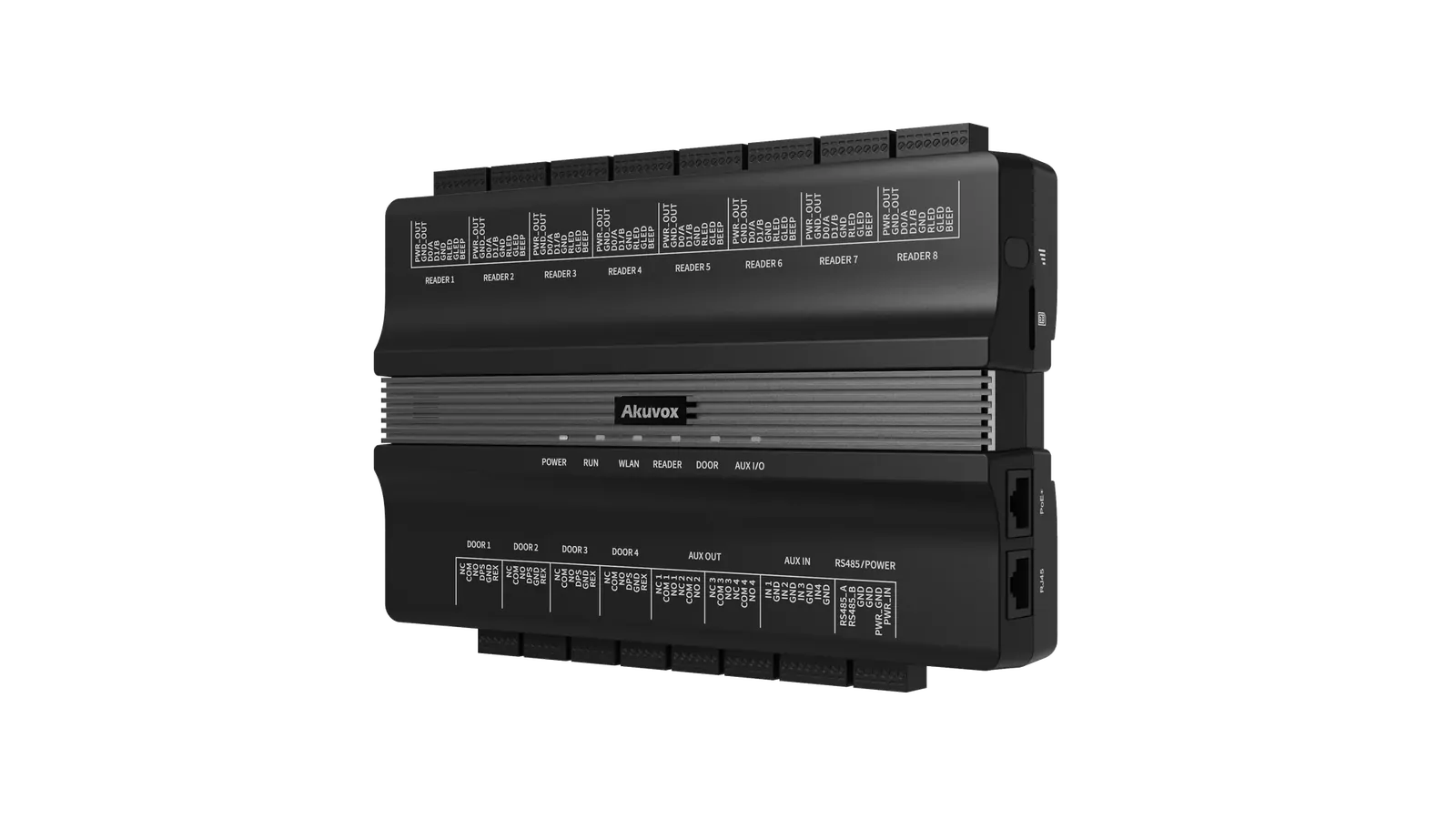

Akuvox A095 4-Door Cloud Access Controller

The Akuvox A095 is a Linux-based access control panel built to manage up to four doors from a single, centralised unit. Designed for offices, apartment buildings, schools and other multi-door facilities, it combines wired and wireless connectivity with cloud-based management so installers can deploy and administrators can operate the system with minimal on-site complexity. Eight built-in relays give the controller flexibility to handle standard door locks as well as auxiliary devices such as alarms or lighting, while support for Akuvox Cloud and ACMS makes remote monitoring and configuration straightforward.

Key Features

  • Four-door control from a single controller, using eight built-in relays (four dedicated door outputs and four auxiliary outputs) for extra devices.
  • Flexible connectivity including PoE+ Ethernet, Wi-Fi, and support for Wiegand 26/34/58 and RS485 readers with OSDP/OSDP v2 compatibility.
  • Cloud and ACMS integration for remote device management, provisioning, monitoring and configuration backup or restore.
  • Advanced security logic such as anti-passback, first-person-in, two-factor authentication and multi-door interlocking to prevent tailgating and unauthorised access sequencing.
  • Large-scale capacity for storing substantial numbers of users, credentials and access event logs, suiting mid-sized to larger commercial deployments.
  • Linux-based architecture for stable, fast processing of access events and system logs.
  • Web management portal with packet dump tools, firmware upgrade support and detailed system logging for easier diagnostics.
  • Wall-mount or DIN-rail installation, giving installers flexibility when fitting the unit into existing electrical enclosures or standalone locations.

Ideal Applications

The A095 suits any site that needs coordinated control over several entry points rather than standalone single-door readers. It is well suited to office buildings, apartment or condo complexes, schools, clinics and commercial premises where doors need to work together - for example, restricting access to a secure area until a main entrance closes, or ensuring a person cannot use the same card to bypass an anti-passback rule. Because it supports both card readers and network-based management, it works well for sites transitioning from legacy standalone panels to a centrally managed, cloud-connected access control platform.

What's in the Box

  • 1 x Akuvox A095 4-Door Access Controller
  • Power and relay terminal blocks
  • Mounting hardware
  • Quick start guide

Frequently Asked Questions

How many doors and readers can the A095 manage? It is designed to control up to four doors, and its relay and reader interfaces support multiple card readers per door for entry and exit monitoring.

Does the A095 need an internet connection to operate? The controller can run as a standalone system for local access decisions, but cloud connectivity via Akuvox Cloud or ACMS unlocks remote management, monitoring and reporting features.

What reader technologies are compatible? The A095 works with Wiegand readers (26/34/58-bit) and RS485-based readers using the OSDP or OSDP v2 protocol, giving flexibility when integrating third-party card readers.

Additional Resources

(A095)

SKU A095
Brand Akuvox
Shipping Weight 1.5000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.300m
Shipping Cubic 0.018000000m3
