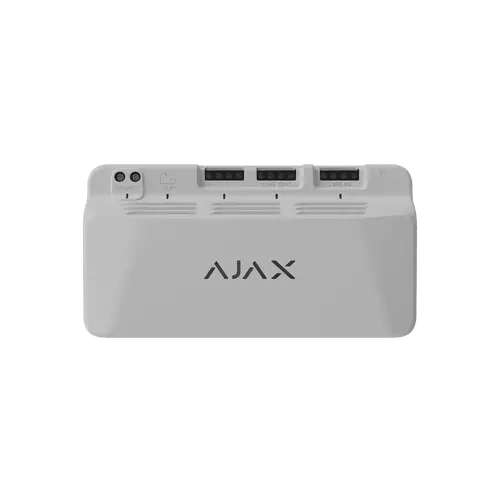

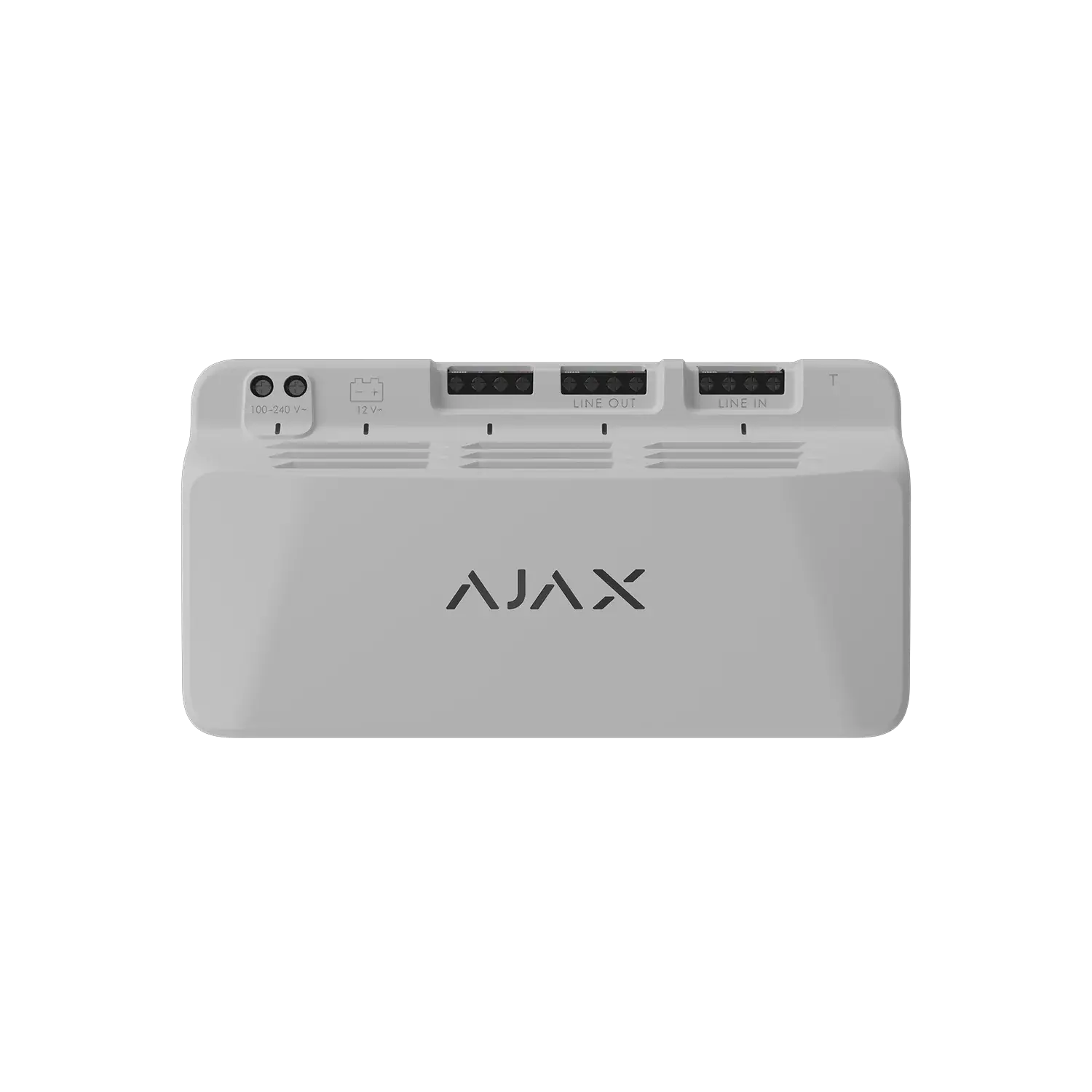

Ajax LineSupply (45W) Fibra White Wired Power Supply Module

Ajax LineSupply (45W) Fibra White Power Supply Module

The Ajax LineSupply (45W) Fibra is a dedicated power module built to keep large, wired Fibra-based security installations running reliably over long distances. Rather than relying solely on the hub to feed every connected device, LineSupply injects fresh power directly into the Fibra line, letting installers extend coverage across factories, farms, offices, shopping centres, and other sprawling sites without signal or power degradation.

Key Features

• 45W output power with one dedicated Fibra output line for connected devices
• Line extension of up to 2,000 metres added per module, using standard U/UTP cat.5 cabling
• Scalable design allowing up to 10 LineSupply modules to be chained on a single Fibra line for tens of kilometres of total coverage
• Power distribution of 30W for connected Fibra devices and 15W reserved for backup battery charging
• Backup battery support for a 12V, 7–18Ah battery (sold separately) to maintain power during outages
• Encrypted two-way communication with the Ajax hub using the secure Fibra wired protocol
• Built-in protection against short circuits and overvoltage to safeguard the connected line
• Tamper-ready connector for use with the tamper board supplied inside compatible Cases
• Flexible mounting via rails inside a compatible Case, with a 180-degree rotation option and passive ventilation to prevent overheating

Ideal for Large-Scale Wired Installations

This module suits integrators and installers deploying wired Ajax systems across expansive or multi-building sites where a single power run isn't enough. By placing a LineSupply module at strategic points along the Fibra line, technicians can maintain stable power and communication to detectors, keypads, sirens, and other Fibra devices spread across warehouses, underground car parks, agricultural facilities, and commercial complexes, all while keeping the installation centrally managed from the Ajax hub.

What's in the Box

• Ajax LineSupply (45W) Fibra module, white
• Power supply cable
• Battery connection cable
• Terminal adapters (2 pcs)
• Quick start guide

Frequently Asked Questions

Does the module include a backup battery?
No, the 12V battery (7–18Ah capacity) is not included and must be purchased separately.

Do I need a separate enclosure?
Yes, LineSupply is designed to mount inside a compatible Ajax Case (such as Case C or Case D), which is sold separately and also houses the tamper board.

How many modules can I use on one Fibra line?
Up to 10 LineSupply modules can be installed on a single Fibra line, allowing the total line length to reach tens of kilometres.
